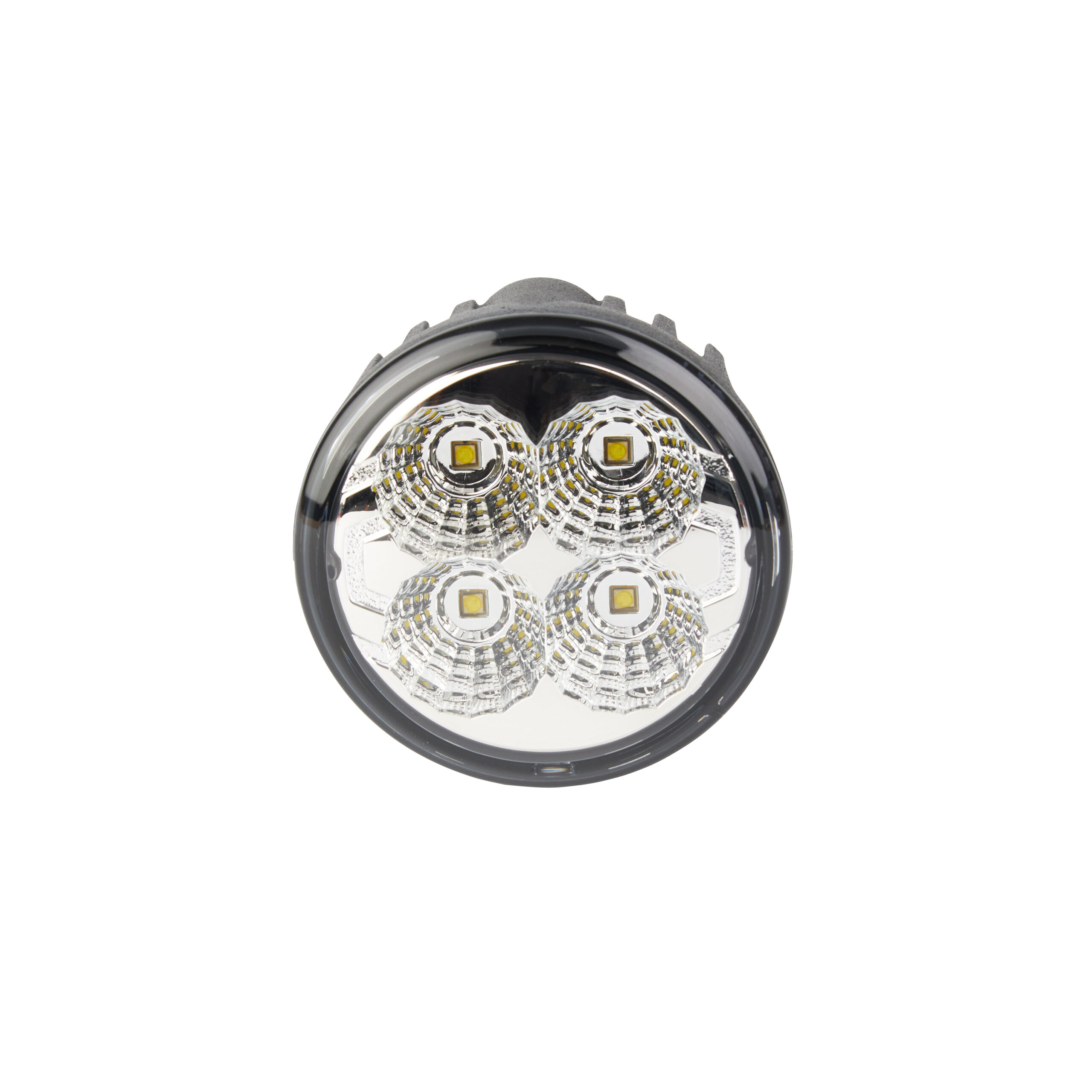

C2-3021 Front Mount Auxiliary LED Work Light

The C2-3021 is a front mount circular auxiliary LED work light designed to replace or enhance standard vehicle work lights. It features an aluminium housing and a polycarbonate lens, with four LEDs providing bright and uniform illumination with a Lumen Output of 1,800Lm. Operating within a voltage range of 9-33VDC, it consumes 12W of power, ensuring efficient energy usage. The recessed mounted, clear lens light is designed to withstand harsh conditions, with an IP68/IP69K rating for protection against dust, water, and chemicals, and it offers excellent shock resistance. Approved under ECE R10, ISO13766, and CISPR25 CLASS5, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light with an LED colour temperature of 5700k, improving visibility in low-light conditions. This work light is ideal for use in specialist, agricultural, and construction vehicles.

9 – 33V

Flood Beam

Flood Beam

1800 Lm

12W

IP66/67/68 Rated

IP68/IP69K

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Round
Beam Pattern Flood
Raw Lumen Output 1800 Lm
Effective Lumen Output 500 Lm
Colour Temperature 5700K
Voltage 9 - 33 VDC
Nominal Current at 0.8A at 12V ~ 0.4A at 24V
Power Consumtion 12 W
Ingress Protection Rating IP67 / IP69K
Shock Resistance 10G
Operating Temp Range -30°C...+85°C
Housing Material Aluminium
Lens Material Polycarbonate
Dimensions 85 x 107.3 x 107 mm
Mounting Style: Approvals Recessed
Termination
EMC ISO13766, CISPR CLASS3
Approvals ECE R10

Specifications subject to change without notice.
