Blind Plugs Polyamide

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Blind Plugs Polyamide

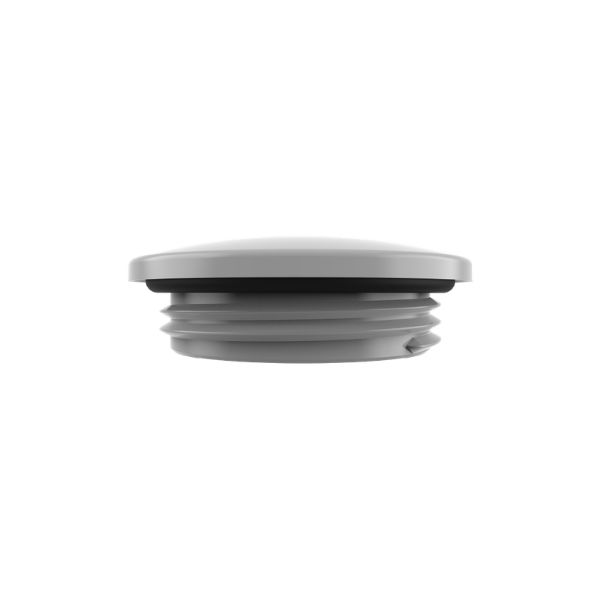

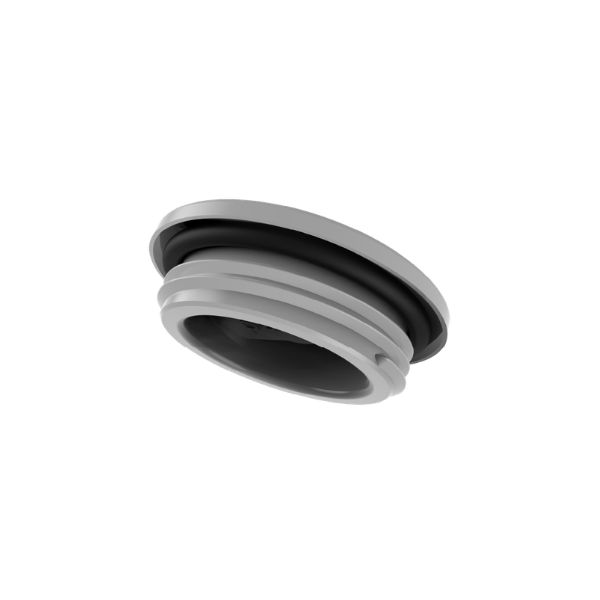

Blind plugs, also known as blanking plugs or cap plugs are used to seal cable entry and exit points in housings or enclosures where they are not in use. These Polyamide blind plugs give an IP68 sealing with an intermittent temperature rating of -40°C to +150°C and a standard operating temperature of -20°C to +100°C making them ideal in tough environments. Frequently used in lighting and industrial applications.
  • Seal housing holes when not in use / no cable gland is used, and suitable for indoor / outdoor use in industrial environments
  • Light Grey RAL7035, Grey RAL7001 and Black RAL9005
  • High protection against dust, moisture, and water ingress
  • Wide variety of Metric and PG thread sizes

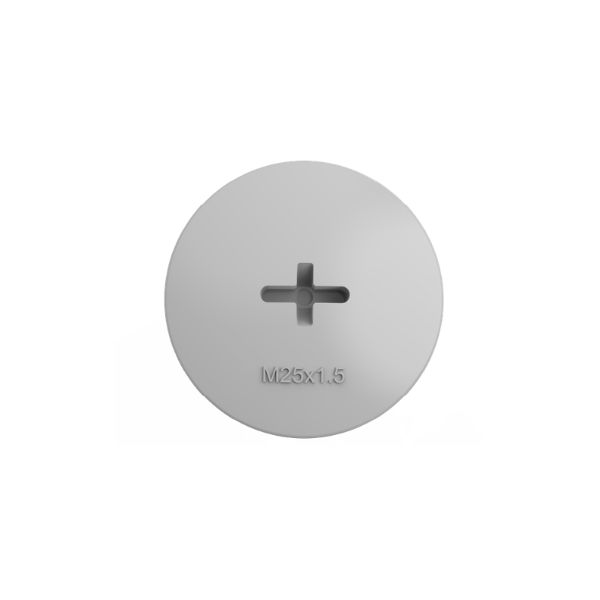

  • Durable design with quick and easy Phillips head for torquing

M12-M50 / PG7-PG36

IP66/67/68 Rated

IP 68 – 5 Bar, 30 min

Thread Length 6 – 15mm

Plug diameter up to 55mm

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Thread Size
Example Colour
Thread Length (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
BMBS-1S(Y)(+)(TL6) M12x1.5 Light Grey 6 15 3 Blind Plugs Polyamide
BMBS-1S(Y)(+)(TL10) M12x1.5 Light Grey 10 15 3 Blind Plugs Polyamide
BMBS-01(Y)(+)(TL6) M16x1.5 Grey 6 19.5 3.4 Blind Plugs Polyamide
BMBS-21(Y)(+)(TL10) M16x1.5 Black 10 19.5 3.4 Blind Plugs Polyamide
BMBS-02(Y)(+)(TL6) M20x1.5 Grey 6 25 3 Blind Plugs Polyamide
BMBS-12(Y)(+)(TL10) M20x1.5 Light Grey 10 25 3 Blind Plugs Polyamide
BMBS-13(Y)(+)(TL6) M25x1.5 Light Grey 6 30 4 Blind Plugs Polyamide
BMBS-03(Y)(+)(TL10) M25x1.5 Grey 10 30 4 Blind Plugs Polyamide
BMBS-03(Y)(+)(TL15) M25x1.5 Grey 15 30 4 Blind Plugs Polyamide
BMBS-24(Y)(+)(TL8) M32x1.5 Black 8 37 4 Blind Plugs Polyamide
BMBS-14(Y)(+)(TL10) M32x1.5 Light Grey 10 37 4 Blind Plugs Polyamide
BMBS-05(Y)(+)(TL8) M40x1.5 Grey 8 46 4.5 Blind Plugs Polyamide
BMBS-25(Y)(+)(TL10) M40x1.5 Black 10 46 4.5 Blind Plugs Polyamide
BMBS-26(Y)(+)(TL10) M50x1.5 Black 10 54.9 3.7 Blind Plugs Polyamide
BBS-21(Y)(+)(TL6) PG 7 Black 6 15 3 Blind Plugs Polyamide
BBS-01(Y)(+)(TL10) PG 7 Grey 10 15 3 Blind Plugs Polyamide
BBS-12(Y)(+)(TL6) PG 9 Light Grey 6 19.5 3 Blind Plugs Polyamide
BBS-22(Y)(+)(TL10) PG 9 Black 10 19.5 3 Blind Plugs Polyamide
BBS-13(Y)(+)(TL6) PG 11 Light Grey 6 22 3 Blind Plugs Polyamide
BBS-03(Y)(+)(TL10) PG 11 Grey 10 22 3 Blind Plugs Polyamide
BBS-24(Y)(+)(TL6) PG 13.5 Black 6 24.7 3 Blind Plugs Polyamide
BBS-14(Y)(+)(TL10) PG 13.5 Light Grey 10 24.7 3 Blind Plugs Polyamide
BBS-05(Y)(+)(TL6) PG 16 Grey 6 27 3.4 Blind Plugs Polyamide
BBS-25(Y)(+)(TL10) PG 16 Black 10 27 3.4 Blind Plugs Polyamide
BBS-06(Y)(+)(TL8) PG 21 Grey 8 33 4 Blind Plugs Polyamide
BBS-16(Y)(+)(TL10) PG 21 Light Grey 10 33 4 Blind Plugs Polyamide
BBS-27(Y)(+)(TL8) PG 29 Black 8 44 3.2 Blind Plugs Polyamide
BBS-07(Y)(+)(TL10) PG 29 Grey 10 44 3.2 Blind Plugs Polyamide
BBS-18(Y)(+)(TL10) PG 36 Light Grey 10 55 3.7 Blind Plugs Polyamide
IP Rating IP 68 - 5 Bar, 30 min,
Colour Light Grey, Grey and Black colour options
Thread Options M12-M50 / PG7-PG36
Body Material Polyamide 6 V2 acc. to UL 94
O-Ring Nitrile Butadiene Rubber
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Head Type Phillips

Specifications subject to change without notice.
