Battery Isolation A23-5D

Home - Switches & Indicators - Isolation Switches - Battery Isolation A23-5D

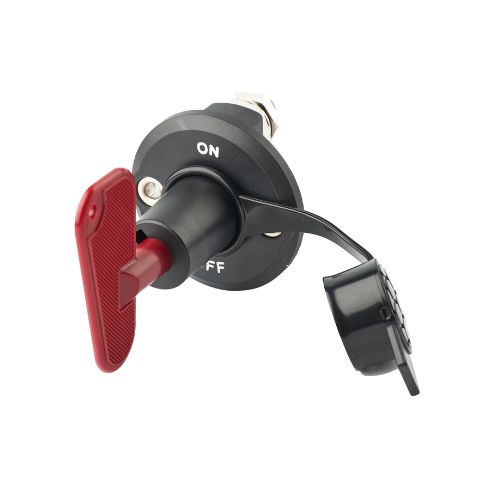

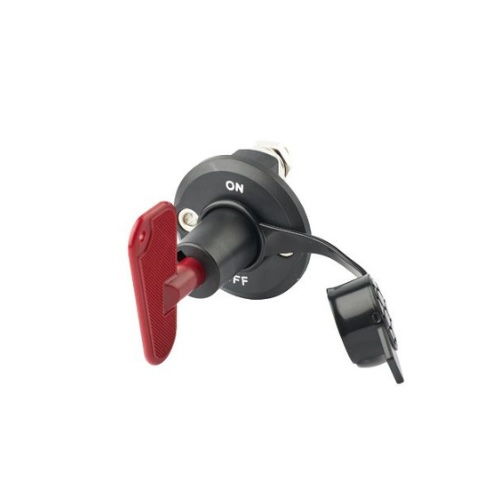

A UL94V-0 compliant battery Isolation switch with a continuous rating of 100A for panel mounting. A removable front key acts as a safety feature to help prevent incorrect and dangerous switching. Supplied with a dust cover for when the key is removed.
  • 100 Amp battery switch suitable for panel mount with dust cap
  • Protection level above the panel rated to IP54
  • Housing material compliant with UL94V-0
  • Quick and reliable power disconnect in case of emergency
  • Suitable for marine and vehicle battery systems to control ON/OFF functions

50 VDC

100A continuous

On / Off

IP66/67/68 Rated

IP54

UL94V-0

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
Max. Voltage Rating 50 VDC
Continuous Rating 100 Amps
Intermittent Rating 150A / 75A
Cranking Current (5 seconds) 500 Amps
Operation On / Off
Protection Rating IP54
Terminal Stud Size M6
Pitch 1.0 mm

Specifications subject to change without notice.
