ATEX Octans Non-Armoured

Home - Connectivity - Cable Glands, Junction Boxes & Vents - ATEX Octans Non-Armoured

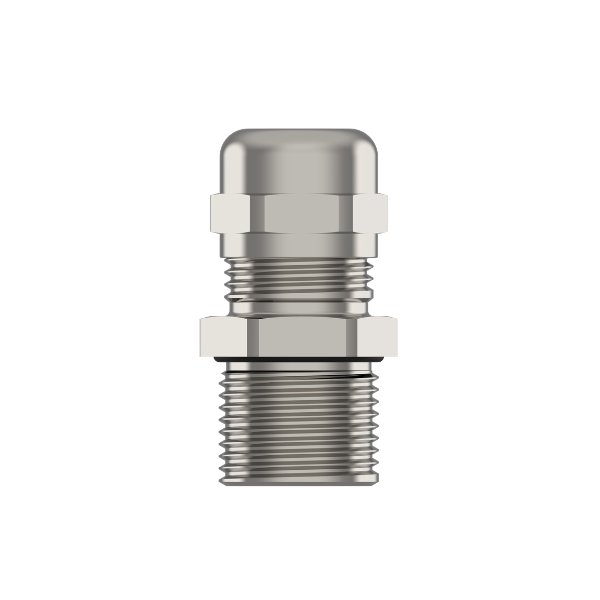

Metal cable glands for non-armoured cables in potentially explosive atmospheres

Cable Glands for Hazardous areas provided in a choice of materials and certified for EXe, EXd and EXt. Crafted from Brass, Nickel Plated Brass, Aluminium or Stainless Steel (316L), they all offer a robust, durable cable entry solution for round profile non-armoured cables. These ensure secure strain relief, IP66–IP68 5 Bar (30 mins) ingress protection, and reliable performance across harsh environments. The uniquely designed modular inserts ensure that the best seal can be achieved with the lowest tightening torque. Accessories include locknuts, serrated washers, gaskets, shrouds, earth tags and dome plugs.
  • IP66 / IP68 5 Bar (30mins)
  • Suitable for use in Group II, Gas group IIC, Zone 1&2 / Group III, Gas group IIIC, Zone 21 & 22

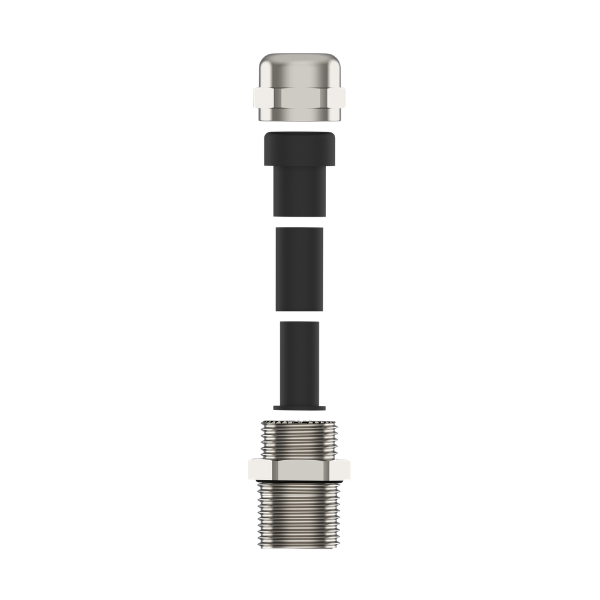

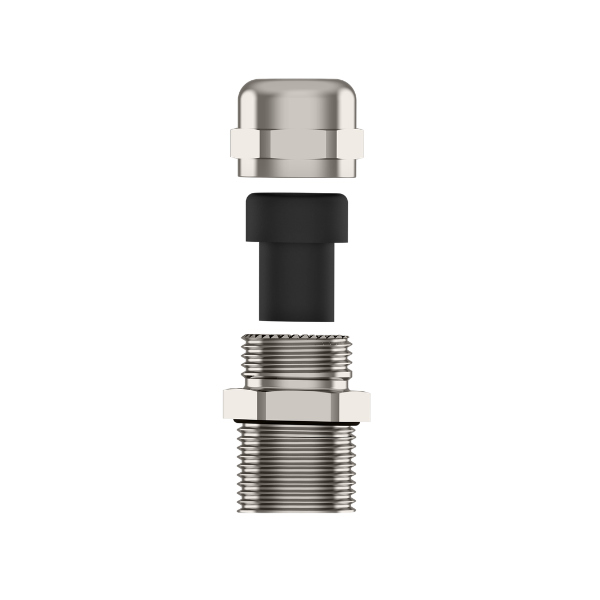

  • Uniquely designed to be used with either 1, 2 or 3 stage modular inserts
  • High protection against dust, moisture, and water ingress
  • High tensile strength and reliable strain relief
  • Durable design with quick and easy assembly
  • Wide cable clamping ranges for versatile applications
  • The gland provides a flameproof seal on the cable outer sheath which also provides ingress protection and cable retention.
  • Approvals include:- ATEX, IECEx, UL, DNV

M12 to M130

IP66/67/68 Rated

IP 68 – 5 Bar, 30 min / IP66

Cable OD Min. 3mm

Cable OD Max. 115mm

up to -60°C to +140°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

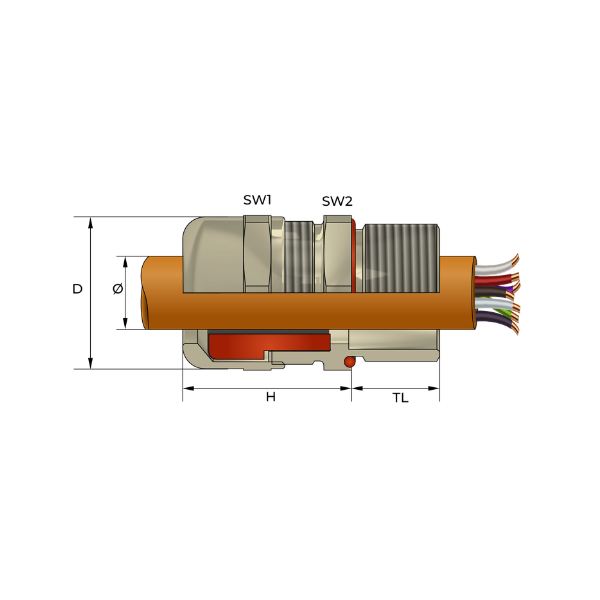

Size
Thread Length (mm)
Seal type
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
M12x1,5 EXe~9mm, EXd~16mm Double / Triple 3 8 20 / 22 20 / 22 22 / 24.5 29 / 33 Octans ATEX Glands
M16x1,5 EXe~9mm, EXd~16mm Double / Triple 3 12 20 / 22 20 / 22 22 / 24.5 29 / 33 Octans ATEX Glands
M20x1,5 EXe~9mm, EXd~16mm Double / Triple 3 16 20 / 22 / 28 22 / 28 24.5 / 31 29 / 32 Octans ATEX Glands
M25x1,5 EXe~9mm, EXd~16mm Triple 4 20 22 /28 / 35 28 / 35 31 / 39 29 / 32.5 / 36 Octans ATEX Glands
M32x1,5 EXe~9mm, EXd~16mm Triple 10 28 28 / 35 / 45 35 / 45 39 / 49.5 32.5 / 35 / 42.5 Octans ATEX Glands
M40x1,5 EXe~9mm, EXd~18mm Triple 14 34 35 / 45 / 50 45 / 50 49.5 / 56 35 / 42.5 / 45.5 Octans ATEX Glands
M50x1,5 EXe~9mm, EXd~18mm Triple 22 44 45 / 50 / 64 55 / 64 61 / 70 42.5 / 45 / 45.5 Octans ATEX Glands
M63x1,5 EXe~9mm, EXd~18mm Triple 26 56 50 / 64 / 80 68 / 75 75 / 89 45 / 45.5 / 54 Octans ATEX Glands
M75x1.5 EXe~9mm, EXd~20mm Triple 35 69 64 / 80 / 95 80 / 95 89 / 105 45 / 54 / 57 Octans ATEX Glands
M90 x 1.5 6EXe~9mm, EXd~20mm Triple 46 82 80 / 95 / 105 95 / 105 105 / 117 53.5 / 56 / 57 Octans ATEX Glands
M100x1.5 6EXe~9mm, EXd~20mm Triple 60 85 95 / 105 105 117 56 / 57 Octans ATEX Glands
M110x1.5 6EXe~9mm, EXd~20mm Triple 85 95 115 115 128 56 Octans ATEX Glands
M115x2 6EXe~9mm, EXd~24mm Triple 75 105 105 / 115 / 130 130 144 56 / 58 / 64.5 Octans ATEX Glands
M130x2 7.26EXe~9mm, EXd~24mm Triple 105 115 140 140 154 67.5 Octans ATEX Glands
Accessory Part numbers start :- EBUIN
EBUIN followed by Gland housing material B = Brass, BN = Nickel Plated Brass, X = Stainless Steel, A = Aluminium C = Chloroprene Seal, S = Silicone Seal (mandatory choice) Followed by optional accessories :- WC = Chloroprene Gasket / Washer, WS = Silicone Gasket / Washer, WF = Fiber Gasket / Washer P = Dome Plug WSR - Serrated Washer L = Lock Nut S = Shroud E = Earth Tag
IP Rating IP66 / IP 68 - 5 Bar, 30 min
Thread Options M12 - M130
Body Material Available in brass, nickel plated brass, stainless steel or aluminium
Seal CR (Chloroprene) or Silicone
Zone Suitability Group II and Group III
O-Ring CR (Chloroprene) or Silicone
Operating Temperature Up to -60 °C to +140 °C
Approvals ATEX, IECEx, UL, DNV
Enclosure type rating 4X
Accessories Lock nuts / Dome plugs / Earth Tags / Shrouds / Serrated Washers / Gaskets (Washers)

Specifications subject to change without notice.
