Polyamide glands for Exe / Exi applications

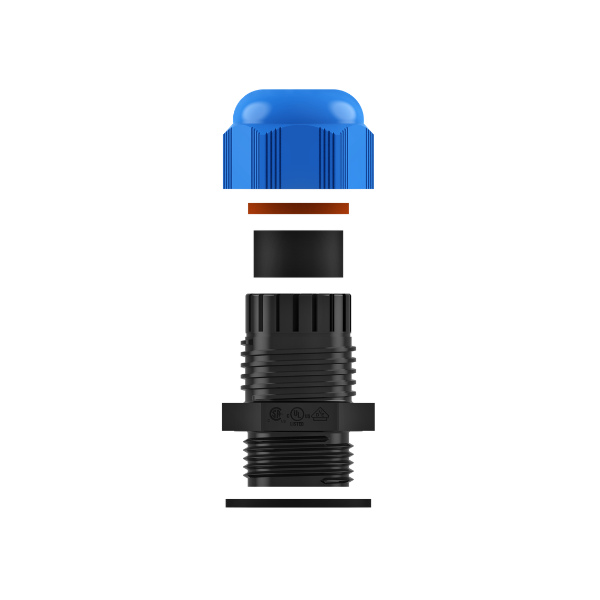

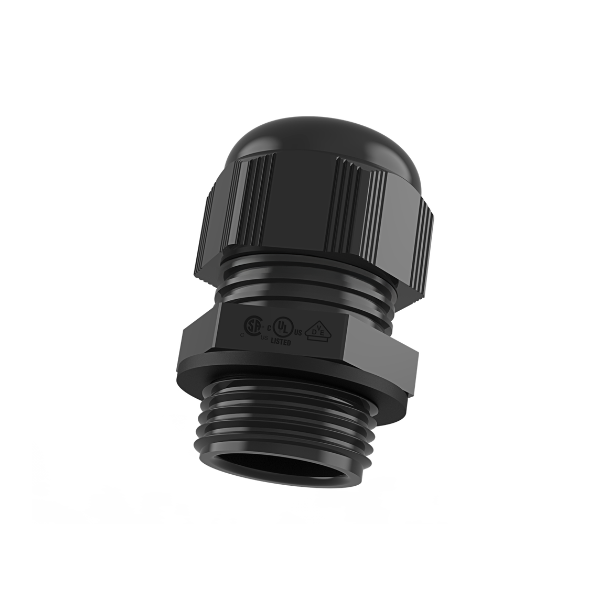

ATEX LYRA Cable Glands for use with non-armoured circular cables in hazardous areas. Crafted from high-quality Polyamide 6, they ensure secure strain relief, IP66 / IP68 (5 Bar, 30 min) sealing, and reliable performance where Gas and Dust present a potentially hazardous environment. Glands can support both EX-e and EX-i applications, by inserting an i after the BM in the part number to give an EXi version that is supplied with a blue cap. Accessories include Lock nuts, choice of silicone or Chloroprene gaskets, dome plugs, dust plugs and double seals.

  • Standard Metric (M20 x 1.5 to M63 x 1.5)
  • High quality strain relief and ingress protection offering a reliable performance in standard hazardous area applications
  • Suitable for use in group II, gas group IIC, Zones 1 and 2 ~ group III, gas group IIIC, Zones 21 and 22
  • High protection against dust, moisture, and water ingress
  • Can be used in intrinsically safe circuits (Blue Cap)
  • Durable design with quick and easy assembly
  • Wide cable clamping ranges for versatile applications
  • Accessories:- Dome plugs, non flanged locknuts, washers, dust plugs, double seals
  • Manufactured from PA 6 with a Silicone or Chloroprene (CR) seal
  • Approvals ~ ATEX, IECEx, DNV,
  • Impact test result 4J

M20 – M63

IP66/67/68 Rated

IP68 5Bar, 30min / IP66

Cable OD Min. 5mm

Cable OD Max. 44mm

EXe -40°C to +80°C, EXi -40°C to +70°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Size
Thread Length (mm)
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
M20x1,5 10 / 15 5 14 22 / 24 / 27 24 / 27 27 / 30.9 31.9 / 32.2 / 32.4 Lyra Exe / Exi Glands
M25x1,5 10 / 15 10 18 27 / 29 / 33 27 / 29 / 33 30.9 / 32.5 / 37.2 31.9 / 37.7 / 38.4 Lyra Exe / Exi Glands
M32x1,5 10 / 15 13 25 33 / 36 / 42 36 / 42 41 / 47.1 38.4 / 42.3 / 43.3 Lyra Exe / Exi Glands
M40x1,5 10 / 15 / 18 19 32 46 / 53 46 / 53 52.4 / 59.6 47.4 / 52.4 Lyra Exe / Exi Glands
M50x1,5 18 30 38 60 60 67.8 54.8 Lyra Exe / Exi Glands
M63x1,5 18 34 44 65 65 72.4 54.9 Lyra Exe / Exi Glands
IP Rating IP 68 (5 Bar, 30 min), IP 66
Thread Options M20 to M63
Colour EXe Black / EXi Blue cap
Body Material PA 6 (Polyamide 6)
Seal CR (Chloroprene) / Silicone
Operating Temperature EXe -40°C to +80 °C / EXi -40°C to +70 °C
Approvals ATEX, IECEx, DNV
Accessories Lock nuts / Dome plugs / Gaskets (Washers) / Dusk Plugs / Double Seals

Specifications subject to change without notice.
