Adjustable Interior LED Light Bar

Home - Lighting - Interior & Courtesy Lights - Adjustable Interior LED Light Bar

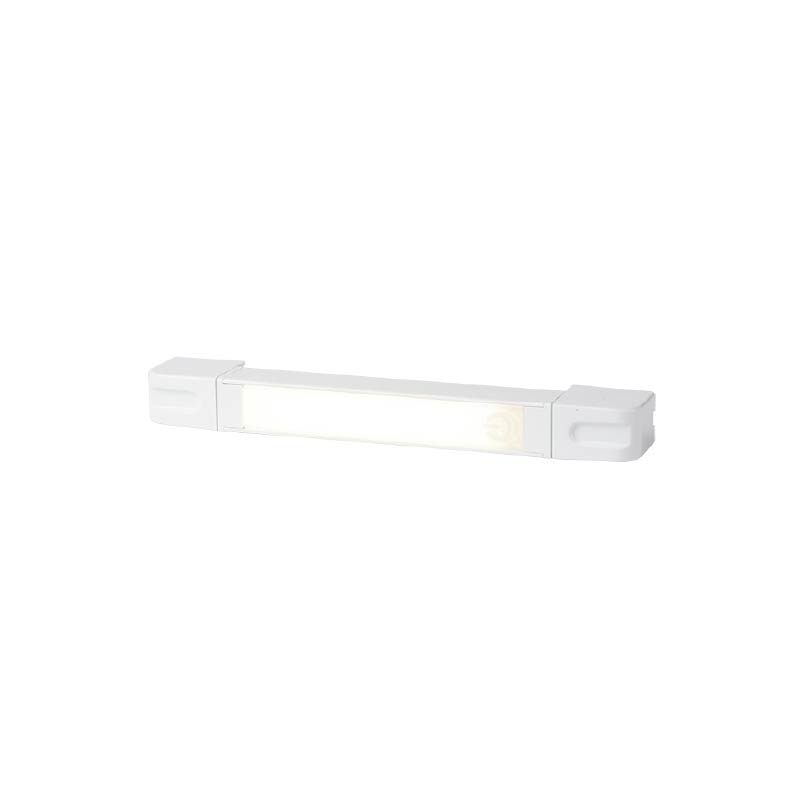

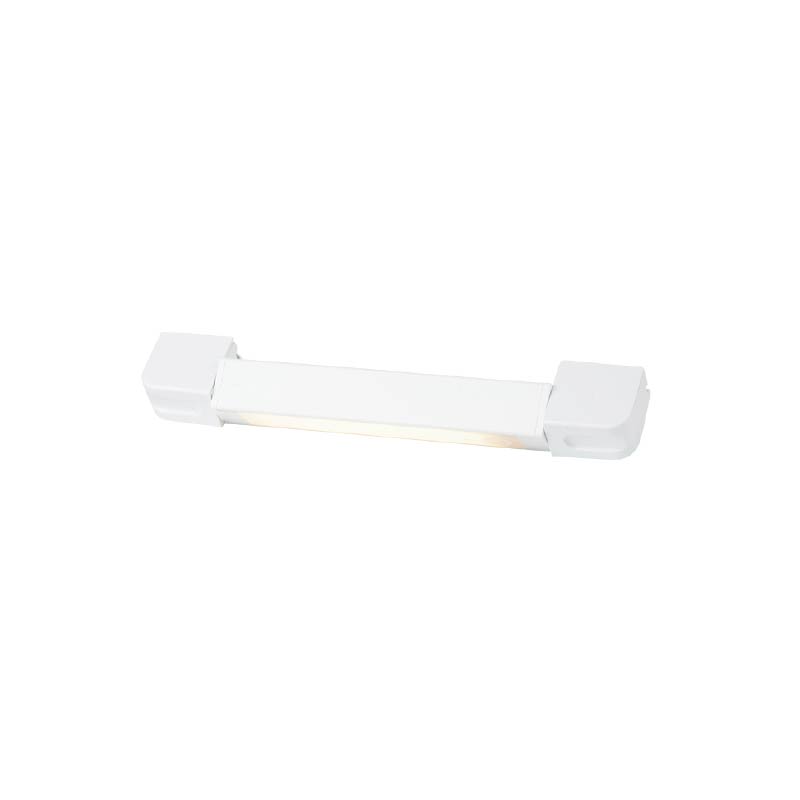

These adjustable LED light bars allow for very simple adjustment to focus the light where you need it. The C2-643 measures 303mm in length, the C2-645 measures 185mm. They feature high-performance LEDs emitting a cool -white light with a colour temperature of 5700K. Operating at 12-24VDC, they consume 2W of power and are designed with above 320° rotation for precise light positioning. The lamps operate in temperatures ranging from -30°C to +65°C and comply with EN60945 standards. A textured metal finish provides a high-end interior look, making it ideal for use in recreational vehicles, commercial vehicles, and marine applications.

12 – 24V

TBC Beam

145 Lm

2W

IP66/67/68 Rated

TBC

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Nominal Current
Power Consumption
Colour Temperature
Light Output
Lux at 50cm
Body Housing
Lens Material
Dimensions
Switch function
Degree of rotation
Approvals
C2-643 12~24VDC 0.16A at 12V, 0.09A at 24V 2W at 12V, 2.2W at 24V 5700K (white), 3500K (warm white) 145lm 195 LUX Aluminium Polycarbonate 303 x 20 x 45mm On / Off 325° EN60945
C2-645 12VDC 0.1A at 12V 1.2W 5700K (white), 4000K (warm white) 76lm 95 LUX Aluminium Polycarbonate 185 x 20 x 28mm On / Dimmer / Off 340° EN60945
Housing Shape Rectangular
Mounting Style Surface mount
Colour Temperature 4000K - 5700K
Effective Lumen Output 145 Lm
Max Illuminance @ 50cm 195 Lux
Switch Function On / Off
Voltage 12-24 VDC
Power Consumption 2 W
Ingress Protection Rating N/A
Operating Temp Range -30°C...+65°C
Housing Material Aluminium
Lens Material Polycarbonate
Termination
Dimensions 303 x 45 x 20 mm
EMC EN60945
Accessories 2 screws

Specifications subject to change without notice.
