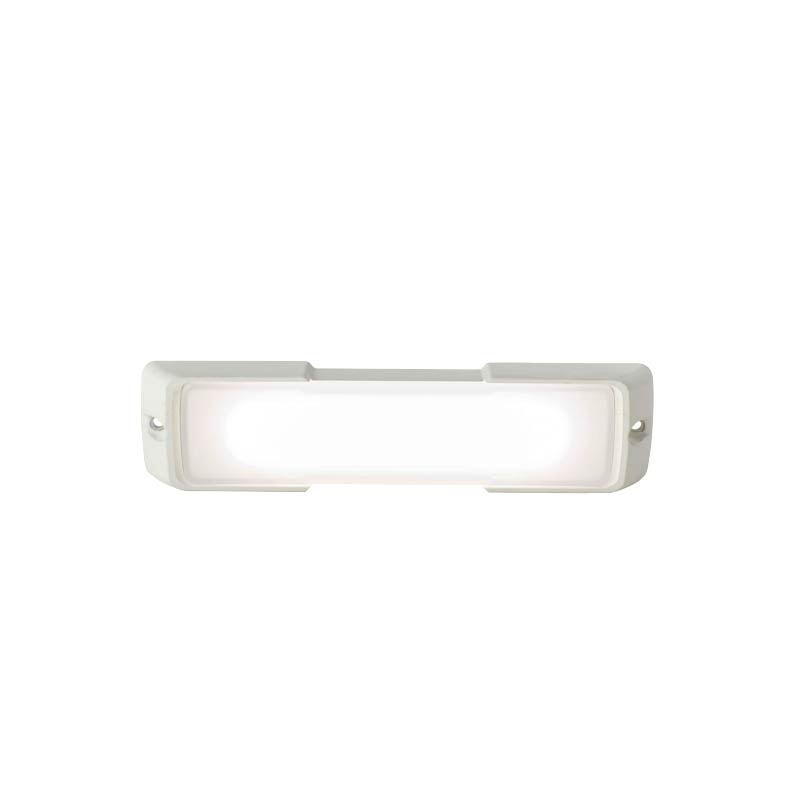

C2-7806 Marine Mini LED Deck Light

Home - Lighting - Search & Flood Lights - C2-7806 Marine Mini LED Deck Light

The C2-7806 is a powerful small bright light that can operate as a scene lamp and also a deck lamp. It is housed in an IP68 / IP69K fully sealed, UV resistant, impact resistant and shockproof housing ensuring it can survive the harshest conditions along with high temperature and high pressure washdowns. Simple to mount with 2 screws and it meets EN60945 certification, ensuring full compliance with marine electromagnetic compatibility standards. Available with White, Red and Blue LED. A 45° mounting bracket accessory is an available option.

9 – 33VDC

Flood Beam

Flood

580 lm

5.2W

IP66/67/68 Rated

IP68/IP69K

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Voltage
Power consumption
Colour Temperature
LED Colour
Lumen Output
Lux at 500mm
EMC
Operating Temperature
Optional Accessory
C2-7806A 9-33 VDC 5.2W 5700K White 580 Lumen 630 Lux ECE R10, EN60945 -30°C~+65°C 45° mounting Bracket
C2-7806B 9-33 VDC 4.2W 625nm Red N/A N/A ECE R10, EN60945 -30°C~+65°C 45° mounting Bracket
C2-7806C 9-33 VDC 3.4W 460nm Blue N/A N/A ECE R10, EN60945 -30°C~+65°C 45° mounting Bracket
Housing Shape Rectangular
Beam Pattern Flood
Lux at 50 cm 630 lux
Effective Lumen Output 580 lm
Colour Temperature 5700K
Voltage 9-33 VDC
Nominal Current at
Power Consumption: 5.2 W
Ingress Protection Rating IP68 / IP69K
Shock Resistance
Operating Temp Range -30°C...+65°C
Housing Material Thermally conductive plastic
Lens Material Polycarbonate
Dimensions 145.6 x 34.3 x 16 mm
Mounting Style two screws
Termination 290 mm cable
EMC EN60945
Approvals ISO13766, ECE R10, CISPR25 CLASS 3

Specifications subject to change without notice.
