Ventilation Plugs Plastic

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Ventilation Plugs Plastic

Enclosure ventilation and moisture control in Plastic

Breathable vent plugs manufactured in Plastic Nylon PA6 UL94-V2 material offer reliable pressure equalisation to prevent condensation inside sealed enclosures. By balancing internal and external pressure, they protect against moisture, corrosion, and short circuits, eliminating the need for costly heating or ventilation systems. Rated up to IP68 and featuring durable, breathable Acrylic copolymer on nylon-support membranes, these solutions enhance safety, extend service life, and reduce maintenance in harsh environments.

Use the Bimed VentCalculator to work out your required pressure compensation.
  • Designed to provide reliable pressure equalization inside sealed housings and enclosures
  • Prevents the formation of water condensation and protects against damage caused by pressure differences
  • Extends the service life of equipment by reducing stress on enclosure gaskets and seals
  • Prevents the formation of water condensation and protects against damage caused by pressure differences.
  • Provides effective protection against water, dust and contaminants while allowing controlled airflow
  • Manufactured from high-quality, durable materials for long service life
  • Suitable for both indoor and outdoor use in industrial environments
  • Available in types that provide ventilation performance from very low to very high levels, depending on application needs
  • Offered with different mounting options, including threaded connection or snap-in installation

M4 – M40

IP66/67/68 Rated

IP 68 / IP 67 (0.1 bar) / IP 69K (only for D type)

Air Flow 8 l/h to 2200 l/h

Water Intrusion Pressure 0.1 – 0.9 bar

-45°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

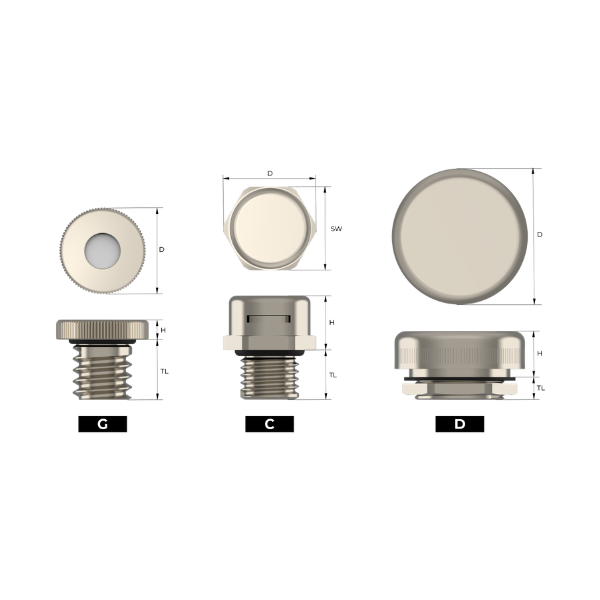

Thread size
Thread Length (mm)
Air Flow Rate (lh)
Water Intrusion Pressure (BAR)
Spanner Width (mm)
Overall Snap Length (mm)
Snap Diameter (mm)
Outer Diameter (mm)
Height (mm)
Design Type
Data sheet

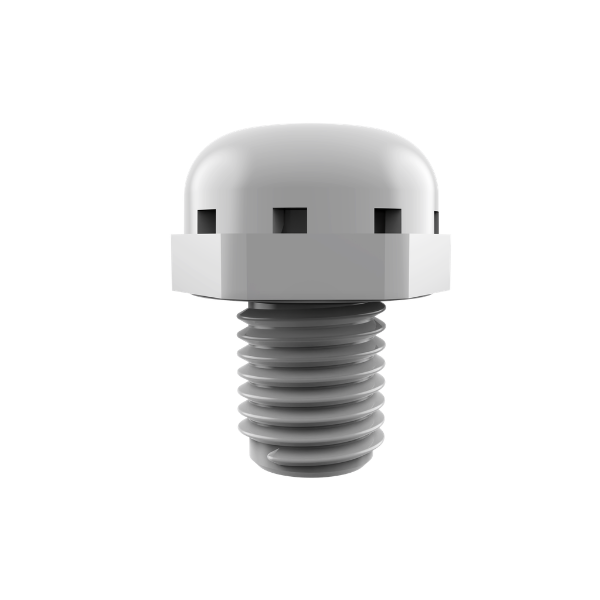

M6 x 0.75 10 8 0.5 10 N/A N/A 11 6.15 D Vent Plugs Plastic
M8 x 1 12 15 0.5 12 N/A N/A 13 6.15 D Vent Plugs Plastic
M12 x 1 6.6 16 - 300 0.5, 0.2, 0.1 17 N/A N/A 18.5 7.6 A Vent Plugs Plastic

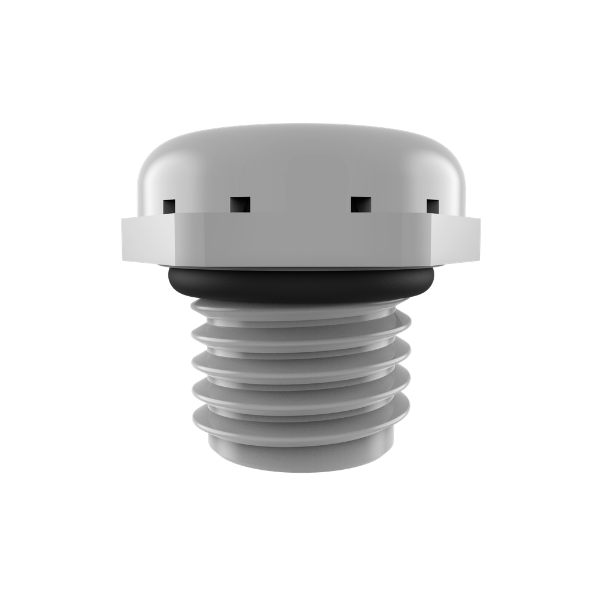

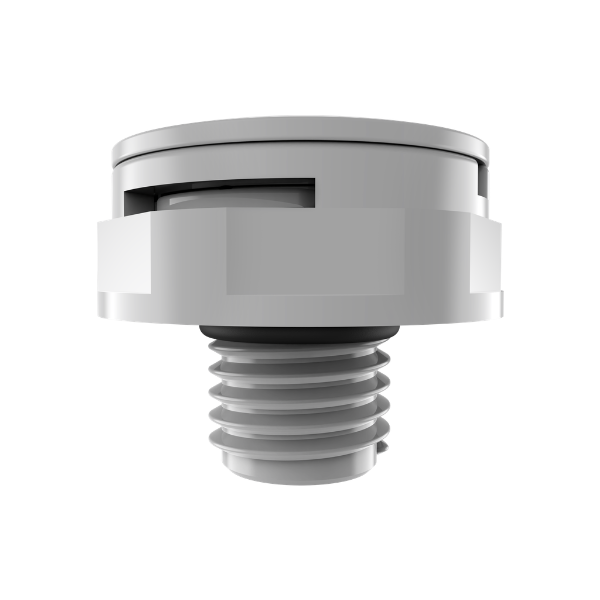

M12 x 1.5 6 - 10 16 - 750 0.9, 0.5, 0.2, 0.1 17 / 24 N/A N/A 18.5 - 26 5.65 - 11.7 A, D, E Vent Plugs Plastic
M16 x 1.5 10 42 -750 0.9, 0.5, 0.2, 0.1 24 N/A N/A 26 11.7 E Vent Plugs Plastic
M20 x 1.5 10 42 -750 0.9, 0.5, 0.2, 0.1 24 N/A N/A 26 11.7 E Vent Plugs Plastic

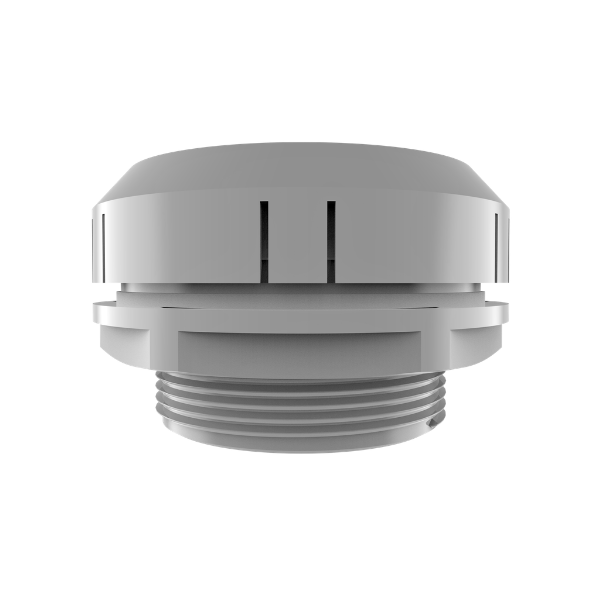

M40 x 1.5 18 120 - 2200 0.9, 0.5, 0.2, 0.1 Knurled Head N/A N/A 55.3 15.5 F Vent Plugs Plastic

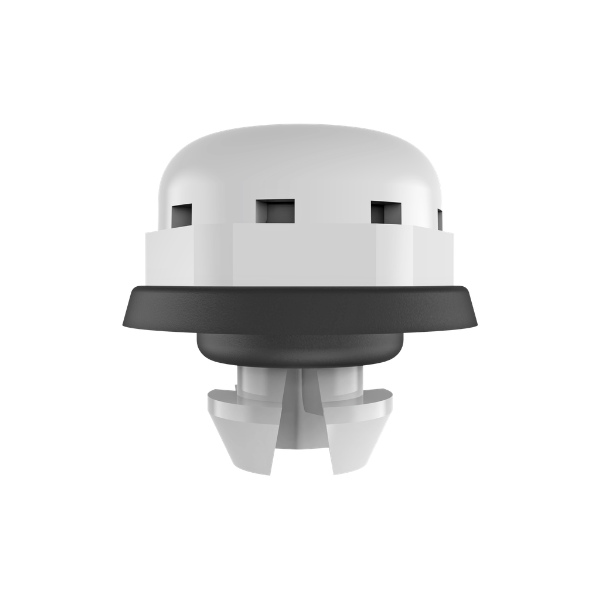

Snapfit 5.5 N/A 15 - 300 0.9, 0.5, 0.2, 0.1 J type only 12, 17 5.9 5.4 15 - 18.5 7.05 - 10.9 B, J Vent Plugs Plastic
Thread Metric M6 - M40
IP Rating IP68, IP67 IP69K (only for D type)
Material Polyamide 6 V2 acc. to UL 94
Vent Membrane Material Acrylic Co-Polymer on Nylon-support
O-ring Material Nitrile Butadiene Rubber (NBR)
Temperature Rating Permanent -40°C to +100°C / Intermittent -45°C to +150°C
Accessories Locknuts, Gaskets

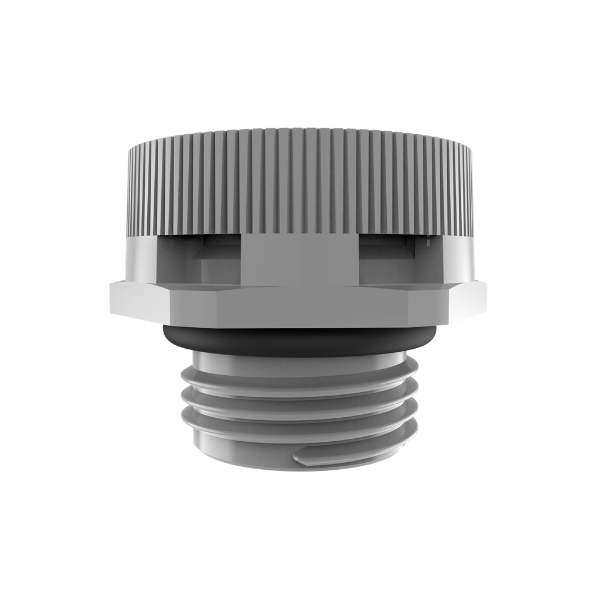

Head variants Knurled, Hexagon

Specifications subject to change without notice.
