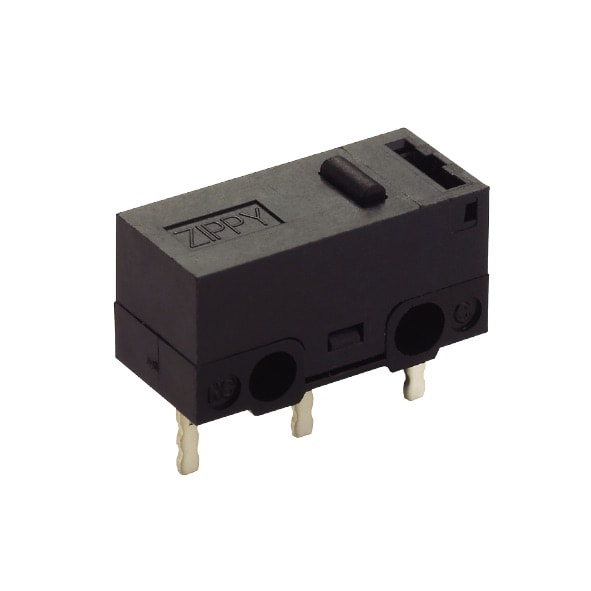

Rugged sub-subminiature switch with blade spring mechanism. Intended for demanding applications where frequent use and high life expectancy are key criteria. Despite its small size, the DF3 series can switch up to 5A 125/250V AC. A special version, designed for use in gaming mice and similar applications able to withstand min. 20 million mechanical cycles, is available on request. A huge variety of mounting options make the DF3 the ideal choice when design and space constraints are a factor. Certified according to both ENEC and UL standards, so suitable for worldwide use.
- Rugged sub-subminiature switch with blade spring mechanism
- Electrical rating up to 5A 125/250V AC
- Market-leading 5A rating available for demanding applications
- Wide range of terminals and actuator options
- Various mounting / fixing post options including M3 screw
- Operating temperature range -40 to 85 °C
- Mechanical service life min. 5 million operations
- ENEC and UL certified
The DF3 series is a premium switch, designed for high service life and high current applications. For a more economical switch designed for more typical applications see DF series.
The table below lists a small selection of the available standard options. If you cannot find what you are looking for please contact us.
- Standard Parts
- Specifications
|
Part Number
|
Electrical Rating
|
Configuration
|
Operating Force (max.)
|
Terminal Type & Mounting
|
Actuator Type
|
Actuator Length
|
Datasheet
|
|---|---|---|---|---|---|---|---|
| DF3-03L0-01E0B0-Z | 3A 125/250V AC | S.P.D.T. | 30 gf | Solder | Straight lever | 13.00 mm | |
| DF3-03S0-01P0B0-Z | 3A 125/250V AC | S.P.D.T. | 56 gf | PCB | Straight lever | 13.00 mm | |
| DF3-03S0-02P0B0-Z | 3A 125/250V AC | S.P.D.T. | 43 gf | PCB | Sim. roller lever | 15.00 mm | |
| DF3-05L0-01D0B0-Z | 5A 125/250V AC | S.P.D.T. | 30 gf | PCB RA-right | Straight lever | 13.00 mm | |
| DF3-05S0-00P0B0-Z | 5A 125/250V AC | S.P.D.T. | 150 gf | PCB | Button | ||
| DF3-05S0-01C0C2-0A-Z | 5A 125/250V AC | S.P.D.T. | 56 gf | PCB RA-left w/ fixing posts (L) | Straight lever | 13.00 mm | |
| DF3-05S0-01D0C1-0A-Z | 5A 125/250V AC | S.P.D.T. | 56 gf | PCB RA-right w/ fixing posts (R) | Straight lever | 13.00 mm | |
| DF3-05S0-02P0B0-Z | 5A 125/250V AC | S.P.D.T. | 43 gf | PCB | Sim. roller lever | 15.00 mm | |
| DF3-05S0-03P0B0-Z | 5A 125/250V AC | S.P.D.T. | 57 gf | PCB | Straight lever | 10.00 mm |
|
Characteristic
|
DF3 series
|
|---|---|
| Electrical Rating | 3A 125/250V AC, 5A 125/250V AC, 3A 24V DC |
| Circuitry | S.P.D.T., S.P.S.T. - N.O., S.P.S.T. - N.C. |
| Ingress Protection | IP40 |
| Termination & Mounting | Solder, PCB, M3 Screw Mounting |
| Agency Approvals | ENEC, UL |
| Operating Force | 80 gf, 150 gf with button actuator, model dependent |
| Operating Temperature | -40 to +85°C |
| Electrical Service Life | min. 10000 operations |
| Mechanical Service Life | min. 5000000 operations |
| Contact Resistance (initial) | max. 100 mOhm |
| Insulation resistance (initial) | min. 100 MOhm (500V DC for one minute) |
| Housing Material | PBT |
| Button Material | PBT |
| Terminal Material | Brass |
Specifications subject to change without notice.
