RJ45 Cable Glands Metal

Home - Connectivity - Cable Glands, Junction Boxes & Vents - RJ45 Cable Glands Metal

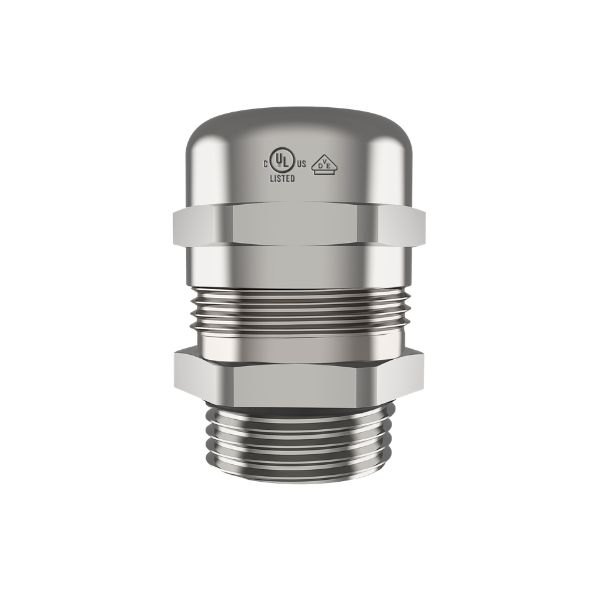

RJ45 Metal Cable Glands provide a highly robust and durable cable entry solution for industrial and automation applications. Crafted from high-quality Nickel Plated Brass, they ensure secure strain relief, IP66 / IP68 (5 Bar, 30 min) sealing, and very reliable performance across harsh environments. Ideal for machinery, control panels, networking, telecoms, surveillance systems and outdoor installations requiring long-term electrical and mechanical integrity.

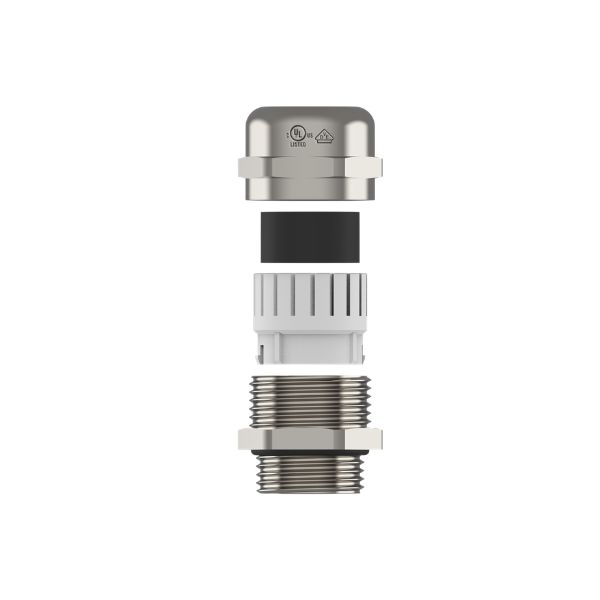

  • Enables the installation of cables with RJ45 connectors thanks to its slotted rubber seal
  • Standard Metric M20 to M40
  • Suitable for both indoor and outdoor use in industrial environments
  • High protection against dust, moisture, and water ingress
  • High tensile strength and reliable strain relief
  • Durable design with quick and easy assembly
  • Compatible with multi-hole sealing inserts
  • Manufactured from Nickel Plated Brass

M20 – M40

IP66/67/68 Rated

IP66 / IP68

Cable OD Min. 3mm

Cable OD Max. 9mm

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Size
Thread Length (mm)
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
M20x1,5 6 / 8 / 12 3 9 24 24 26.5 30 RJ45 Glands Metal
M25x1,5 8 / 10 / 12 3 9 24 30 30 / 33 30 / 35 RJ45 Glands Metal
M32x1.5 9 3 9 30 34 37.5 35 RJ45 Glands Metal
M40x1.5 9 / 15 5 8 43 43 48.5 45.5 RJ45 Glands Metal
IP Rating IP 68 (5 Bar, 30 min), IP 66
Thread Options Metric M20 to M40
Body Material Nickel Plated Brass
Seal CR (Chloroprene)
O-Ring Material Nitrile Butadiene Rubber
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Type Rating 4X
Approvals UL
Accessories Lock nuts / Multi-hole seals / Gaskets (Washers)

Specifications subject to change without notice.
