R13-309 SPST Illuminated Rocker switch

Home - Switches & Indicators - Automotive - R13-309 SPST Illuminated Rocker switch

The R13-309 Control panel Rocker switches feature a number of styles and offer Red, Amber, Green, Blue and White illumination options. This durable switch is simple to snap into the panel, it can be provided without illumination, has a Polycarbonate actuator and ingress protection rating to IP .
  • Versatile and durable panel mount rocker switch
  • Designed for high current applications up to 21A 14V DC
  • Panel cut-out approx. 20.2 mm
  • 4.8 x 0.8mm Quick connect
  • Contact resistance 50m Ohm max
  • Insulation resistance DC 500V 100M Ohm min
  • Operating temperature range up to -25 to 85 °C
  • Dielectric strength AC1500V 1 minute
  • ENEC and UL certified

16A 14V DC

20.2 mm cut-out

-25°C up to to 85°C

IP66/67/68 Rated

IP40

Industry - Markets at Lucid Electronics

Ideal for industrial or automotive

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
IP Rating
Terminal Type
Actuator Type
Illumination
Datasheet
R13-309A1-02-BB-172 21A 14VDC, 10A 28VDC, 2P SPST ON-OFF IP40 4.8 x 0.8mm Marked Rocker No illumination
R13-309A1-02-BG-1GL-1 21A 14VDC 3P SPST ON-OFF IP40 4.8 x 0.8mm Black Rocker Green Spot illumination

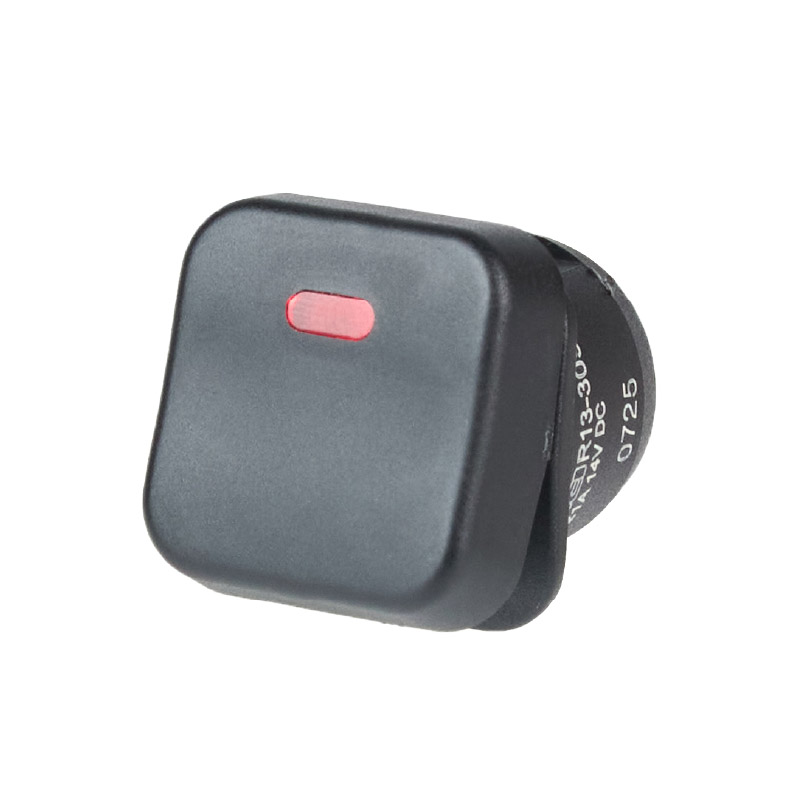

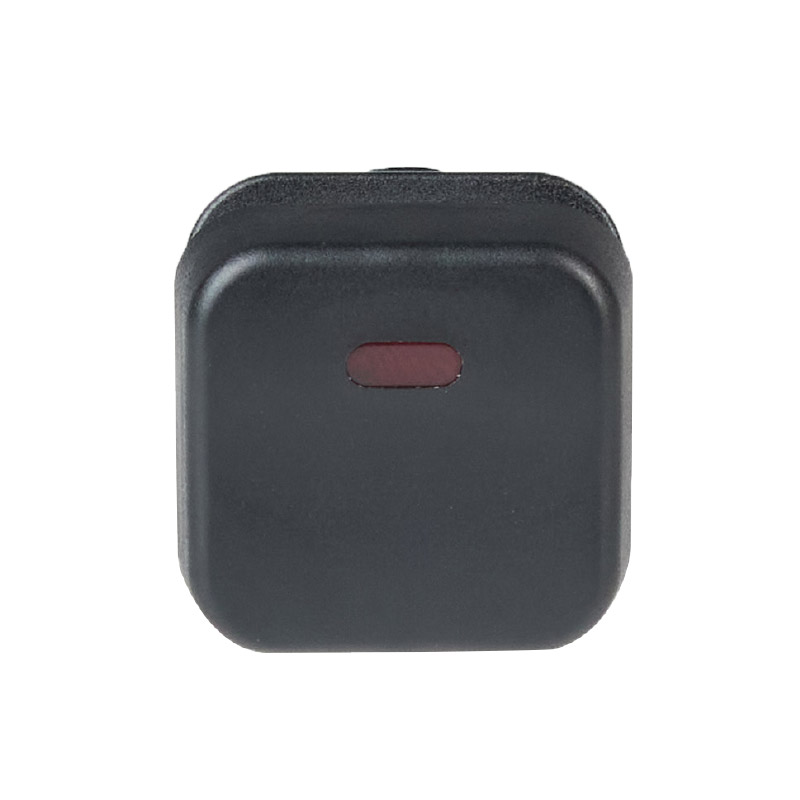

R13-309A1-02-BR-1RL 21A 14VDC 3P SPST ON-OFF IP40 4.8 x 0.8mm Black Rocker Red Spot illumination

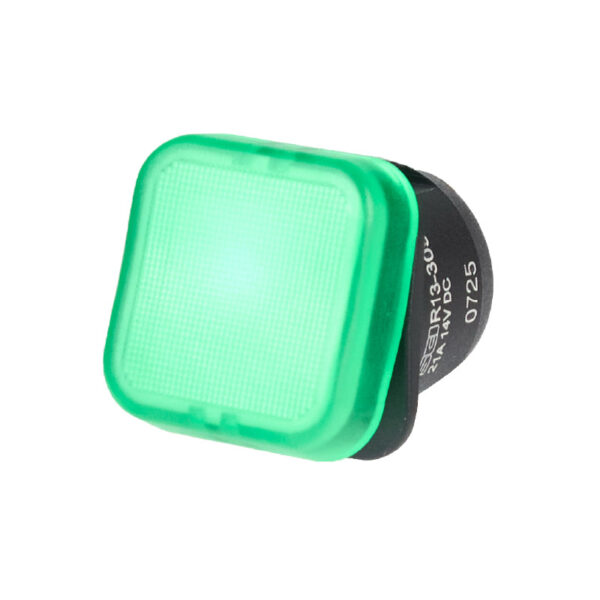

R13-309A2-02-BBG-1GL-1 21A 14VDC 3P SPST ON-OFF IP40 4.8 x 0.8mm Black Rocker Green Bar Illumination
R13-309A2-02-BBR-1RL-1 21A 14VDC 3P SPST ON-OFF IP40 4.8 x 0.8mm Black Rocker Red Bar Illumination

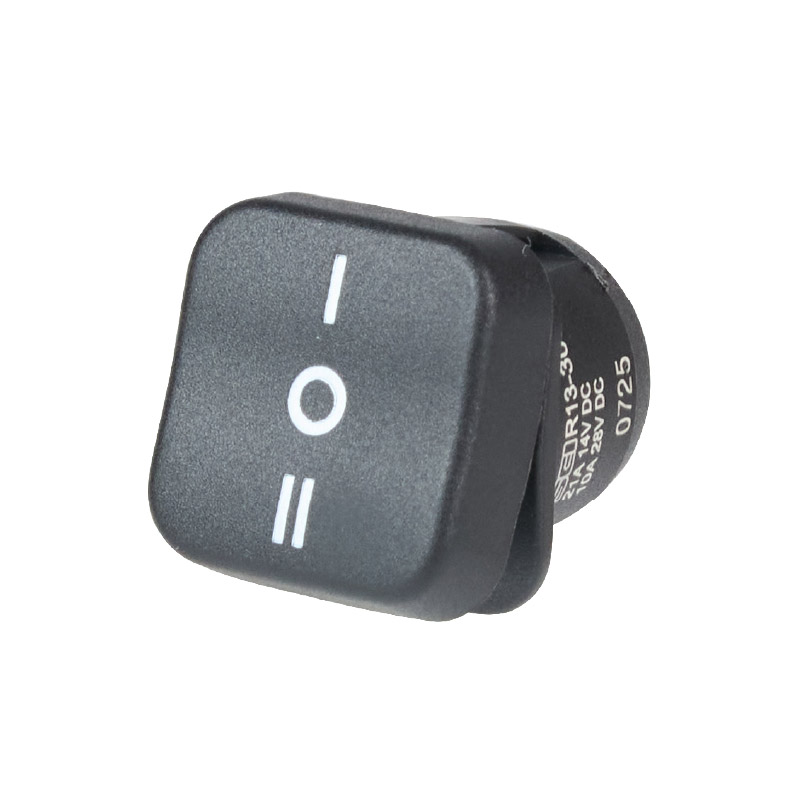

R13-309A1-02-BB-177 21A 14VDC 10A 24VDC 3P SPST ON-OFF-ON IP40 4.8 x 0.8mm Marked Black Rocker No illumination
Electrical Rating up to 21A 14V DC
Poles / Throws 2P & 3P, SPST & SPDT
Function ON-OFF, (ON)-OFF, ON-(OFF), ON-(ON), ON-ON, ON-OFF-ON, (ON)-OFF-(ON), ON-OFF-(ON)
Illumination Red, Amber, Green, Blue and White LED
Terminals 4.8 x 0.8mm
IP Rating IP40
Operating Temperature Range -25°C up to to 85°C
Approvals ENEC and UL
Panel cut-out 20.2 mm
Terminals Silver Plated Copper

Specifications subject to change without notice.
