R13-308 Control Panel Illuminated Rocker switch

Home - Switches & Indicators - Automotive - R13-308 Control Panel Illuminated Rocker switch

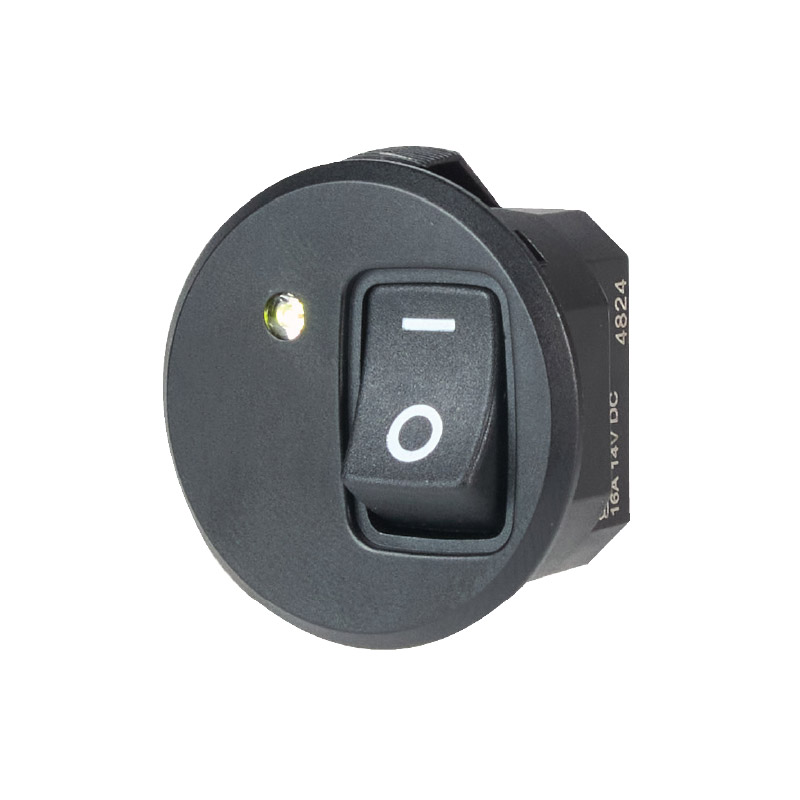

The R13-308 Snap in, Control panel Rocker switches feature SPST and SPDT functions in 2 and 3 Positions. Supplied as an ON-OFF-ON, ON-ON or ON-OFF switch this durable switch has a choice of a single window, double window, in the form of a small spot illumination. Available with Red, Amber, Green, Blue and White LED options or they can be available without illumination. The rocker actuator made from Nylon 66 (UL94V-2) can be marked to suit the application.
  • Red, Green, Amber, Blue and White illumination options
  • Designed for high current applications up to 16A 14V DC
  • Panel cut-out approx. 22.2 x 22.2 mm
  • 4.8 x 0.8mm Quick connect
  • Contact resistance 50m Ohm max
  • Insulation resistance DC 500V 100M Ohm min
  • Operating temperature range up to -25 to 85 °C
  • Dielectric strength AC1500V 1 minute
  • ENEC and UL certified

16A 14V DC

22.2 x 22.2 mm cut-out

-25°C up to to 85°C

SPST, SPDT

Industry - Markets at Lucid Electronics

 industrial or automotive

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
IP Rating
Terminal Type
Actuator Type
Illumination
Datasheet
R13-308A1-02-BB-1GRC73-1 16A 14VDC 3P SPST ON-OFF IP40 4.8 x 0.8mm Marked Rocker Actuator Single LED Window Green ON, Red OFF
R13-308A1-02-BB-173-1 16A 14VDC, 6A 24VDC 2P SPST ON-OFF IP40 4.8 x 0.8mm Marked Rocker Actuator No Illumination

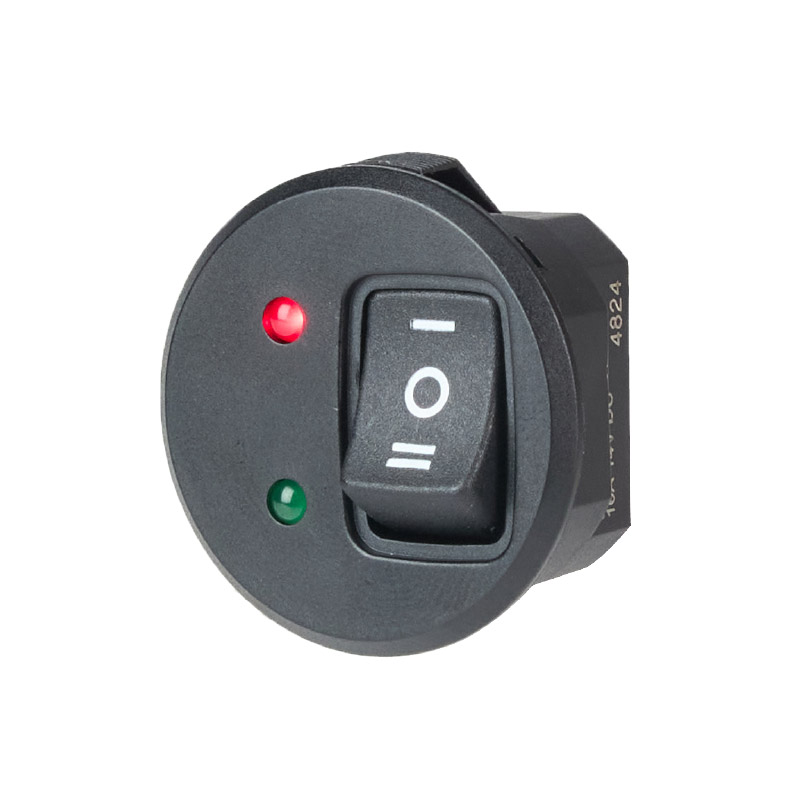

R13-308D1-02-BB-1RGB76-1 16A 14VDC 4P SPDT ON-OFF-ON IP40 4.8 x 0.8mm Marked Rocker Actuator Double LED window RED (1) / GREEN (2)
R13-308D1-02-BB-176 16A 14VDC, 6A 24VDC 3P SPDT ON-OFF-ON IP40 4.8 x 0.8mm Marked Rocker Actuator No Illumination
Electrical Rating up to 16A 14V DC
Poles / Throws 3P SPDT
Function On-Off-On, On-Off, On-On
Illumination Red, Amber, Green, Blue and White LED
Terminals 4.8 x 0.8mm
Panel cut-out 22.2 x 22.2mm
Operating Temperature Range -25°C up to to 85°C
Approvals UL, ENEC

Specifications subject to change without notice.
