R13-305 Configurable IP67 illuminated Rocker switch

Home - Switches & Indicators - Automotive - R13-305 Configurable IP67 illuminated Rocker switch

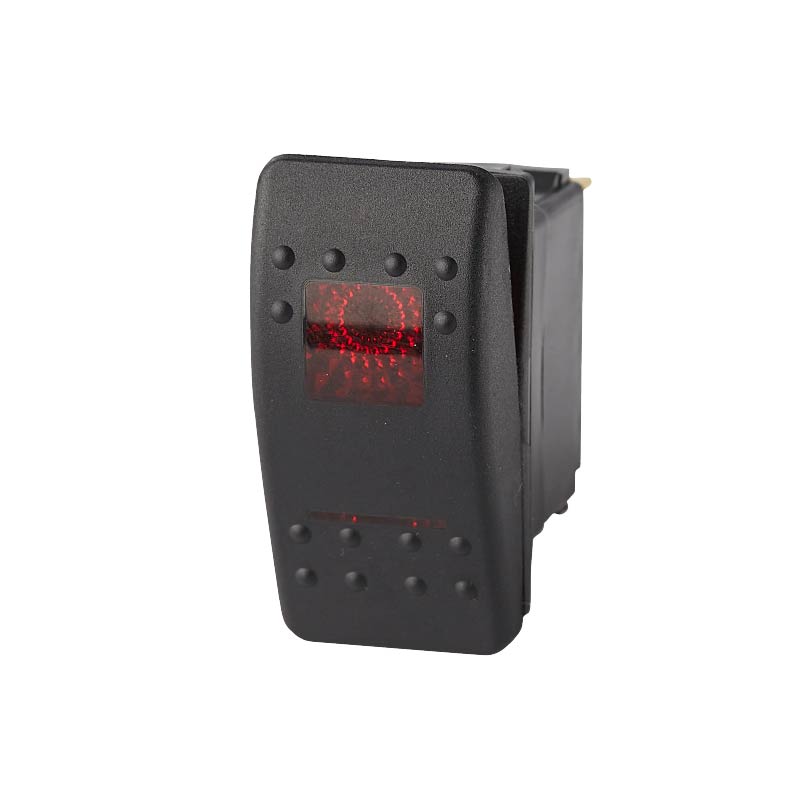

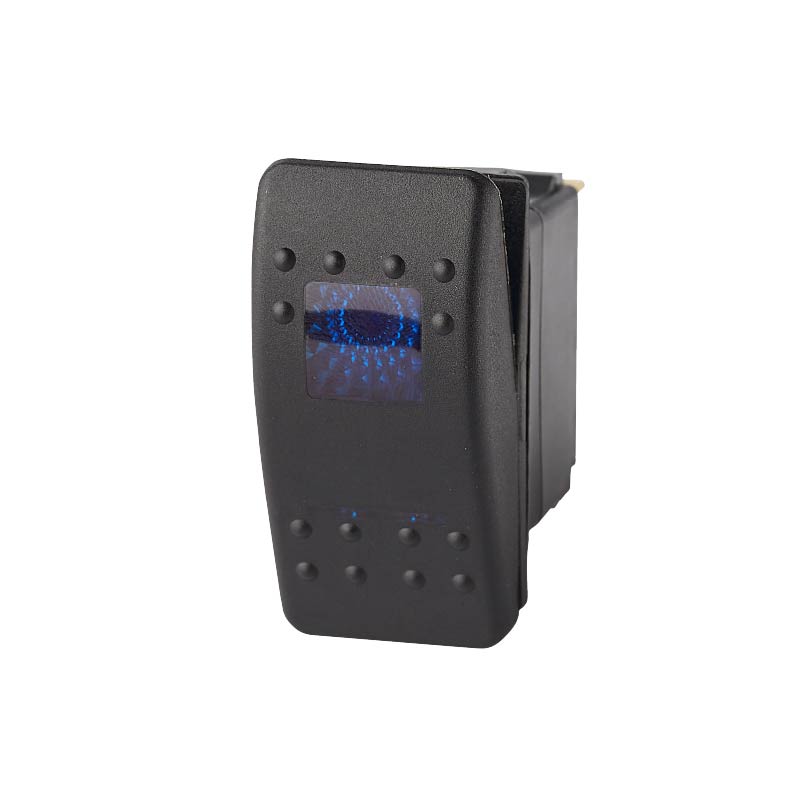

The R13-305 is a range of configurable rocker switches certified to IP67 when supplied with the panel sealing gasket offering above panel protection against moisture and dust. Available as SPST, SPDT, DPST and DPDT this highly reliable and durable switch can operate from between -25°C and up to 85°C. The switch frame is made from Nylon 66 (UL94V-2) with the lenses made from Polycarbonate and the rocker from Nylon 66. A choice of printed legend, frame colour, rocker colour and lens colour are available along with red, amber, green, blue and white LED illumination. Equally can be supplied with no illumination. The switch has available an 8 pin connector socket (R7-44) and is suitable for industrial, agricultural, construction, specialist vehicle, commercial vehicle and marine.
  • Rugged panel mount IP67 switches
  • Designed for high current applications up to 21A 12V DC
  • Panel cut-out approx. 21 x 36.8 mm
  • 6.3 x 0.8mm
  • Accessories include R4-77 8 pin connector and panel mount sealing gasket
  • Customizable printed legends
  • Operating temperature range up to -25 to 85 °C
  • Mechanical service life min. ... cycles
  • ENEC and UL certified

21A 14V DC, 15A 28V DC, 20A 125V AC, 10A 250V AC

21 x 36.8 mm cut-out

-25°C up to to 85°C

IP66/67/68 Rated

IP67

Marine - Markets at Lucid Electronics

Ideal for marine or automotive

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Function
IP Rating
Terminal Type
Actuator Type
Illumination
Optional Accessories
Datasheet
R13-305A 1A 21A 14 VDC ~ 15A 28 VDC 2P SPST On / Off IP67 6.3 x 0.8mm Illuminated Rocker Single window R4-77 Connector Housing
R13-305N 1 21A 14 VDC ~ 15A 28 VDC 2P SPST (On) / Off IP67 6.3 x 0.8mm Non illuminated rocker Plain actuator R4-77 Connector Housing
R13-305R 1 21A 14 VDC ~ 15A 28 VDC 2P SPST On / (Off) IP67 6.3 x 0.8mm Non illuminated rocker Plain actuator R4-77 Connector Housing
R13-305C 1C 21A 14 VDC ~ 15A 28 VDC 3P SPDT On / On IP67 6.3 x 0.8mm Illuminated Rocker Double window R4-77 Connector Housing
R13-305I 1B 21A 14 VDC ~ 15A 28 VDC 3P SPDT On / (On) IP67 6.3 x 0.8mm Illuminated Rocker Single Window & Small bar R4-77 Connector Housing
R13-305D 1C 21A 14 VDC ~ 15A 28 VDC 3P SPDT On / Off / On IP67 6.3 x 0.8mm Illuminated Rocker Double window R4-77 Connector Housing
R13-305H 1B 21A 14 VDC ~ 15A 28 VDC 3P SPDT On / Off / (On) IP67 6.3 x 0.8mm Illuminated Rocker Single Window & Small bar R4-77 Connector Housing
R13-305G 1 21A 14 VDC ~ 15A 28 VDC 3P SPDT (On) / Off / (On) IP67 6.3 x 0.8mm Non Illuminated Rocker Plain Actuator R4-77 Connector Housing
R13-305F 1A 21A 14 VDC ~ 15A 28 VDC 4P DPST On / Off IP67 6.3 x 0.8mm Illuminated Rocker Single Window R4-77 Connector Housing
R13-305S 1 21A 14 VDC ~ 15A 28 VDC 4P DPST (On) / Off IP67 6.3 x 0.8mm Non Illuminated Rocker Plain Actuator R4-77 Connector Housing
R13-305Q 1A 21A 14 VDC ~ 15A 28 VDC 4P DPST On / (Off) IP67 6.3 x 0.8mm Illuminated Rocker Single Window R4-77 Connector Housing
R13-305B 1C 21A 14 VDC ~ 15A 28 VDC 6P DPDT On / On IP67 6.3 x 0.8mm Illuminated Rocker Double Window R4-77 Connector Housing
R13-305P 1B 21A 14 VDC ~ 15A 28 VDC 6P DPDT On / (On) IP67 6.3 x 0.8mm Illuminated Rocker Single Window & Small Bar R4-77 Connector Housing
R13-305E 1C 21A 14 VDC ~ 15A 28 VDC 6P DPDT On / Off / On IP67 6.3 x 0.8mm Illuminated Rocker Double Window R4-77 Connector Housing
R13-305M 1B 21A 14 VDC ~ 15A 28 VDC 6P DPDT On / Off / On IP67 6.3 x 0.8mm Illuminated Rocker Single Window & Small Bar R4-77 Connector Housing
R13-305K 1 21A 14 VDC ~ 15A 28 VDC 6P DPDT (On) / Off / (On) IP67 6.3 x 0.8mm Non Illuminated Rocker Plain Actuator R4-77 Connector Housing
Electrical Rating up to 21A 14V DC
Poles / Throws up to 6P SPST, SPDT, DPST, DPDT
Function ON-OFF, ON-(OFF), (ON)-OFF, ON-ON, ON-(ON), ON-OFF-ON, ON-OFF-(ON), (ON)-OFF-(ON), ON-ON-ON, ON-ON-OFF, (ON)-ON-OFF, (ON)-ON-ON, ON-ON-(ON), (ON)-ON-(ON)
Illumination Red, Amber, Blue, Green and White LED
Terminals 6.3 X 0.8mm
IP Rating IP67
Operating Temperature Range -25°C up to to 85°C
Accessories R4-77 connector housing
Panel cut-out 21 x 36.8 mm
Options Custom solutions on request
Approvals

Specifications subject to change without notice.
