PS5 Pushbutton







PS5

Home - Switches & Indicators - Pushbutton Switches & Indicators - PS5

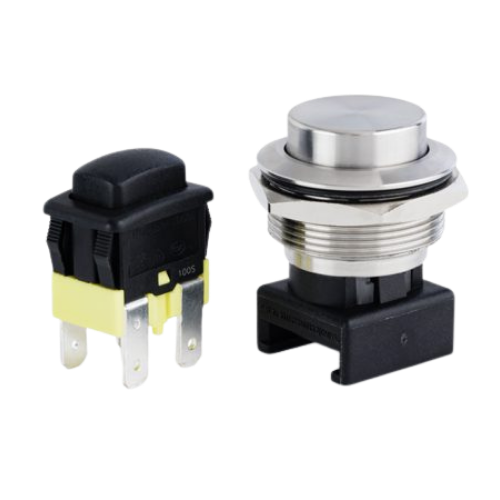

PS5 is a low profile pushbutton switch, available in SPST or DPST options, this pushbutton switch has a rating of 16(8)A 125/250V AC and is certified according to both UL and ENEC standards. With the capability to withstand up to 128A inrush current, it guarantees reliable performance even in demanding conditions. Additionally, customers have the choice between momentary or locking type, as well as illuminated or non-illuminated versions, allowing for customisation based on specific requirements (see PS5 VR series). When used with the rubber boot actuator the switch provides IP65 front of panel protection.

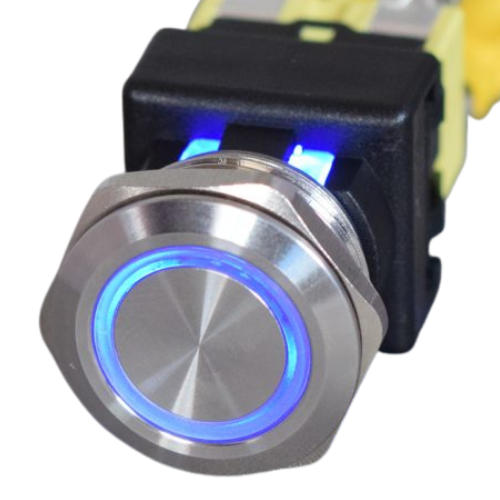

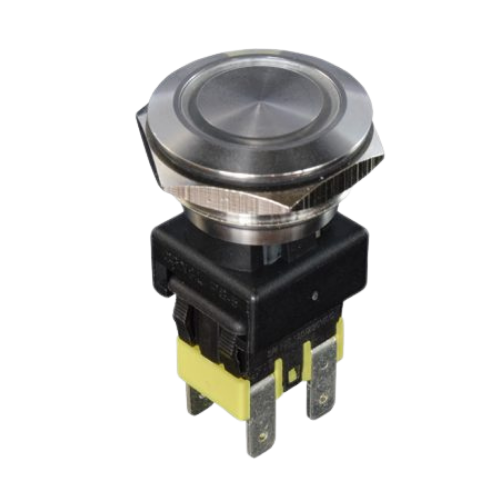

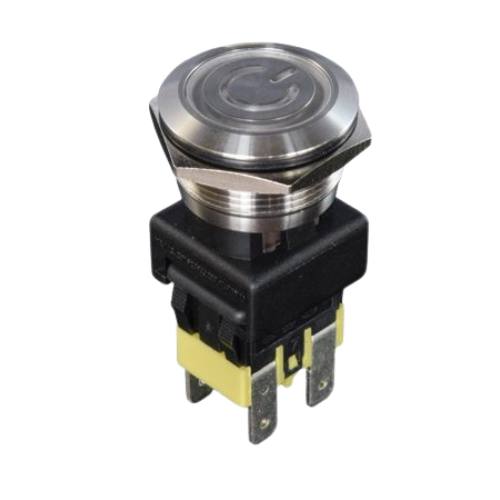

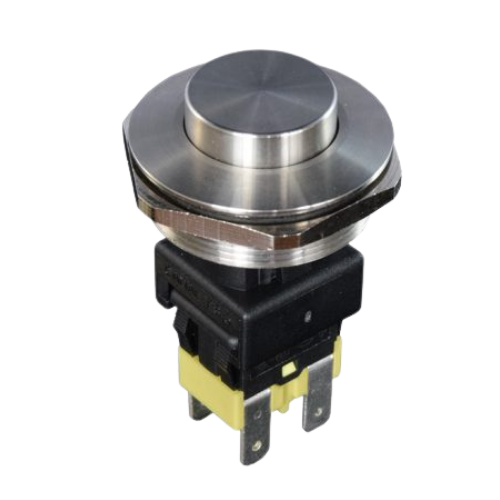

  • Standalone or base switch for the PS5 VR (Vandal Resistant)
  • Electrical rating up to 16(8)A 125/250V AC
  • Capable of withstanding in-rush current up to 128A (model dependent)
  • Rectangular 13 x 19mm cut-out
  • Quick Connect, solder, or PCB terminal options

16(8)A 125/250V AC

13 x 19 mm cut-out

T125/55

128A Inrush protection

Industry - Markets at Lucid Electronics

Ideal for demanding applications

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Configuration
Electrical Rating
Illumination
Terminal Type
Datasheet
PS5-110-KNBB-SB1 S.P.S.T. On-Off 16(4)A 250V AC T125/55 No Illumination Q.C. 4.8 x 0.8 mm pdf
Electrical Rating up to 16(8)A 125/250V AC
In-rush Rating up to 128A
Function Latching, Momentary
Poles / Throws SPST, DPST
Termination Quick Connect, Solder, PCB
Illumination 125V AC, 250V AC, 12V DC
Operating Temperature Range T125/55
Accessories IP65 rubber boot
Panel cut-out 13 x 19 mm
Options Choice of actuator styles and colours
Approvals UL, ENEC

Specifications subject to change without notice.
