MR

Home - Switches & Indicators - Rocker Switches - MR

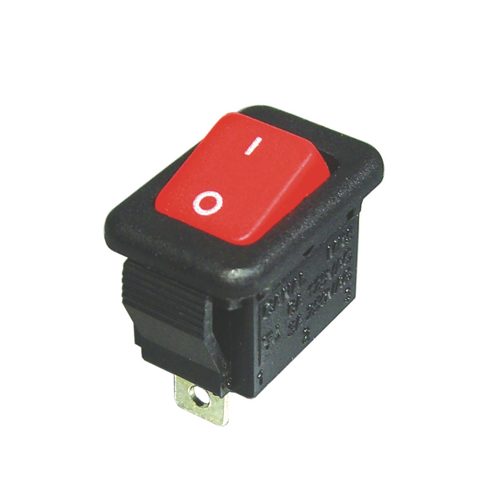

The MR Standard Series is a range of compact single pole and double pole rocker switches rated up to 16(4)A 125/250V AC. Certified according to UL and ENEC standards, a variety of colours, configurations, terminations and illumination types are available. The MR standard series is also available in V0 flame retardant nylon. Typical applications include instrumentation and small household appliances.
  • Compact switch rated up to 16(4)A 125/250V AC
  • Panel cut-out 13 x 19 mm
  • Choice of actuator colours & illumination types
  • Available with Quick Connect, solder or PCB terminals
  • Operating temperature range is -20°C up to 125°C
  • ENEC and UL certified

16(4)A 125/250V AC

13 x 19 mm cut-out

T125/55

VO flame retardant nylon option

Industry - Markets at Lucid Electronics

Ideal for instrumentation

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Electrical Rating
Configuration
Terminal Type
Illumination
Legend
Datasheet
MR-110C4W-NBBB-12NC 12(4)A 125/250V AC S.P.S.T. on-off Q.C. 4.8 x 0.8 mm Non-illuminated I O pdf
MR-111C4W-NBBB-2ANC 12(4)A 125/250V AC S.P.S.T. on-off Solder 4.8 x 0.8 mm Non-illuminated I O pdf
MR-210C5W-NBBC-1ANC 16(4)A 125/250V AC D.P.S.T. on-off Q.C. 4.8 x 0.8 mm Non-illuminated – O pdf
MR-211C5W-LBRB-1LNC 12(4)A 125/250V AC D.P.S.T. on-off Solder 4.8 x 0.8 mm Illumintated 110-125VAC O – pdf
MR-212C5W-NBBB-3ANC 12(4)A 125/250V AC D.P.S.T. on-off PCB Terminals Non-illuminated – O pdf
Electrical Rating up to 16(4)A 125/250V AC
Poles / Throws SPST, DPST
Function On-Off
Illumination 125V AC, 250V AC, 6V DC, 12V DC, 24V DC
Teminals Quick Connect, Solder, PCB
Accessories Splashproof cover
Operating Temperature Range up to T125/55
Options V0 flame retardant nylon
Panel cut-out 13 x 19 mm
Approvals UL, ENEC

Specifications subject to change without notice.
