LP16 IP68 I/O Connectors

Home - Connectivity - Waterproof I/O Connectors - LP16 IP68 I/O Connectors

IP68 Quick Connect I/O Plug & Sockets

The LP16 I/O connectors (part of the LP series) feature a high-precision, key-way pluggable design with integrated self-locking push-lock and quick release mechanism. Supplied in a variety of PBT plastic and Zinc alloy metal housings, they are Rated IP68 waterproof along with UV-resistant properties.

Supporting RJ-45 and USB-C connectivity they are ideal for demanding environments and well suited for use in aviation, communications, renewable energy, medical, robotics, automation, industrial appliances, LED displays and many more applications.

LP16 is also available in multipin configurations for power and signal with 2 to 9 pins. See the circular connector section for these.

The wider product family includes additional sizes LP12, LP20, LP24 and LP28 with higher electrical ratings, alongside further I/O options including fibre optic, HDMI and USB-A.
  • Shielded RJ-45 and USB-C 60W 5Gb/s connection
  • RJ-45 housing only, plugs not included
  • IP68 1M / 2hr when mated (panel mount IP65 included cap)
  • PBT Plastic / Zinc Allow & PBT Plastic / Zinc Alloy versions available
  • PBT material is UV resistant and flame Retardant
  • Supplied as mating pairs for value and convenience
  • USB-C cable end prewired with 1m cable - other lengths on request
  • Panel mount coupler for connection inside equipment
  • Cable, panel and flange mount types
  • Quick connect, push fit, press to release - Anti-vibration
  • Panel cut out 16.5mm with maximum housing diameter 32mm
  • UL, cUL, TUV, CE approvals
  • LP16 multipin types also available, see Circular connector section.

16.5mm Panel Cutout

IP66/67/68 Rated

IP68 Mated / IP65 Dustcap

RJ-45 / USB-C

1.5A / 3A

125V / 20V

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Pins
Connecton Type
Female Part
Male Part
Dust Cap
Material
Current Rating
Voltage Rating
Datasheet

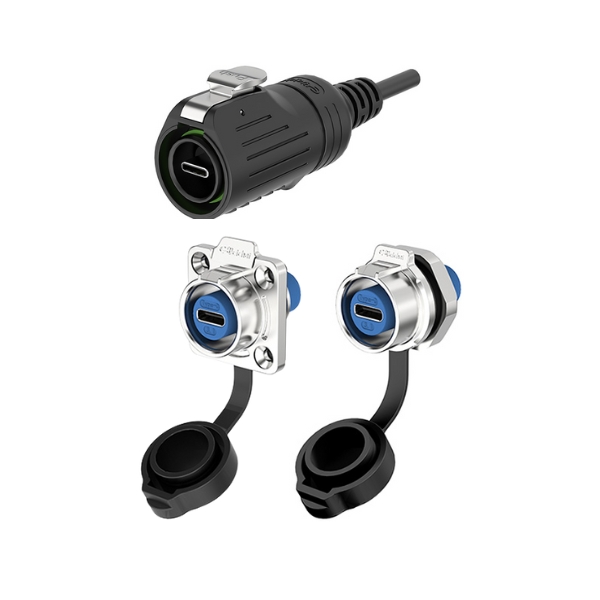

LP16-USBCF-ZP USB-C Plug to Coupler Flange Cable Yes PBT & Zinc Alloy 3A 20V LP16 I/O Datasheet
LP16-USBCP-ZP USB-C Plug to Coupler Panel Cable Yes PBT & Zinc Alloy 3A 20V LP16 I/O Datasheet
LP16-USBCF-PL USB-C Plug to Coupler Flange Cable Yes PBT 3A 20V LP16 I/O Datasheet
LP16-USBCP-PL USB-C Plug to Coupler Panel Cable Yes PBT 3A 20V LP16 I/O Datasheet

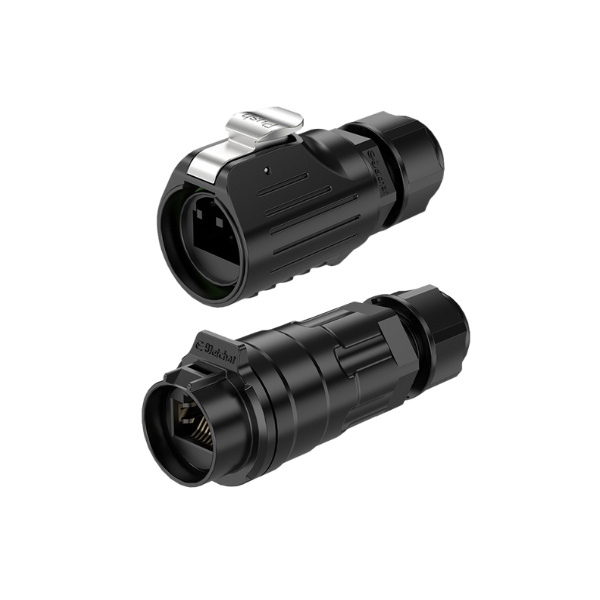

LC-LP16-RJ45 RJ45 Inline Cable Cable Yes PBT 1.5A 125V LP16 I/O Datasheet

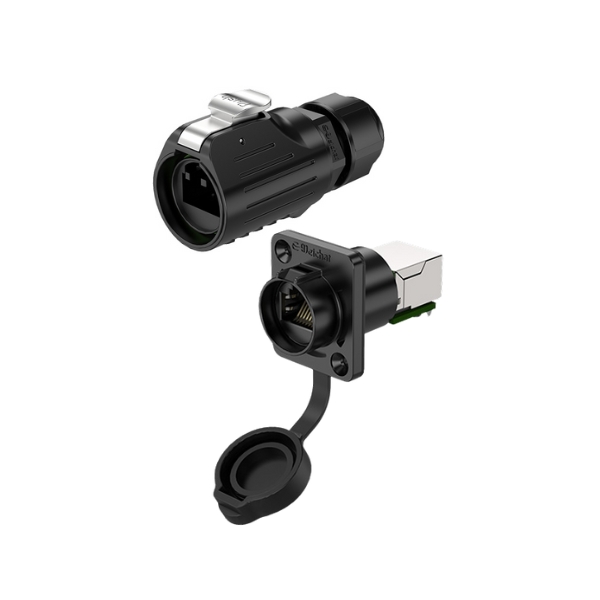

LP16-RJ45F-PL RJ45 Plug to Coupler Flange Cable Yes PBT 1.5A 125V LP16 I/O Datasheet

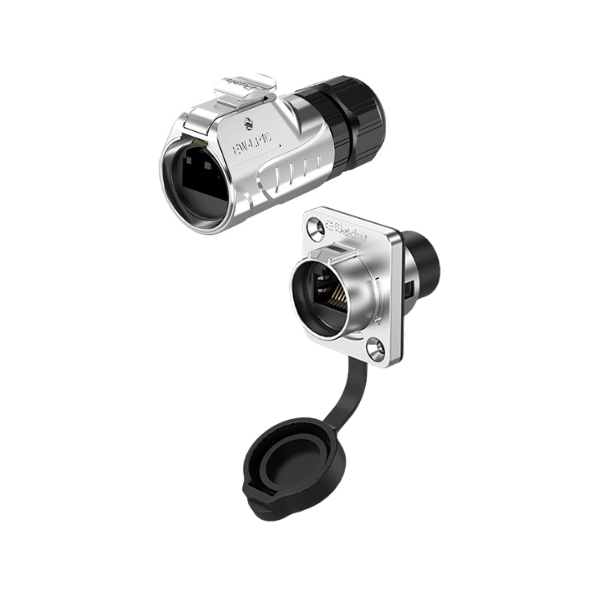

LP16-RJ45F-ZZ RJ45 Plug to Coupler Flange Cable Yes Zinc Alloy 1.5A 125V LP16 I/O Datasheet
LP16-RJ45C-ZP RJ45 Inline Cable Cable Yes PBT & Zinc Alloy 1.5A 125V LP16 I/O Datasheet
LP16-RJ45F-ZP RJ45 Plug to Coupler Flange Cable Yes PBT & Zinc Alloy 1.5A 125V LP16 I/O Datasheet
Unit of supply Male & Female pair (Panel / Flange mount includes silicon dust cap)
IP Rating IP68 to 1M/2hr (IP65 panel with dust cap)
Connection Type RJ-45 (Shielded) / USB-C
USB Rating USB-C 5Gb/s 60W (3A / 20V)
Min - Max Cable Diameter (mm) 5.0 - 7.0
Mating cycles >1900
Panel Cutout 16.5mm
Material PBT plastic (Flame and UV retardant) / Zinc alloy
Temperature Range -40°C to +85°C

Specifications subject to change without notice.
