Screwless Waterproof Connectors IP68

Home - Connectivity - Circular Connectors - Screwless Waterproof Connectors IP68

Multipole Cable Joints

These screwless IP68-rated cable joint connectors provide maximum protection against dust, moisture and environmental factors in critical applications. Designed for use in applications such as lighting, swimming pools, agriculture, industrial, marine and renewable energy where they ensure reliable performance in harsh conditions.

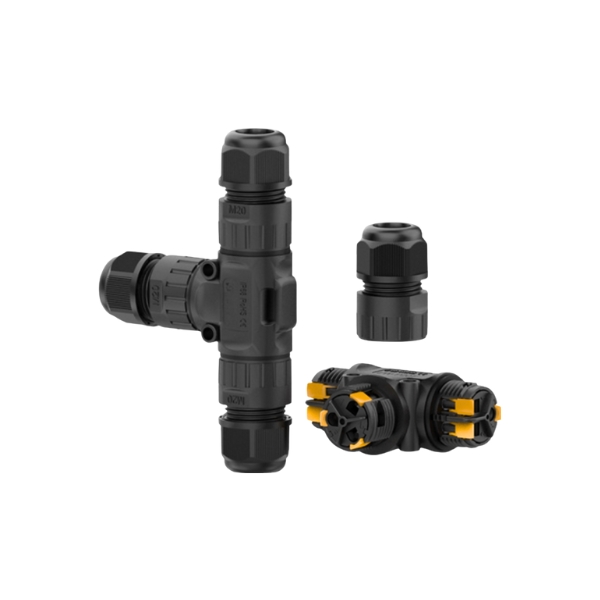

Screwless versions offer robust, secure connections for high-stress environments with resistance to vibration and time saving wiring for rapid installation, with options including inline and T splitters for multiple wiring configurations.

The connectors feature UV-resistant materials for long-term outdoor durability and quick-connect systems for efficient installation in field applications.

Other variants available on request, contact us for details.
  • 3 & 5 pin with IP68 protection against dust and water
  • Suited for outdoor wiring and electrical installations

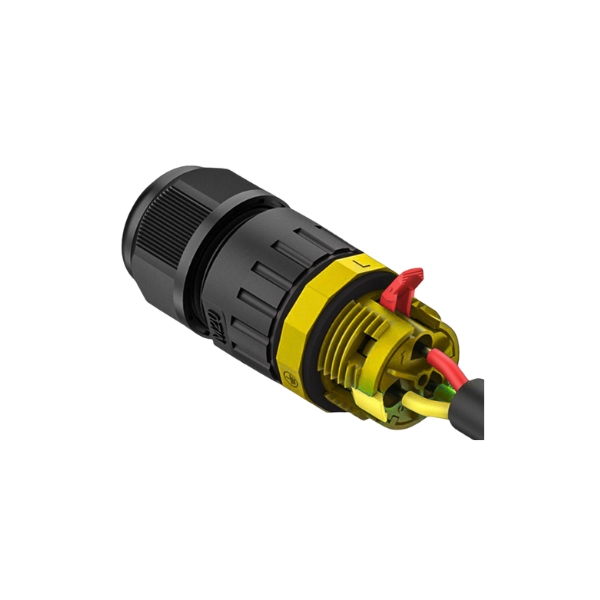

  • Screwless termination
  • Rugged Nylon PA66 UV and Flame retardant material
  • Silicon rubber seals

M20 / M25

IP66/67/68 Rated

IP68

3 or 5 Poles

16A

450V

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
No. of Poles
Connection Type
IP Rating
Min Cable Diameter
Max Cable Diameter
Wire Size mmsq
Current Rating
Voltage Rating
Datasheet
LC-CJP20-3P 3 Screwless IP68 3mm 12mm 0.5 - 2.5 16A 450V LC-CJP Datasheet
LC-CJP25-5P 5 Screwless IP68 5mm 14mm 0.5 - 2.5 16A 450V LC-CJP Datasheet
LC-CJP20T-3P 3 Screwless IP68 3mm 12mm 0.5 - 2.5 16A 450V LC-CJP Datasheet
Number of poles 3 or 5
Connection Type Screwless
IP Rating IP68
Voltage Rating 450V
Current Rating 16A
Wire Size 0.5mmsq to 2.5mmsq
Material PA66 Nylon UV and Flame retardant
Min Cable Diameter (mm) 3
Max Cable Diameter (mm) 14
Operating Temperature -40°C to +105°C

Specifications subject to change without notice.
