IP68 Junction Box Enclosures

Home - Connectivity - Cable Glands & Vents - IP68 Junction Box Enclosures

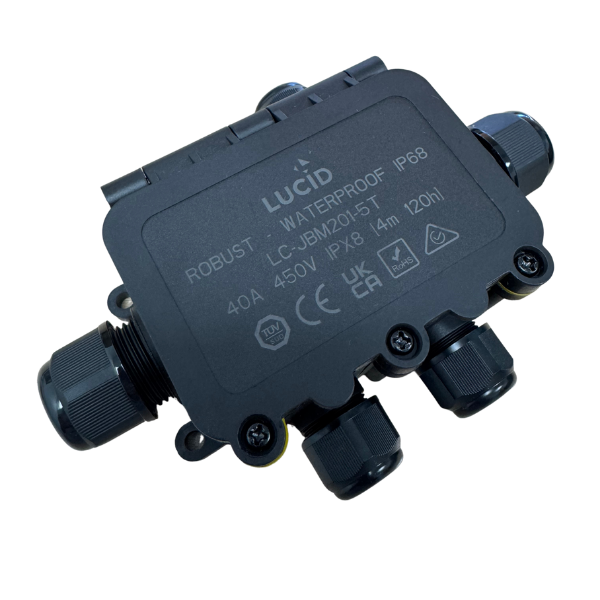

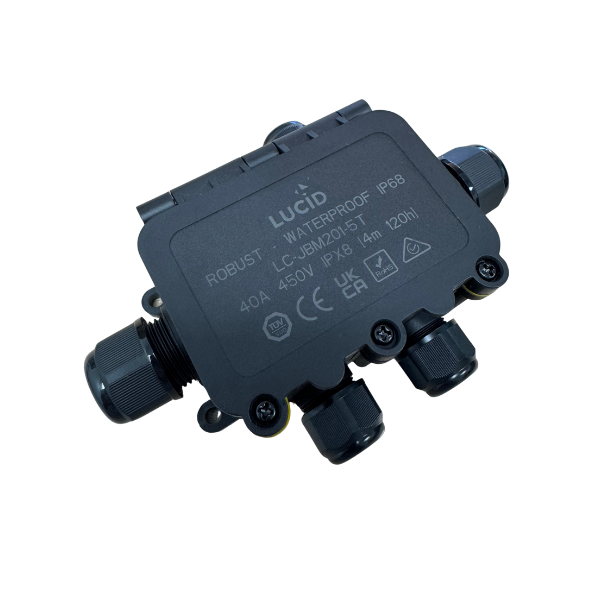

IP68 Waterproof multi-entry junction boxes

Robust IP68 junction boxes moulded in UV resistant PA66 nylon material suitable for outdoor installations such as lighting, agricultural and industrial applications.

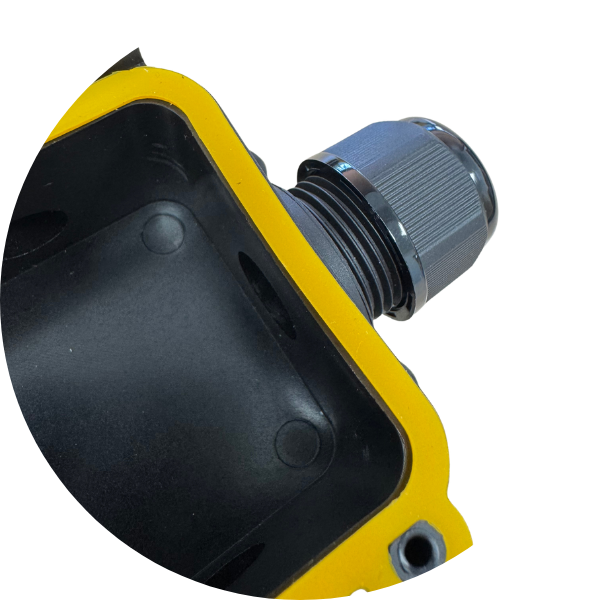

Available in multiple configurations with up to 5mm thick walls, integrated cable gland entries and seals. The enclosure has a professional hinged lid with a solid metal pin.

Supplied including a 4 pole nylon screw pillar terminal block with 6mmsq wire entries and multiple sealing grommets from 3.5mm up to 12mm cable diameters.
  • UV resistant PA66 nylon material
  • IP68 rated with silicon sealing gasket

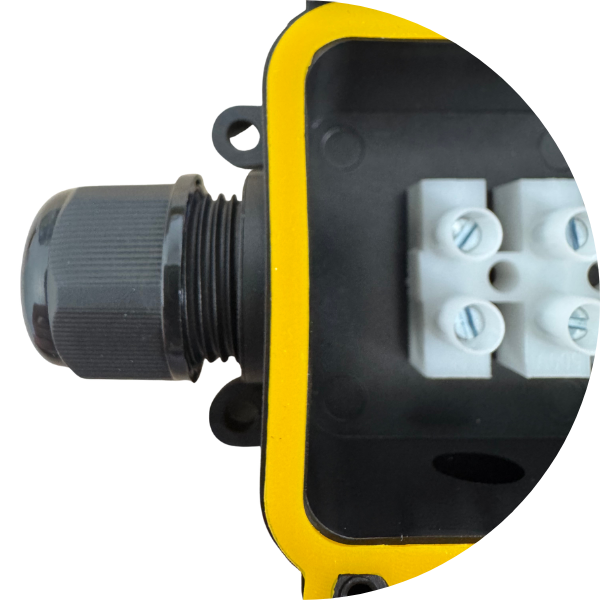

  • Robust 4mm - 5mm thick walls
  • 2 to 6 cable entries for cables with 3.5mm to 12mm diameter

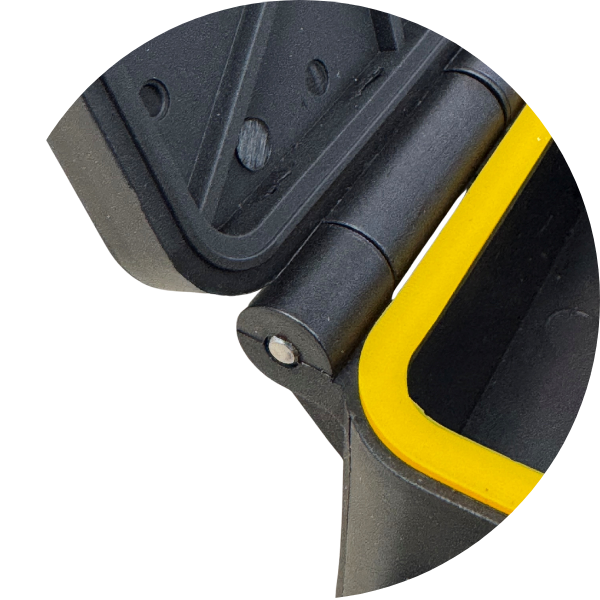

  • Hinged lid constructed with insulated metal pin

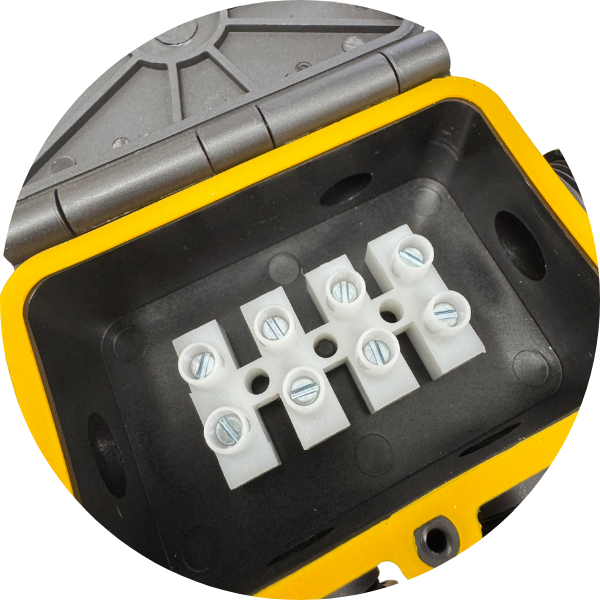

  • 4 pole screw terminal block for 6mmsq wires rated up to 450V / 40A
  • Operating temperature -40°C to +105°C

2 to 6 Entries / 4 Pole Connector

IP66/67/68 Rated

IP68

Cable OD Min. 3.5mm

Cable OD Max. 12mm

-40°C to +105°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Cable Entries
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Length (mm)
Width (mm)
Depth (mm)
LC-JBM201-2T 2 x M20 5 12 131 68 37
LC-JBM201-3T 2 x M20 / 1 x M16 5 / 3.5 12 / 10 131 80 37
LC-JBM201-4TA 2 x M20 / 2 x M16 5 / 3.5 12 / 10 131 80 37
LC-JBM201-4TB 2 x M20 / 2 x M16 5 / 3.5 12 / 10 131 95 37
LC-JBM201-5T 2 x M20 / 3 x M16 5 / 3.5 12 / 10 131 95 37
LC-JBM201-6T 2 x M20 / 4 x M16 5 / 3.5 12 / 10 131 95 37
Material UV resistant Nylon PA6
IP Rating IP68
Colour Black
Gland Sizes Integrated M16 & M20 configurations
Min. Cable Diameter (mm) 3.5
Max. Cable Diameter (mm) 12
Temperature Rating -40°C to +105°C
Rated Voltage 450V
Rated Current 40A
Number of poles 4
Cable Entries 2 to 6

Specifications subject to change without notice.
