Inductive Proximity Sensor

Home - Sensing - Position Sensors - Inductive Proximity Sensor

Designed to offer an efficient way of detecting the presence or absence of nearby metallic objects without the need for physical contact. When the targeted object enters the high frequency magnetic field generated by the sensor it triggers an output.

With the ability to detect a metallic object these sensors can be used for industrial robotics, shaft rotation, machine tools, conveyors and assembly line part detection applications. These sensors are very suited to dirty, dusty environments.

They can be supplied NO or NC with either NPN or PNP output.

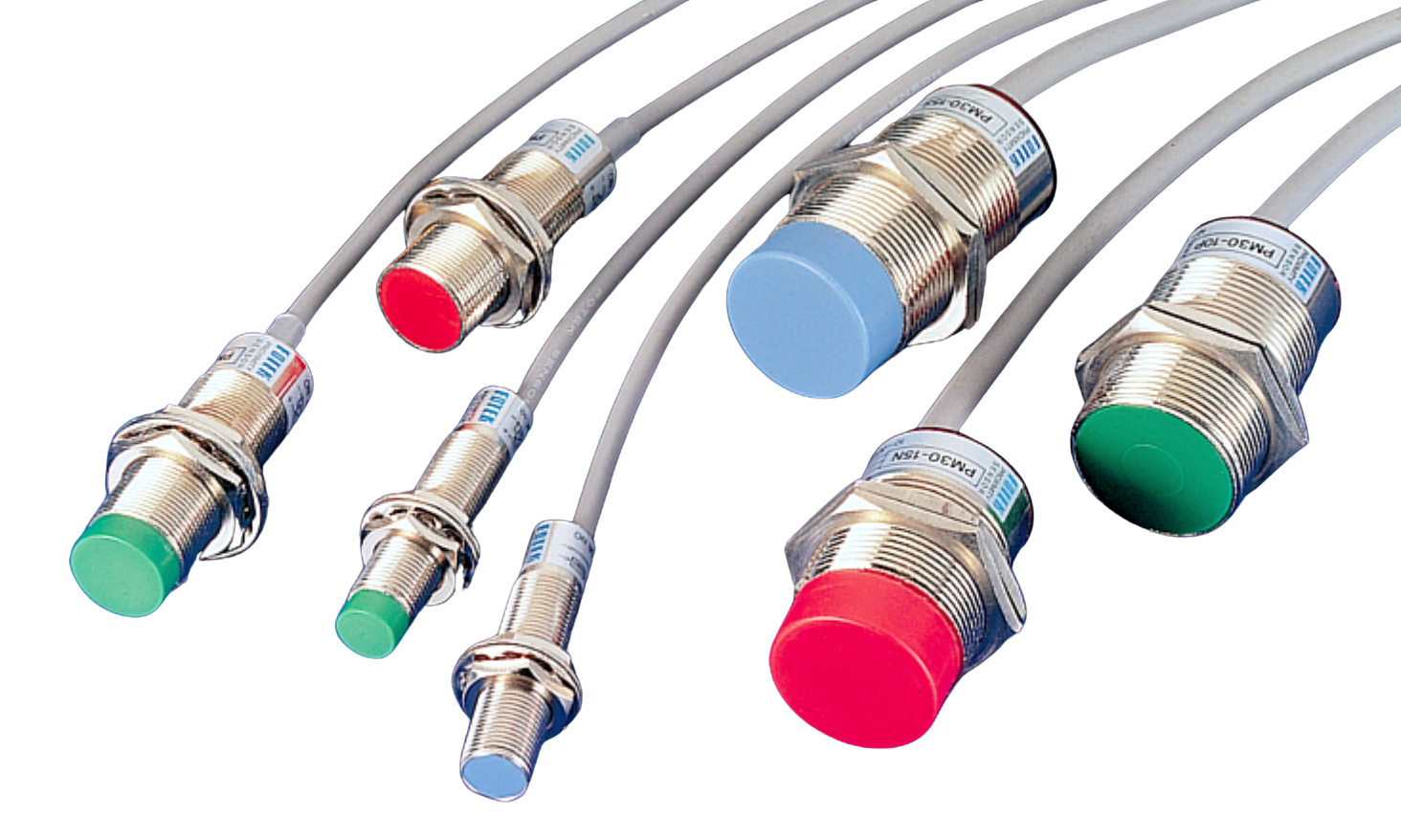

A rugged design with IP67 sealing, it offers reverse polarity, short circuit and overload protection. The sensors have a choice of body styles in Polypropylene, Stainless steel or Copper plated Nickel, they can be provided with a full screw thread finish, short body style and can either be fitted with an M12 connector or wire termination.
  • Copper plated Nickel, Stainless Steel or Polypropylene housing materials
  • Available in M8 through to M30 threaded housings
  • NPN, PNP or SCR output
  • Sealed to IP67
  • Sensing range of up to 25mm
  • Short circuit, overload and reverse polarity protection
  • Short body, fully threaded housing with wire or M12 connector

10-30 VDC

IP66/67/68 Rated

up to IP67

PNP or NPN output

Up to 15mm sensing range

Agriculture - Markets at Lucid Electronics

Ideal for Agriculture

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Housing Size
Housing Material
Output type
Switch Function
Sensor Profile
Sensing distance ±10%
Supply voltage
Response Frequency
Ingress Protection
Sensing Face
PM08-01NSE M8 Stainless Steel (SUS 304) NPN NO Flush 1mm 10-30V 2.5KHz IP67 Plastic
PM08-01PSE M8 Stainless Steel (SUS 304) PNP NO Non Flush 1mm 10-30V 2.5KHz IP67 Plastic
PM12-02NS M12 Copper plated Nickel NPN NC Flush 2mm 10-30V 2.5KHz IP67 Plastic
PM12-02PS M12 Copper plated Nickel PNP NO Flush 2mm 10-30V 2.5KHz IP67 Plastic
PM12E-05N-E M12 Copper plated Nickel NPN NO Flush 5mm 10-30V 1.2KHz IP67 Plastic
PM12E-08NE M12 Copper Plated Nickel NPN NO Non Flush 8mm 10-30V 1.2KHz IP67 Plastic
PM12-02N-M12 M12 Copper Plated Nickel NPN NO Flush 2mm 10-30V 2.5KHz IP67 Plastic
PM12-02P-M12 M12 Copper Plated Nickel PNP NO Flush 2mm 10-30V 2.5KHz IP67 Plastic
PM18-08N M18 Copper Plated Nickel NPN NO Non Flush 8mm 10-30V 800Hz IP67 Plastic
PM18-08P M18 Copper Plated Nickel PNP NO Non Flush 8mm 10-30V 800Hz IP67 Plastic
PM30-10N M30 Copper Plated Nickel NPN NO Flush 10mm 10-30V 500Hz IP67 Plastic
PM30-10P M30 Copper Plated Nickel PNP NO Flush 10mm 10-30V 500Hz IP67 Plastic
Housing M8 to M30
Sensing Range Up to 25mm
Sensing face colour NPN - Red, PNP - Green, AC - Blue
Output Type PNP, NPN or Silicon Controlled Rectifier
Wiring 3 - 4 wires
Supply Voltage 10-30VDC ~ 90-250VAC
Current consumption (no load) DC ≤10mA ~ AC ≤2mA
Sealing IP67
Operating Temperature -25°C…+80°C
Output current DC ≤150mA ~ AC ≤100mA

Specifications subject to change without notice.
