Hygienic Stainless Steel Cable Glands

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Hygienic Stainless Steel Cable Glands

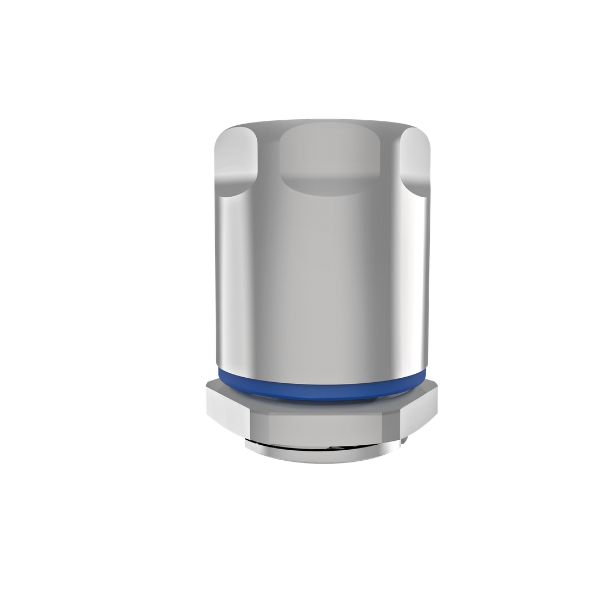

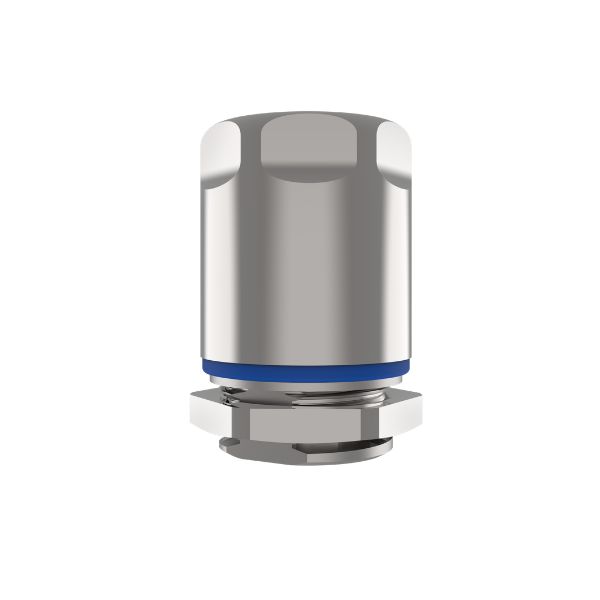

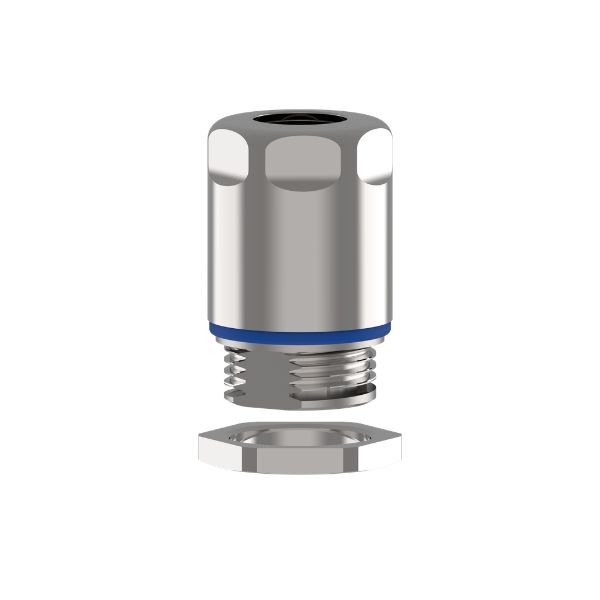

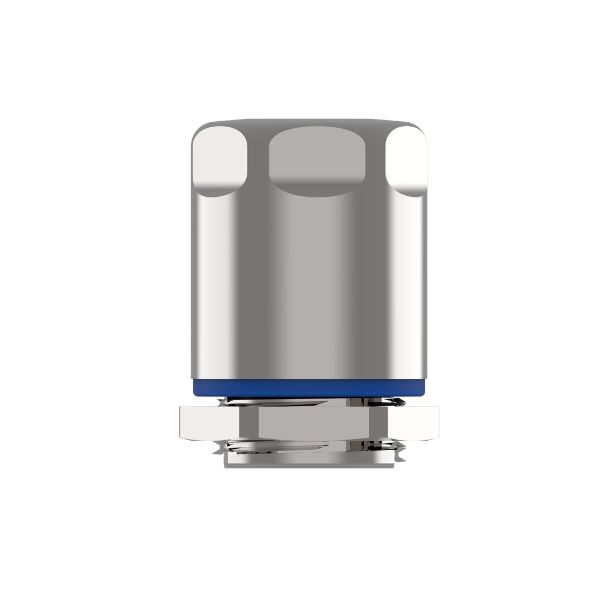

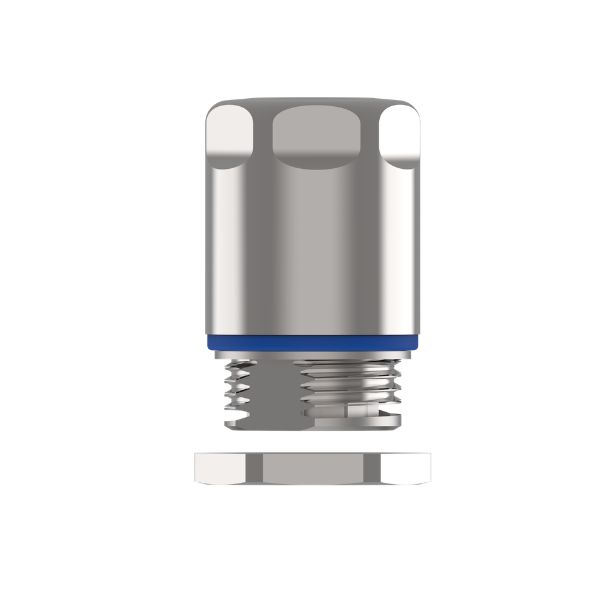

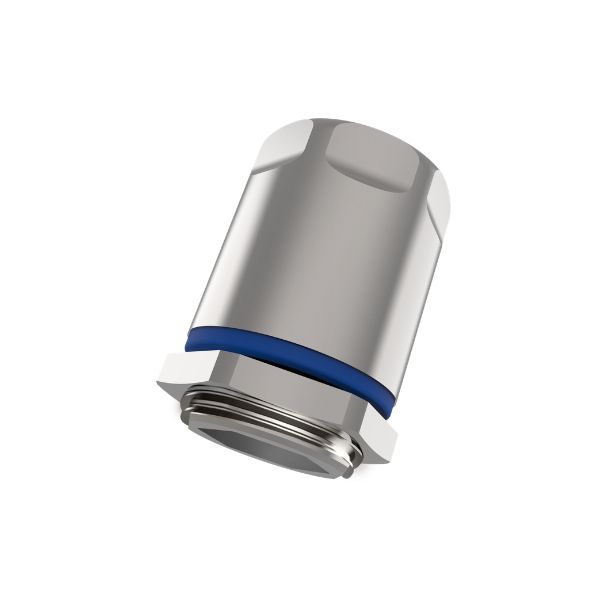

Hygienic Cable Glands manufactured from high-quality, corrosion-resistant stainless steel. Designed so that no threads are exposed and with smooth surfaces to enable easy and efficient cleaning. These provide robust, durable cable entry solutions for applications in food, cleanroom, pharmaceutical, biotech and medical industries.
  • IP68 - 5 Bar 30 min, IP69, IP66
  • Suitable for both indoor and outdoor use in industrial environments
  • Designed for hygienic applications in food, pharmaceutical, cleanroom, biotech, and chemical industries.
  • High protection against dust, moisture, and water ingress
  • High tensile strength and reliable strain relief
  • Durable design with quick and easy assembly
  • Seal / Gasket material is EPDM, acc. to FDA guideline 21 CFR 177.2600
  • Housing material / Locknut is Stainless Steel (1.4305/303)
  • Type rating 1, 2 , 4 , 4X, 12, 12K, 13
  • Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments.
  • Accessories include an adaptor for Hygienic glands

M12, M16, M20, M25

IP66/67/68 Rated

IP68 – 5 Bar 30 min, IP69, IP66

Cable OD Min. 3mm

Cable OD Max. 17mm

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

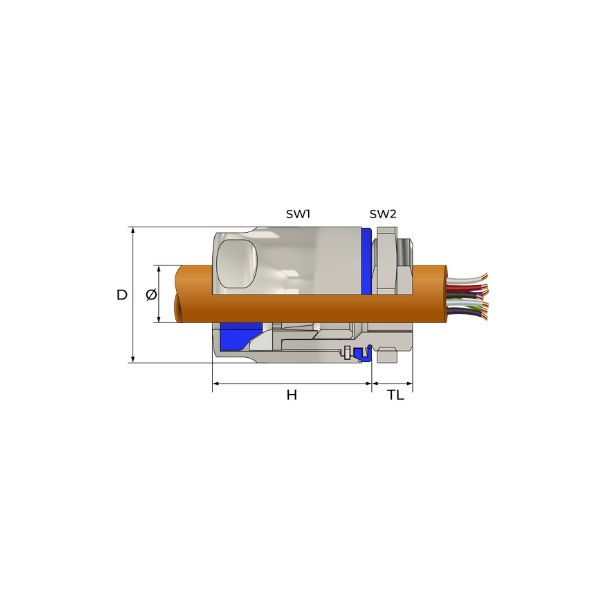

Size
Thread Length (mm)
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
M12x1,5 6 3 6.5 14 10 15.5 24 Standard Cable Glands Brass
M16x1,5 7 5 10 22 17 20 / 22 25.5 / 30.5 / 31.5 Standard Cable Glands Brass
M20x1,5 8 6 12 22 17 24.5 / 26.5 26.5 / 28 / 30 / 30.5 Standard Cable Glands Brass
M25x1,5 10 12 17 28 22 30 / 33 30 / 32.5 / 35 Standard Cable Glands Brass
IP Rating IP 68 - 5 Bar, 30 min, IP69, IP66
Thread Options Metric EN 60423
Body Material Stainless Steel
Seal / Gasket Material EPDM, acc. to FDA guideline 21 CFR 177.2600
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Type Rating 1, 2 , 4 , 4X, 12, 12K, 13
Accessories Adaptor for Hygienic Glands

Specifications subject to change without notice.
