Hygienic EMC Cable Glands

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Hygienic EMC Cable Glands

EMC shielding and sealing for cleanroom applications

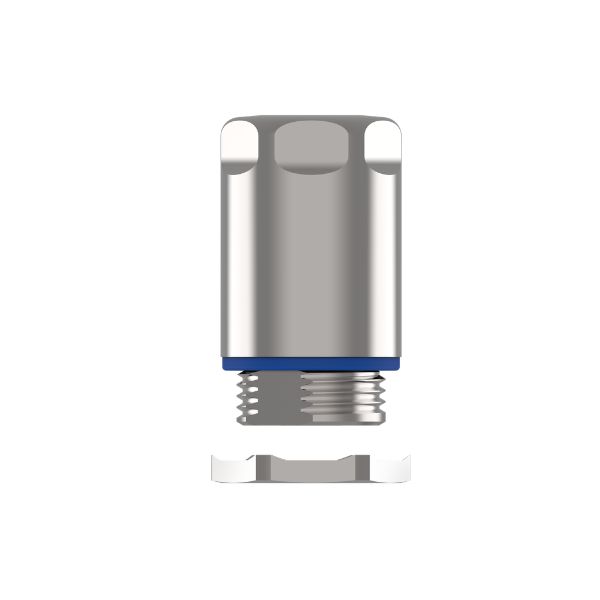

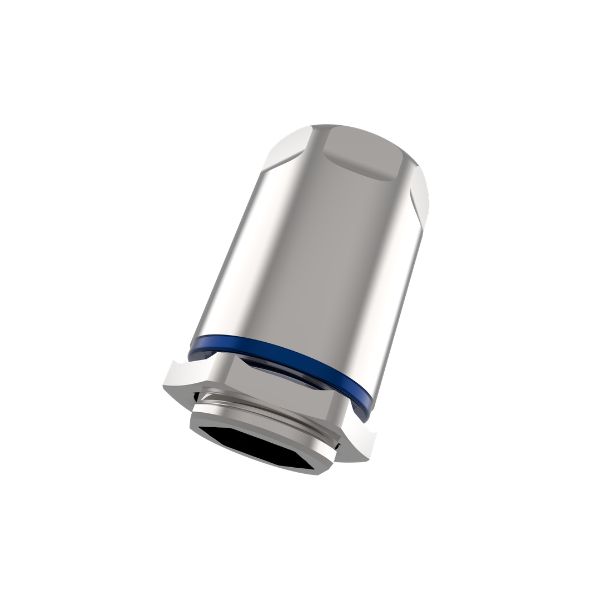

Hygienic EMC Cable Glands manufactured from high-quality, corrosion-resistant Stainless Steel (1.4305/303). Providing reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables and designed so that no threads are exposed and with smooth surfaces to enable easy and efficient cleaning. These provide robust, durable cable entry solutions for applications needing EMC protection in food, cleanroom, pharmaceutical, biotech and medical industries.
  • M16 / M20 / M25 - IP68 - 5 Bar 30 min, IP69, IP66
  • Designed for hygienic applications in food, pharmaceutical, cleanroom, biotech, and chemical industries, providing reliable electromagnetic compatibility (EMC)
  • Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables
  • Suitable for use in Hygienic applications with EMC requirements
  • Manufactured from high-quality, corrosion-resistant stainless steel
  • Smooth surfaces prevent microorganism buildup and ensure easy cleaning
  • No threads are exposed, ensuring improved hygiene and easier cleaning
  • Seal material complies with FDA guideline 21 CFR 177.2600
  • Maintains effective sealing against dust, moisture, and cleaning agents
  • Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments
  • Complies with relevant hygienic standards and regulations

M16 / M20 / M25

IP66/67/68 Rated

IP68 – 5 Bar 30 min, IP69, IP66

Cable OD Min. 5mm

Cable OD Max. 17mm

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

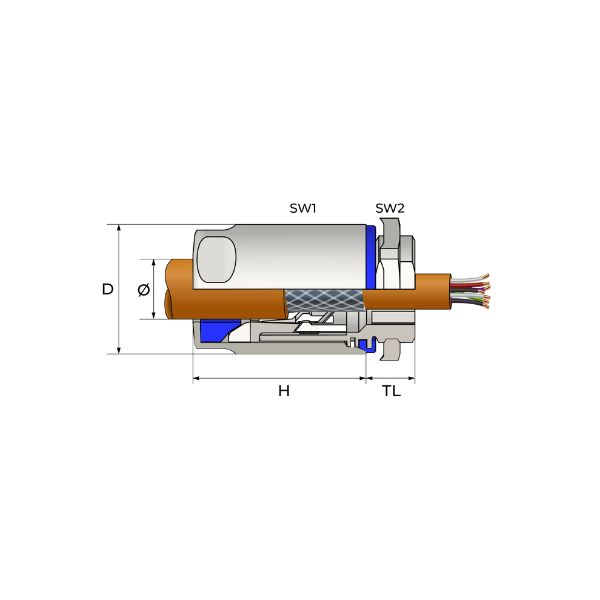

Size
Thread Length (mm)
Min. Cable Ø (mm)
Max. Cable Ø (mm)
Spanner Width Cap (mm)
Spanner Width Body (mm)
Locknut Spanner Width
Outer Ø (mm)
Max. Height (mm)
Shield wire Ø (mm)
Datasheet
M16x1,5 7 5 10 18 13 19 20.2 32.5 4 - 9 Hygienic EMC Glands
M20x1,5 8 6 12 22 17 24 24.1 35.5 5 - 11 Hygienic EMC Glands
M25x1,5 10 12 17 28 22 30 30.1 41 10 - 16 Hygienic EMC Glands
IP Rating IP 68 - 5 Bar, 30 min, IP69, IP66
Thread Options Metric EN60423 M16 / M20 / M25
Body Material Stainless Steel (1.4305/303)
Contact Spring Material Special Copper Alloy
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Type Rating 1, 2 , 4 , 4X, 12, 12K, 13
Accessories Adaptor for Hygienic Glands

Specifications subject to change without notice.
