Hygienic Conduit Fittings

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Hygienic Conduit Fittings

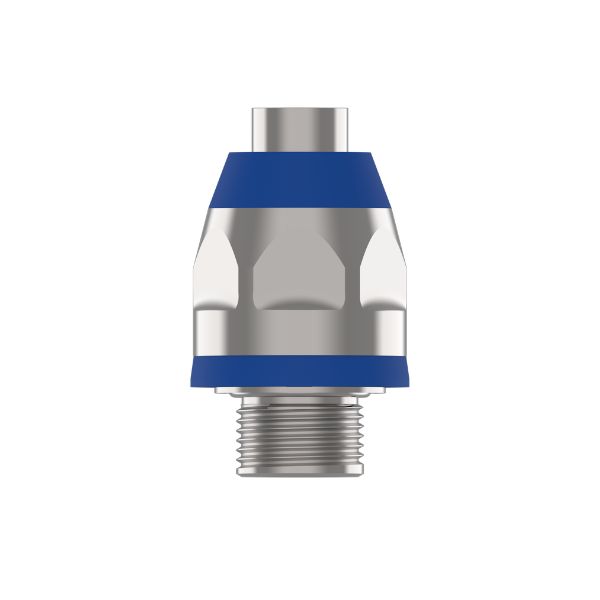

Stainless Steel conduit fittings for cleanrooms

Hygienic Conduit fittings manufactured from high-quality, corrosion-resistant Stainless Steel (1.4305/303). Designed so that no threads are exposed and with smooth surfaces to enable easy and efficient cleaning. These provide robust, durable cable entry solutions for applications in food, cleanroom, pharmaceutical, biotech and medical industries.
  • M16 to M63 threads with IP65 / IP66 sealing
  • Manufactured from high-quality, corrosion-resistant Stainless Steel (1.4305/303)
  • Compatible with 'Liquid Tight' conduits, ensuring a secure, sealed, and hygienic connection
  • Smooth surfaces prevent microorganism buildup and ensure easy cleaning
  • No threads are exposed, ensuring improved hygiene and easier cleaning
  • Seal material complies with FDA guideline 21 CFR 177.2600
  • Maintains effective sealing against dust, moisture, and cleaning agents
  • Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments
  • Complies with relevant hygienic standards and regulations
  • Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments

M16 – M63

IP66/67/68 Rated

IP65, IP66

Min. Conduit 3/8″

Max. Conduit 2″

-40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

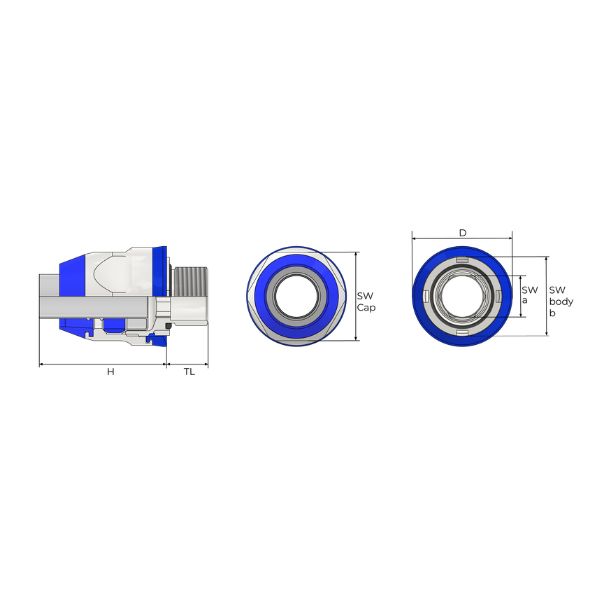

Part Number
Size
Conduit Size (inch)
Thread Length (mm)
Spanner Width (mm)
Spanner Width Allen (mm)
Crescent Spanner Width (mm)
Outer Ø (mm)
Max. Height (mm)
Datasheet
BMHF1-01-L M16x1,5 3/8 11.5 27 11 24 31.1 39 Hygienic Conduit Fittings
BMHF1-02-L M20x1,5 1/2 13 30 14 27 34 39.5 Hygienic Conduit Fittings
BMHF1-03-L M25x1,5 3/4 15 36 19 33 41 44.5 Hygienic Conduit Fittings
BMHF1-04-L M32x1,5 1 15 46 25 42 52.7 53.5 Hygienic Conduit Fittings
BMHF1-05-L M40x1.5 1 1/4 16 54 32 50 62 61.5 Hygienic Conduit Fittings
BMHF1-06-L M50x1.5 1 1/2 18 63 36 58 70 65.5 Hygienic Conduit Fittings
BMHF1-07-L M63x1.5 2 20 77 48 72 84.6 70.5 Hygienic Conduit Fittings
Ingress Protection Rating IP65, IP66
Thread Options Metric M16 - M63
Body Material Stainless Steel (1.4305/303)
Seal / Gasket Material EPDM, acc. to FDA guideline 21 CFR 177.2600
Operating Temperature Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C
Type Rating 1, 2 , 4 , 4X, 12, 12K, 13

Specifications subject to change without notice.
