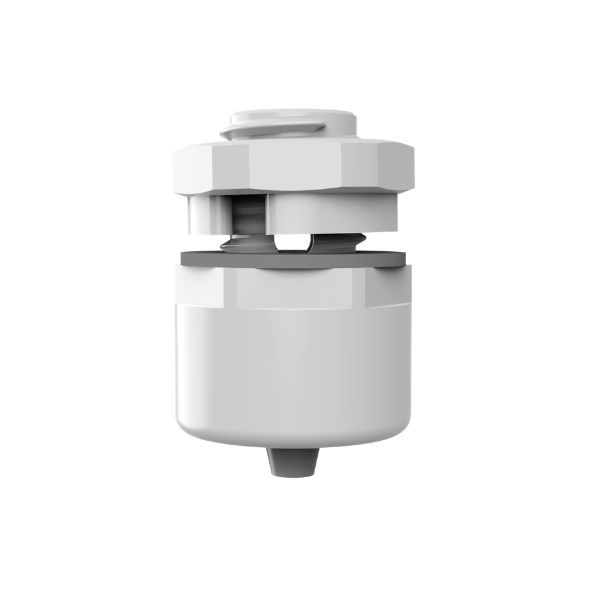

Drain Plugs Plastic IP56

Drain Plug — also referred to as sump plugs or stoppers — are mechanical components designed to safely discharge water or condensation build up inside a sealed housing or enclosure. Providing effective protection against water and contaminants whilst at the same time allowing controlled airflow and balancing air pressure within the housing. They are widely used in general electrical, industrial and lighting applications.
  • IP56 in Standard M12 size
  • PA6 Polyamide UL94 V-2
  • Temperature range: -40°C to +150°C
  • Intermittent Temperature range: -45°C to +100°C
  • Environmental Sealing from dust, water, and other contaminants
  • Drains housings and enclosures extending equipment life
  • Extends service life
  • Suitable for internal and external usage

Thread size M12

IP66/67/68 Rated

up to IP56

Thread Length 12mm

Permanent -40 °C to +100 °C

Intermittent -45 °C to +150 °C

Download DatasheetView Related Products

Swipe to Browse

Part Number
Colour
Thread Size
Thread Length (mm)
Outer Diameter (mm)
Height (mm)
BPDRP-11 Light Grey M12x1.5 12 19 17
BPDRP-01 Grey M12x1.5 12 19 17
BPDRP-21 Black M12x1.5 12 19 17
Material Nylon PA66
IP Rating IP56
Colour RAL 7035 / RAL7001 / RAL 9005 (Light Grey, Black, Grey)
Thread M12x1.5
Thread Length (mm) 12
Accessory (not supplied) Drain Locknut

Specifications subject to change without notice.
