Drain Plugs Metal IP65 / IP66

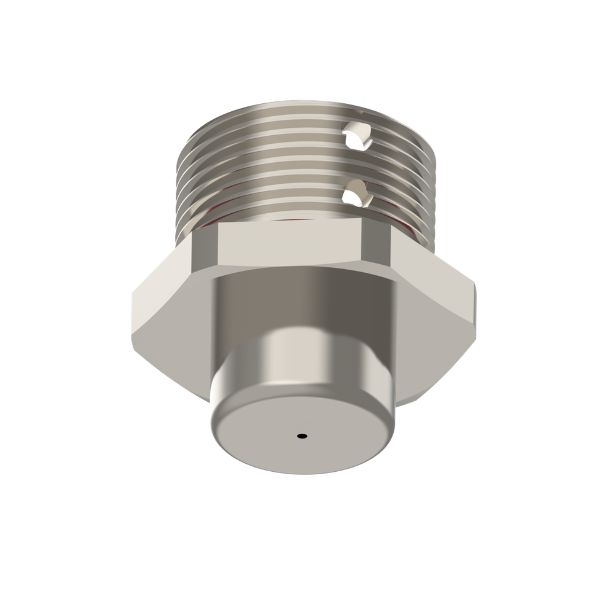

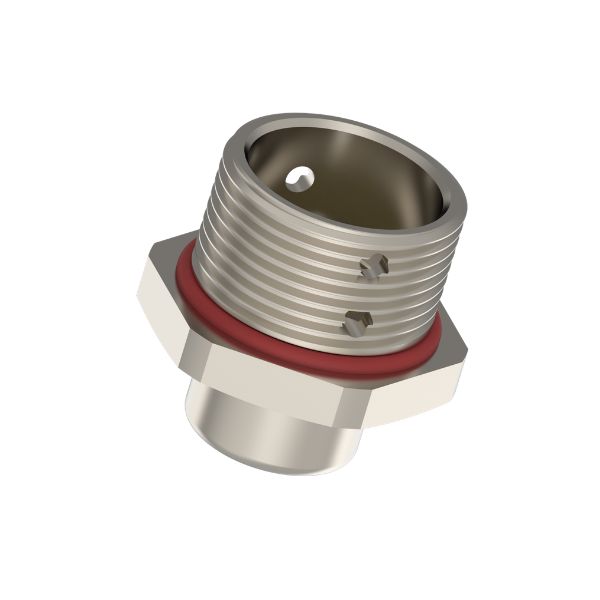

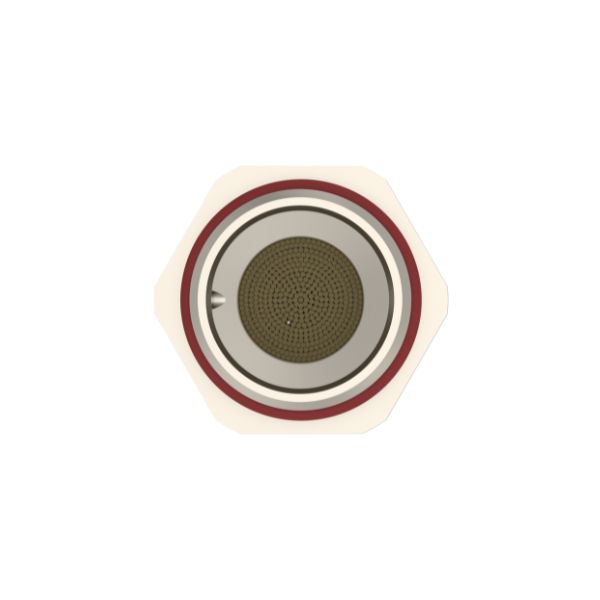

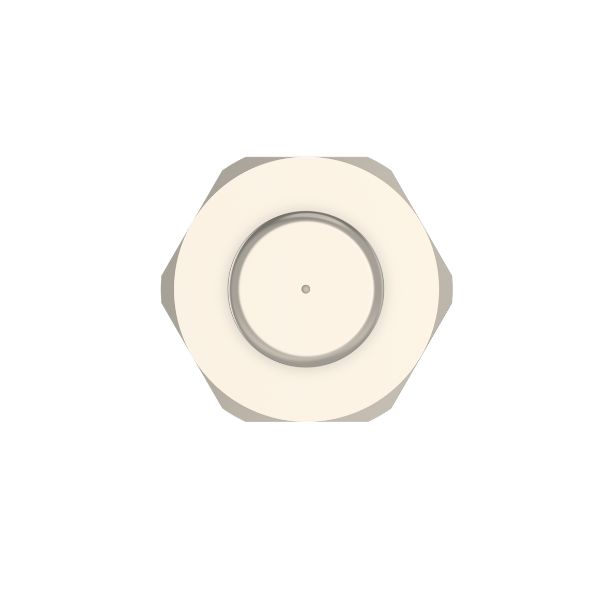

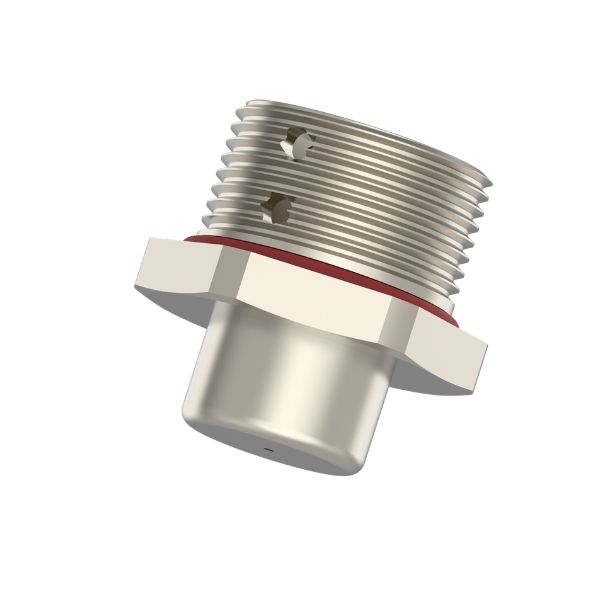

Metal Drain Plug — also referred to as sump plugs or stoppers — are mechanical components designed to safely discharge water or condensation build up inside a sealed housing or enclosure. Providing effective protection against water and contaminants whilst at the same time allowing controlled airflow and balancing air pressure within the housing. They are widely used in general electrical, industrial and lighting applications.
- Ingress Protection IP65, IP66
- Nickel Plated Brass
- Temperature range: -60°C to +85°C
- Allows the discharge of water and contaminants
- Extends service life
- Suitable for harsh industrial use both indoor and outdoor
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Thread Size
|
Housing Material
|
Thread Length (mm)
|
Outer Diameter (mm)
|
Height (mm)
|
|---|---|---|---|---|---|
| IBDRVY-1M | M20x1.5 | Nickel Plated Brass, Stainless Steel (1.4404/316L) | 15 | 27.5 | 16 |
| IBDRVY-2M | M25x1.5 | Nickel Plated Brass, Stainless Steel (1.4404/316L) | 15 | 27.5 | 16 |
| IBDRVY-1N | NPT 1/2 | Nickel Plated Brass, Stainless Steel (1.4404/316L) | 16 | 27.5 | 16 |
| IBDRVY-2N | NPT 3/4 | Nickel Plated Brass, Stainless Steel (1.4404/316L) | 16 | 33 | 16 |
| Material | Nickel Plated Brass |
| IP Rating | IP565, IP66 |
| O Ring Material | Silicone |
| Bushing Material | Bronze |
| Thread type | Metric and NPT |
| Thread Length (mm) | 15 / 16mm |
| Accessory (not supplied) | Drain Locknut |
Specifications subject to change without notice.
