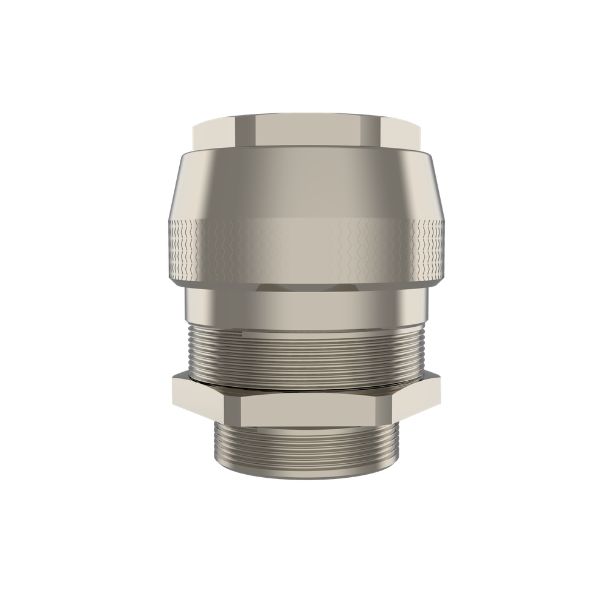

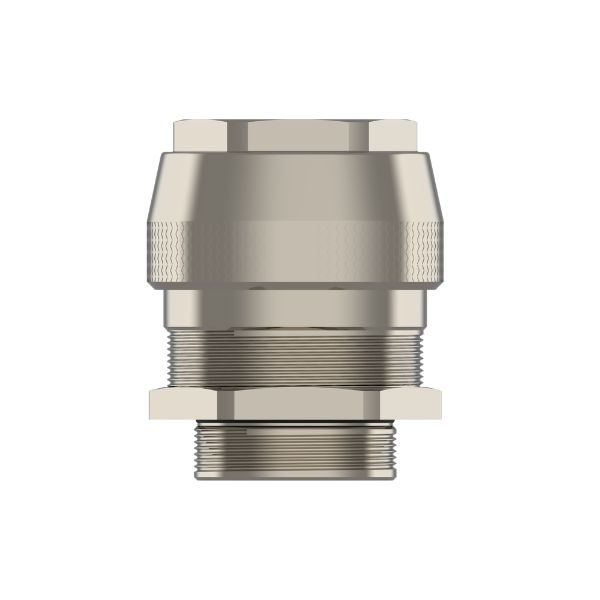

Conical Cage Cable Glands
Conical Cage cable glands are fully compliant to work with liquid cooled high power EV cables and perfect for charging station applicatios. They can also be used in industrial automation applications within harsh environments, such as mining, oil and gas.
Also known as captive cone or cone type glands, they offer a friction based clamping mechanism that distributes force over a wide area of the cable sheath. This helps prevent cold flow deformation, accommodating changes to a cables diameter and thus maintains the longevity of the IP rating. These are widely used to connect steel wire armoured cables to industrial equipment.
Also known as captive cone or cone type glands, they offer a friction based clamping mechanism that distributes force over a wide area of the cable sheath. This helps prevent cold flow deformation, accommodating changes to a cables diameter and thus maintains the longevity of the IP rating. These are widely used to connect steel wire armoured cables to industrial equipment.
- M50 metric sizing up to IP66 / IP68 5 Bar, 30 mins
- Utilizes innovative, friction-based clamping mechanism distributing force over a wide area of the cable sheath
- Prevents cold flow deformation, accommodates changes in cable diameter, and ensures long-lasting IP protection
- Up to 1000 N cable retention without damage
- Withstands high temperatures in fast-charging applications
- Prevents water, dust, and moisture ingress, even in extreme conditions
- Large-area friction-based clamping for stable sealing
- Suitable for indoor and outdoor installations
M50
IP66 / IP 68 (5 Bar, 30 min)
Cable OD Min 30mm
Cable OD Max 42mm
-40°C to +120°C
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|

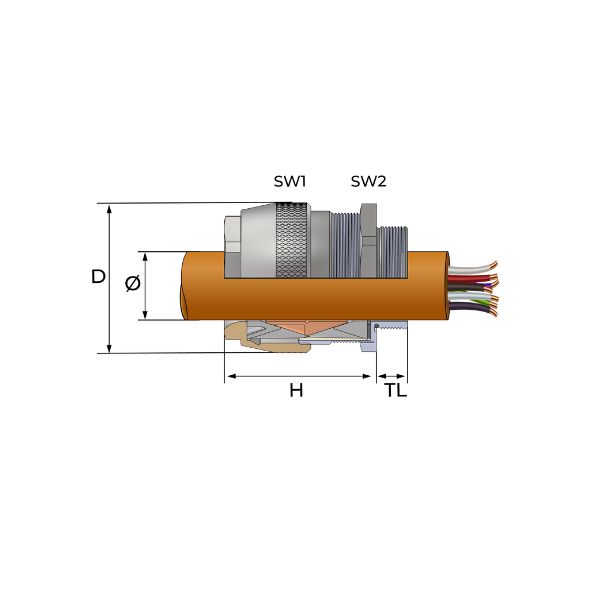

Part Number
|
Size
|
Thread Length (mm)
|
Min. Cable Ø (mm)
|
Max. Cable Ø (mm)
|
Spanner Width Cap (mm)
|
Spanner Width Body (mm)
|
Outer Ø (mm)
|
Max. Height (mm)
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|
| BCCCG-ESM-(TS) | M50 | 15 | 30 | 42 | 55 | 65 | 73 | 74 | Conical Cage Glands |
| BCCCG-ESM-(DS) | M50 | 15 | 34 | 42 | 55 | 65 | 73 | 74 | Conical Cage Glands |
| BCCCG-ESM | M50 | 15 | 38 | 42 | 55 | 65 | 73 | 74 | Conical Cage Glands |
| IP Rating | IP 68 - 5 Bar, 30 min, IP66 |
| Thread Options | M50 / NPT 1 1/2 |
| Body Material | Brass Nickel plated |
| Seal | CR (Chloroprene) |
| Clamping Insert | Polyamide 6 UL94-V2 |
| O-Ring | CR (Chloroprene) |
| Operating Temperature | Permanent -40°C to +100 °C / Intermittent -40 °C to +120 °C |
| Type Rating | 4X |
Specifications subject to change without notice.
