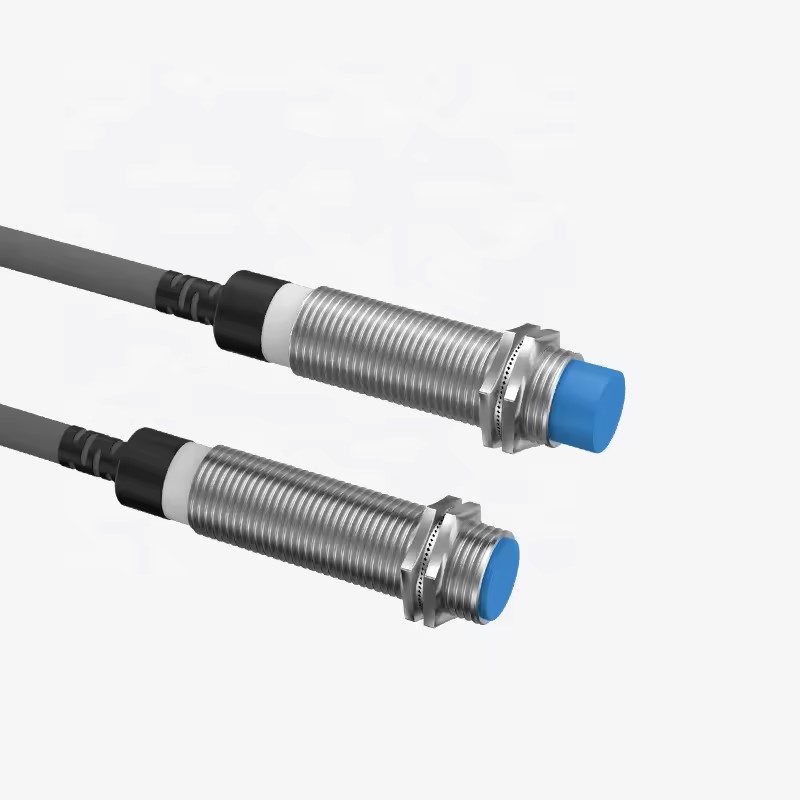

Capacitive Proximity Sensor

Home - Sensing - Position Sensors - Capacitive Proximity Sensor

Designed to offer an efficient way of detecting the presence or absence of nearby objects without the need for physical contact.

With the ability to detect granulated, liquid, solid and powdered materials from behind a plastic or glass partition, these sensors can be used for fluid level, proximity, humidity and position sensing applications.

NPN output or sinking output switches to 0V when target is detected, PNP output or sourcing output switches to supply voltage when target is detected.

A rugged design with IP67 sealing, it offers reverse polarity, short circuit and overload protection. It comes equipped with LED status indication and a potentiometer within the sensor to enable sensing distance adjustability.
  • Nickel plated Brass, Stainless Steel or ABS housing materials
  • Available in M8 through to M30 threaded housings
  • NPN or PNP output
  • Sealed to IP67
  • Adjustable Sensing with a range of up to 15mm
  • Short circuit, overload and reverse polarity protection
  • LED Status indication

10-30 VDC

IP66/67/68 Rated

up to IP67

PNP or NPN output

Up to 15mm sensing range

Agriculture - Markets at Lucid Electronics

Ideal for Agriculture

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Housing Size
Housing Material
Output type
Switch Function
Sensor Profile
Sensing distance ±10%
Supply voltage
Termination
Ingress Protection
Sensing Face
LCS-A-M08-N-SS-A M8 Stainless Steel NPN NO Non Flush 3.8mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M08-P-SS-A M8 Stainless Steel PNP NO Non Flush 3.8mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M08-N-SS-B M8 Stainless Steel NPN NC Non Flush 3.8mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M12-N-SS-A M12 Stainless Steel NPN NO Non Flush 6.4mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M12-P-SS-A M12 Stainless Steel PNP NO Non Flush 6.4mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M12-N-SS-B M12 Stainless Steel NPN NC Non Flush 6.4mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M12-P-SS-B M12 Stainless Steel PNP NC NonFlush 6.4mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M30-N-AB-A-F M30 ABS NPN NO Flush 15mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M30-P-AB-A-F M30 ABS PNP NO Flush 15mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M30-N-AB-B-F M30 ABS NPN NC Flush 15mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M08-P-SS-B M8 Stainless Steel PNP NC Non Flush 3.8mm 10-30V 2000mm cable IP67 Plastic
LCS-A-M30-P-AB-B-F M30 ABS PNP NC Flush 15mm 10-30V 2000mm cable IP67 Plastic
Housing M8 to M30
Sensing Range Up to 15mm
Switching Frequency ≤30Hz
Output Type PNP or NPN
Wiring 3 wires
Supply Voltage 10-30VDC
Current consumption (no load) ≤10mA
Sealing IP67
Operating Temperature -20°C…+70°C
Load current 100mA

Specifications subject to change without notice.
