Cable Plates multiple entry system

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Cable Plates multiple entry system

Cable plates, also known as cable entry frames offer IP65 ingress protection with up to 29 cable entries. Supplied in RAL 7035 (light grey) or RAL 9005 (Black). Designed to accommodate multiple non terminated cables securely and in an organized fashion through enclosures, panels and bulkheads. Compatible with various cable types and diameters it allows a high density of cables to pass through a small area whilst maintaining environmental protection. Manufactured using Glass Fiber reinforced Nylon with a high protection against moisture, dust and water ingress making them ideal for industrial applications in both indoor and outdoor environments.
  • Glass fiber reinforced polyamide housing
  • Butyl (IIR) Rubber membrane material
  • Ingress Protection to IP65
  • Suitable for both indoor and outdoor use in industrial environments
  • Wide number of cable entries
  • Temperature range: -40°C to +80°C
  • Gives a cost effective and space saving solution for multiple cable management
  • Type Rating:- 1, 4, 4X, 12, 13
IP66/67/68 Rated

Ingress Protection IP65

IP66/67/68 Rated

Membrane Material Butyl (11R) Rubber

Number of cable entries 0-29

 Clamping range 3-13mm

Operating Temperature -40°C to +80°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Number of cable entries
Clamping range (mm)
Width (mm)
Height (mm)
Depth
Colour
BRM00 0 (blind or blanking) N/A 148 60 13.5 Light Grey / Black

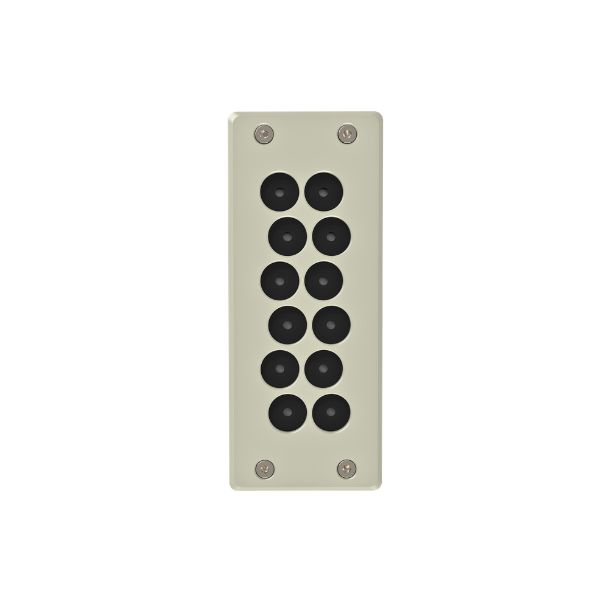

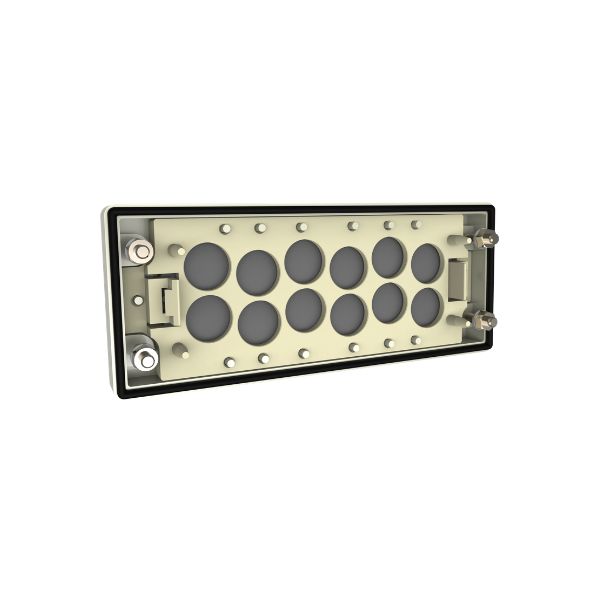

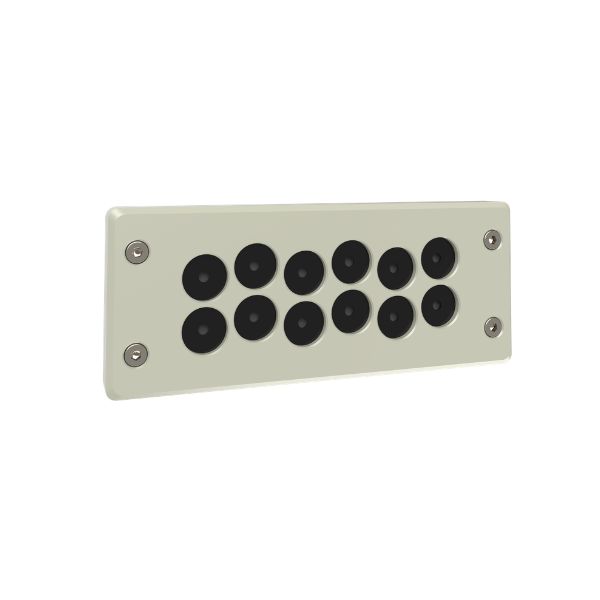

BRM00 12 4-13 148 60 13.5 Light Grey / Black

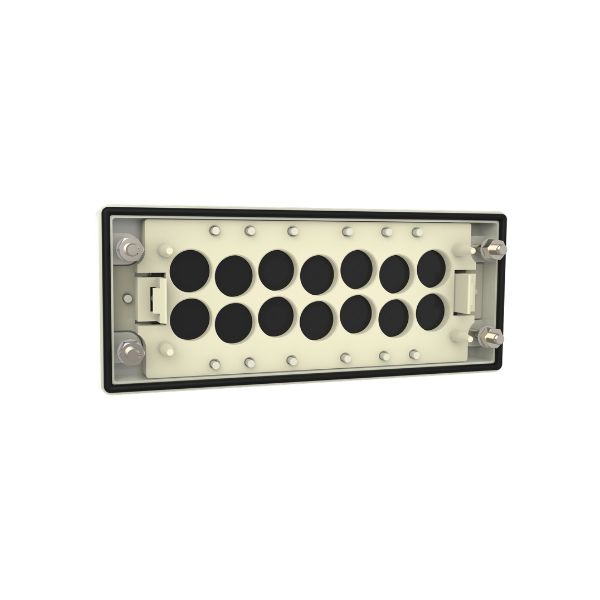

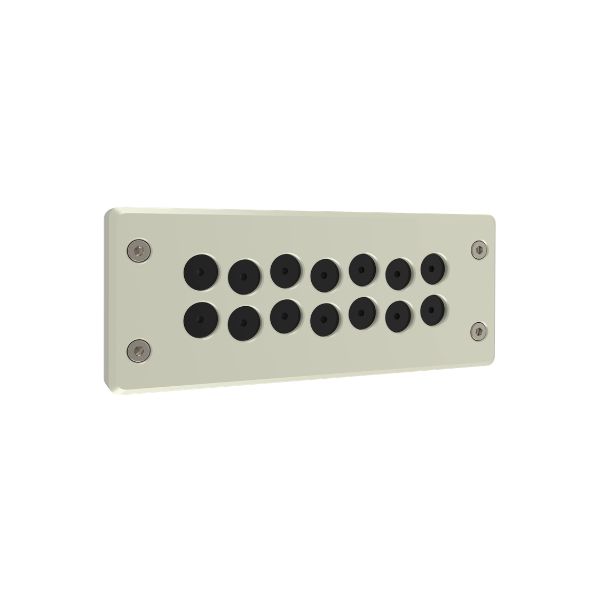

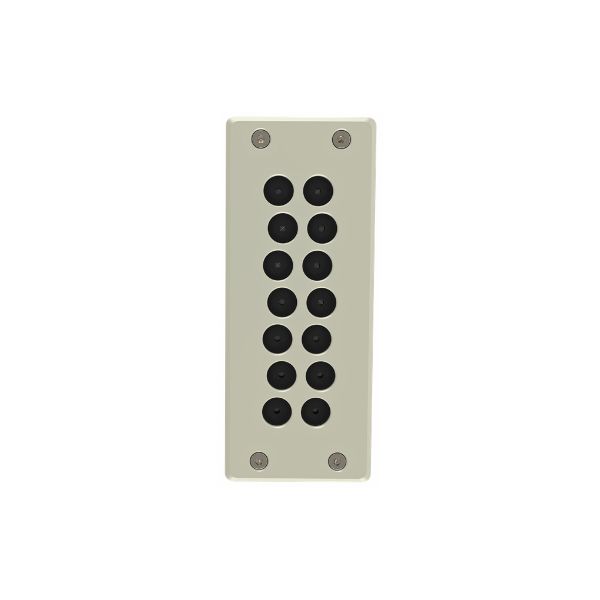

BRM00 14 5-11 148 60 13.5 Light Grey / Black

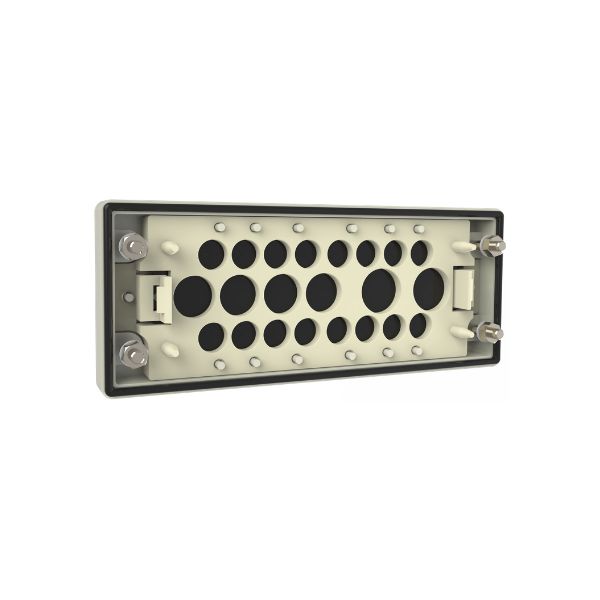

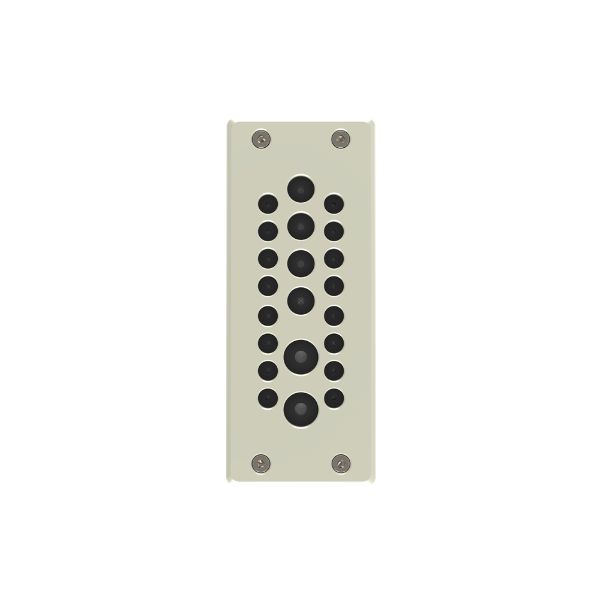

BRM00 16 + 4 + 2 (22) 16 x 3-6.5, 4 x 5-9.2, 2 x 8-12.5 148 60 13.5 Light Grey / Black

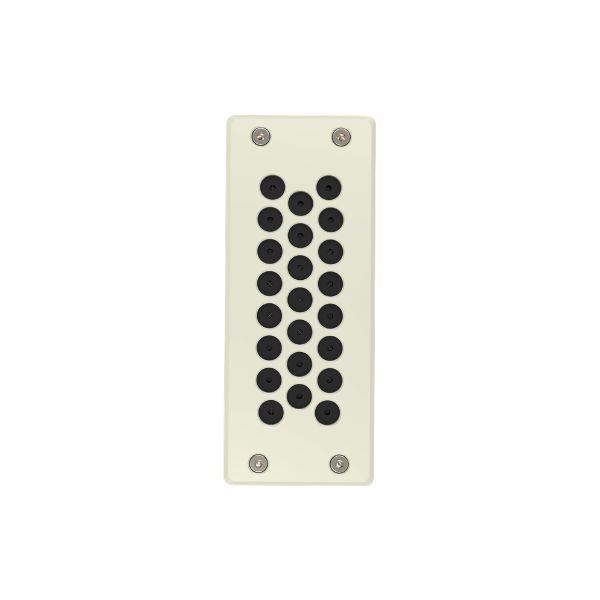

BRM00 23 4-8.5 148 60 13.5 Light Grey / Black

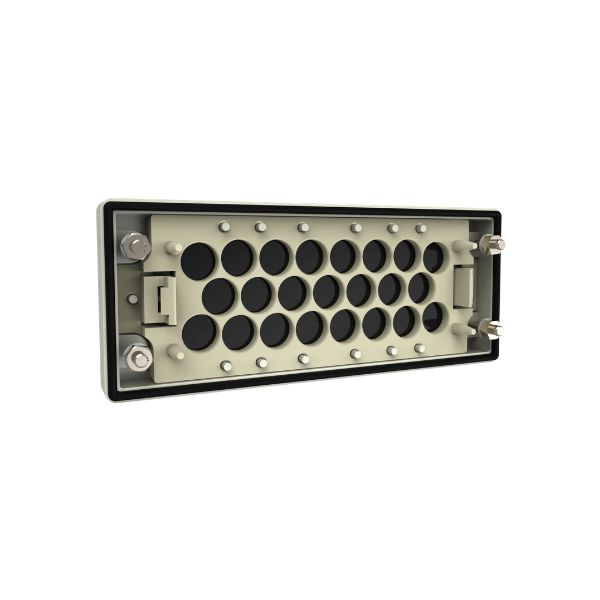

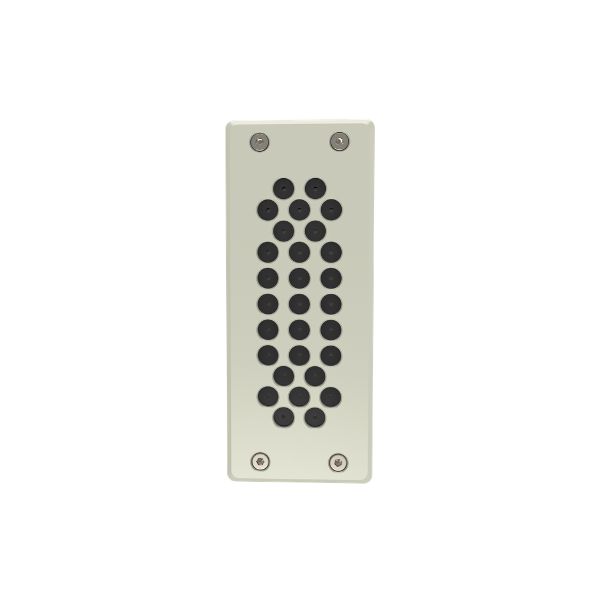

BRM00 29 4-7 148 60 13.5 Light Grey / Black
Cable Clamping range 3-13mm
Body Material Glass fiber reinforced Polyamide
Number of cable entries 0-29
Ingress Protection IP65
Ingress Protection material Butyl (IIR) Rubber
Spacer Material Neoprene
Obstruction Membrane Material Polyurethane
Frame seal material Silicone or Polyurethane

Specifications subject to change without notice.
