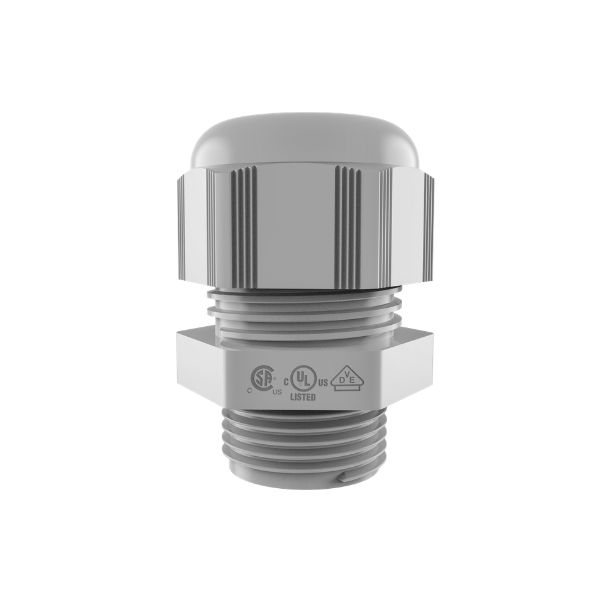

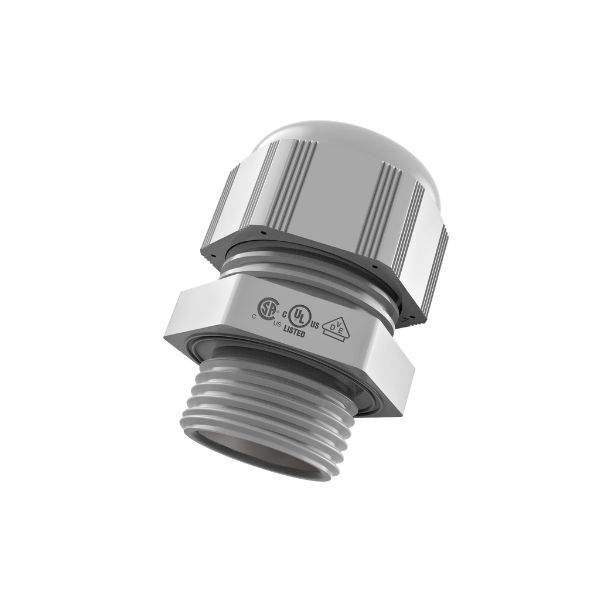

Cable Glands RJ45 Plastic
RJ45 Plastic Cable Glands provide robust, durable cable entry solutions for industrial and automation applications. Crafted from high-quality Polyamide 6 V2 acc. to UL 94, they ensure secure strain relief, IP66 / IP68 (5 Bar, 30 min) sealing, and reliable performance across harsh environments. Ideal for machinery, control panels, surveillance systems and outdoor installations requiring long-term electrical and mechanical integrity.

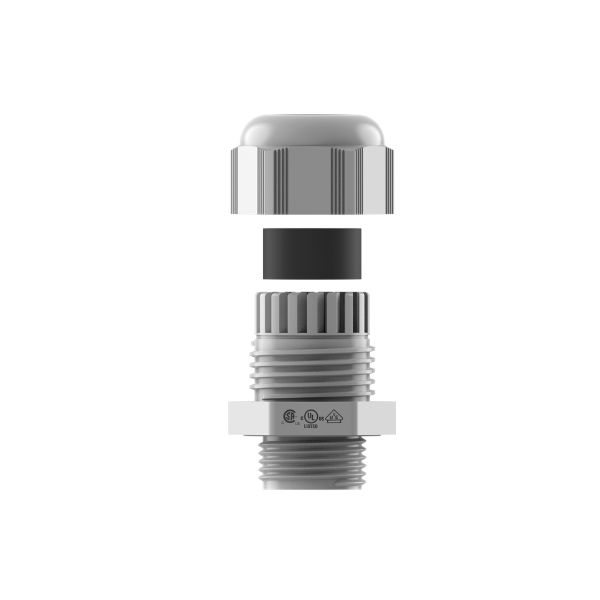

- Enables the installation of cables with RJ45 connectors thanks to its slotted rubber seal.
- Standard Metric M20 to M25
- Suitable for both indoor and outdoor use in industrial environments
- High protection against dust, moisture, and water ingress
- High tensile strength and reliable strain relief
- Durable design with quick and easy assembly
- Compatible with multi-hole sealing inserts
- Manufactured from halogen-free polyamide material
- VDE, UL, CSA approved
- Available as standard in Light Grey (RAL7035) / Grey (RAL7001) / Black (RAL9005), other colours available on request
M20 – M25
IP66 / IP68
Cable OD Min. 3mm
Cable OD Max. 6mm
-40 °C to +150 °C
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|

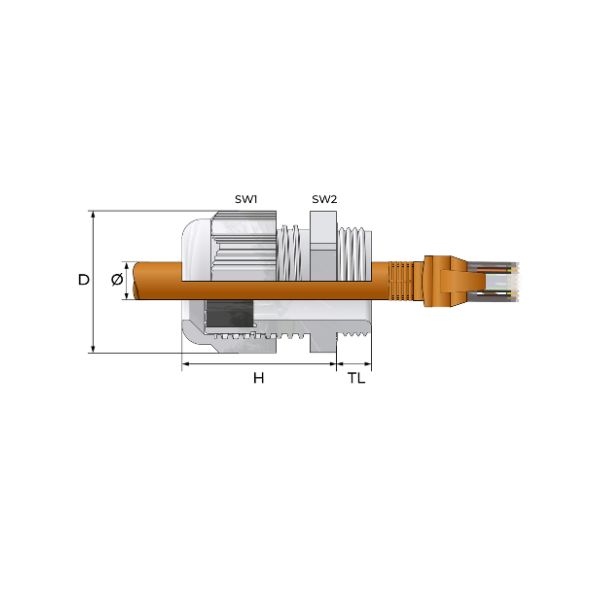

Size
|
Thread Length (mm)
|
Min. Cable Ø (mm)
|
Max. Cable Ø (mm)
|
Spanner Width Cap (mm)
|
Spanner Width Body (mm)
|
Outer Ø (mm)
|
Max. Height (mm)
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 10 / 15 | 3 | 6 | 15 | 15 | 17 | 25.3 | Standard Plastic Glands |
| M25x1,5 | 8 / 10 / 15 | 3 | 6 | 27 | 27 | 29 / 33 | 29 / 33 | Standard Plastic Glands |
| IP Rating | IP 68 (5 Bar, 30 min), IP 66 |
| Thread Options | Metric M20 to M25 |
| Colour | Light Grey RAL 7035 / Grey RAL7001 / Black RAL 9005 |
| Body Material | PA 6 (Polyamide 6) |
| Seal | CR (Chloroprene) |
| Operating Temperature | Permanent -20°C to +100 °C / Intermittent -40 °C to +150 °C |
| Approvals | CSA, VDE, UL |
| Accessories | Lock nuts / Multi-hole seals / Gaskets (Washers) |
Specifications subject to change without notice.
