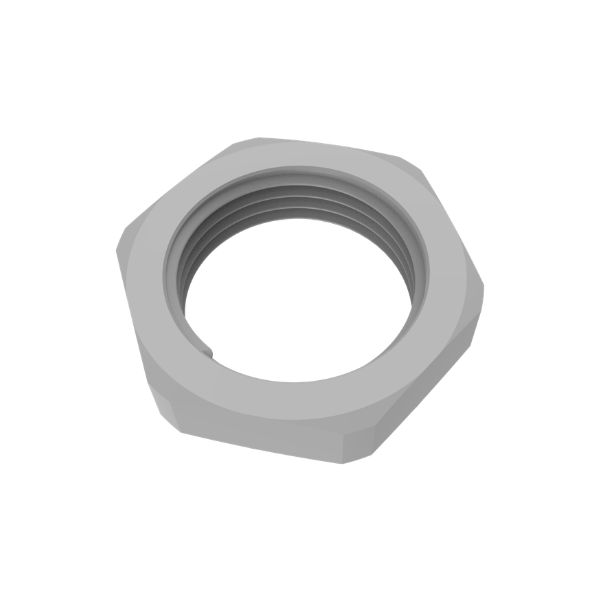

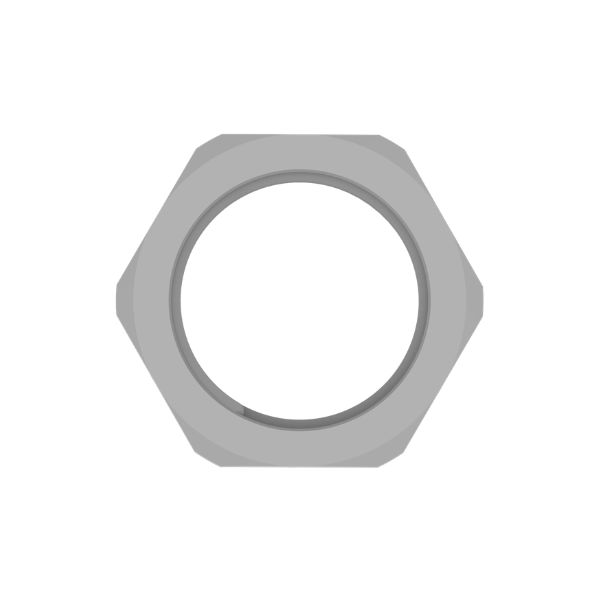

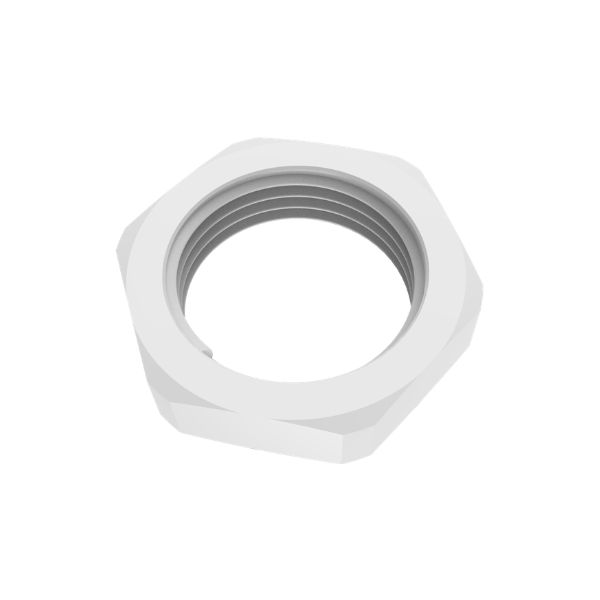

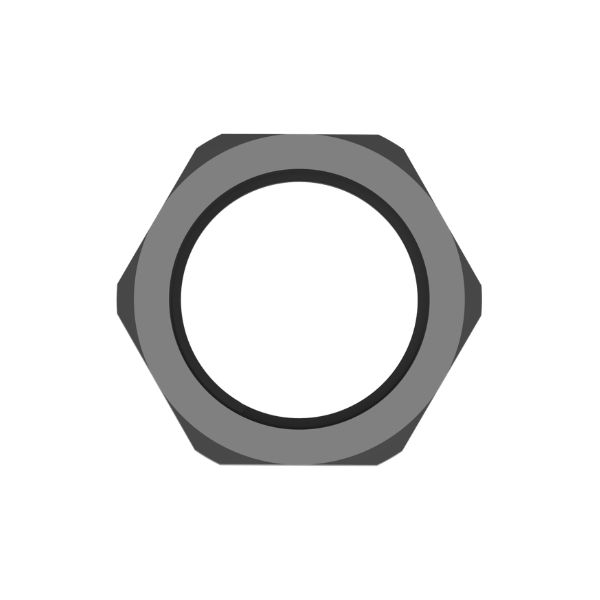

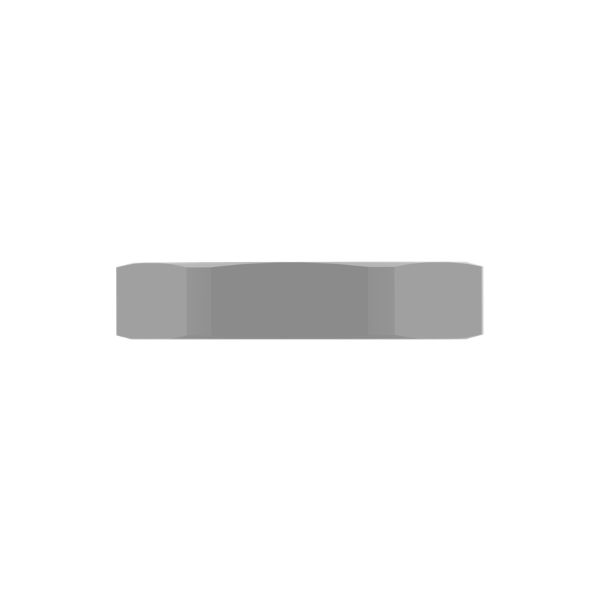

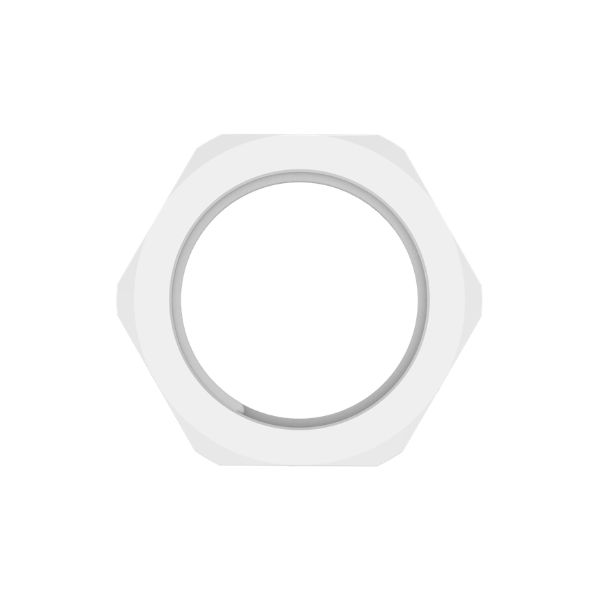

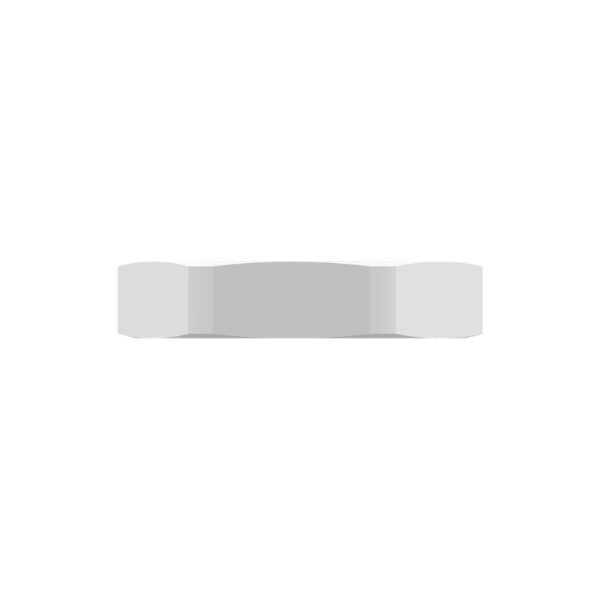

Cable Gland non flanged Polyamide Locknuts

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Cable Gland non flanged Polyamide Locknuts

Accessories

Rated HB under UL 94 for flammability, these Metric and PG size Locknut accessories are for use with cable glands in enclosures and housings with non threaded cable entry holes. Made from Polyamide 6 with a 30% glass fiber reinforcement giving them improved thermal stability and higher tensile strength over standard Nylon.
  • Suitable for both indoor and outdoor use in industrial environments
  • Light Grey, Grey and Black colour options (RAL7035, RAL7001, RAL9005)
  • PA with 30% glass fiber reinforcement
  • Wide variety of Metric and PG thread sizes
  • Flammability rating - HB according to UL94
  • For use in enclosures and housings with non threaded holes

M6-M63 / PG 7-PG 48

HB according to UL94

Width across the flats 10-75mm

Outer Diameter 11-82.5mm

Operating Temperature -20°C to +100°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Thread Size
Colour
Width Across the flats
Outer Ø (mm)
Max. Height (mm)
BLMN-2S6 M6x0.75 Black 10 11 5
BLMN-2S8 M8x1.0 Black 12 13 5
BLMN-2S M12x1.5 Black 18 19.5 5
BLMN-21 M16x1.5 Black 22 24.2 5
BLMN-22 M20x1.5 Black 26 28.6 6
BLMN-23 M25x1.5 Black 32 35 6
BLMN-24 M32x1.5 Black 41 46.1 7
BLMN-25 M40x1.5 Black 50 55.3 7
BLMN-26 M50x1.5 Black 60 66.1 8
BLMN-27 M63x1.5 Black 75 82.5 8
BLN-21 PG 7 Black 19 20.9 5
BLN-22 PG 9 Black 22 23.9 5
BLN-23 PG 11 Black 24 25.9 5
BLN-24 PG 13.5 Black 27 28.9 6
BLN-25 PG 16 Black 30 32.9 6
BLN-26 PG 21 Black 36 38.8 7
BLN-21 PG 27 Black 46 49.8 7
BLN-28 PG 36 Black 60 65.7 8
BLN-29 PG 42 Black 65 72.7 8
BLN-30 PG 48 Black 70 77.7 8
Colour Light Grey, Grey and Black colour options
Thread Options M6-M63 / PG7-PG48
Body Material Polyamide 6 (30% glass fiber reinforced)
Operating Temperature -20°C to +100 °C

Specifications subject to change without notice.
