Cable Gland Metal Locknuts

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Cable Gland Metal Locknuts

Accessories

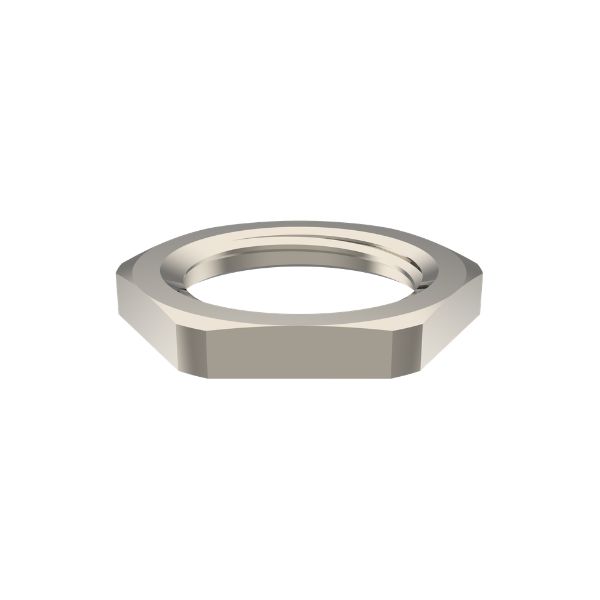

Stainless steel or Nickel Plated Brass Locknuts, these Metric and PG size Locknut accessories are for use with cable glands in enclosures and housings with non threaded cable entry holes. Offering a Fine thread (F), much improved corrosion resistance, thermal resilience and vibration resistance these are ideal where requirements are for strength and durability.
  • Suitable for both indoor and outdoor use in industrial environments
  • Wide variety of Metric and PG thread sizes
  • For use in enclosures and housings with non threaded holes
  • Stainless Steel or Nickel Plated Brass Housing

M12-M130 / PG 7-PG 48

Fine Thread (F)

Width across the flats 17-150mm

Outer Diameter 16.6-167mm

Operating Temperature -40°C to +150°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts

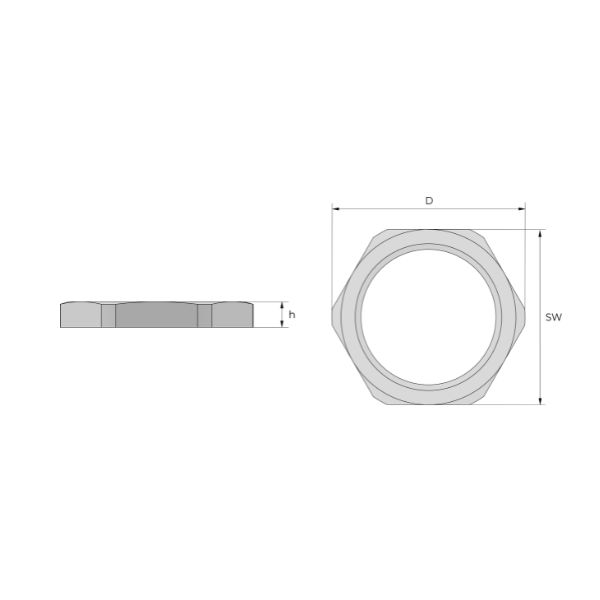

Part Number
Thread Size
Width Across the flats
Outer Ø (mm)
Max. Height (mm)
BMBL-01 M12x1.5 15 16.6 2.8
BMBL-02 M16x1.5 19 21 3
BMBL-03 M20x1.5 24 26.5 3.5
BMBL-04 M25x1.5 30 33 4
BMBL-05 M32x1.5 36 39.5 5
BMBL-06 M40x1.5 46 51 5
BMBL-07 M50x1.5 60 66 5
BMBL-78S M60x1.5 68 75 6
BMBL-08 M63x1.5 70 77 6
BMBL-09S M70x1.5 75 83 7
BMBL-09 M72x2.0 77 86 7
BMBL-10S M75x1.5 80 89 7
BMBL-10 M75x2.0 80 89.6 7
BMBL-11S M80x1.5 90 100 8
BMBL-11 M80x2.0 90 100 8
BMBL-12S M85x1.5 95 106.2 8
BMBL-12 M85x2.0 95 106.2 8
BMBL-13S M90x1.5 100 112 8
BMBL-13 M90x2.0 100 112 8
BMBL-14S M100x1.5 120 128 10
BMBL-14 M100x2.0 120 128 10
BMBL-15S M110x1.5 130 145 10
BMBL-16 M115x2.0 135 151 10
BMBL-18 M130x2.0 150 167 12
BSL-01 PG 7 17 18.6 2.8
BSL-02 PG 9 19 21 2.8
BSL-03 PG 11 22 24.5 3
BSL-04 PG 13.5 24 26.5 3
BSL-05 PG 16 27 30 3
BSL-06 PG 21 32 35.5 3.5
BSL-07 PG 29 41 45 4
BSL-08 PG 36 60 66 5
BSL-09 PG 42 60 66 5
BSL-10 PG 48 65 71.5 5.5
Thread Options M12-M130 / PG7-PG48
Body Material Nickel Plated Brass / Stainless Steel

Specifications subject to change without notice.
