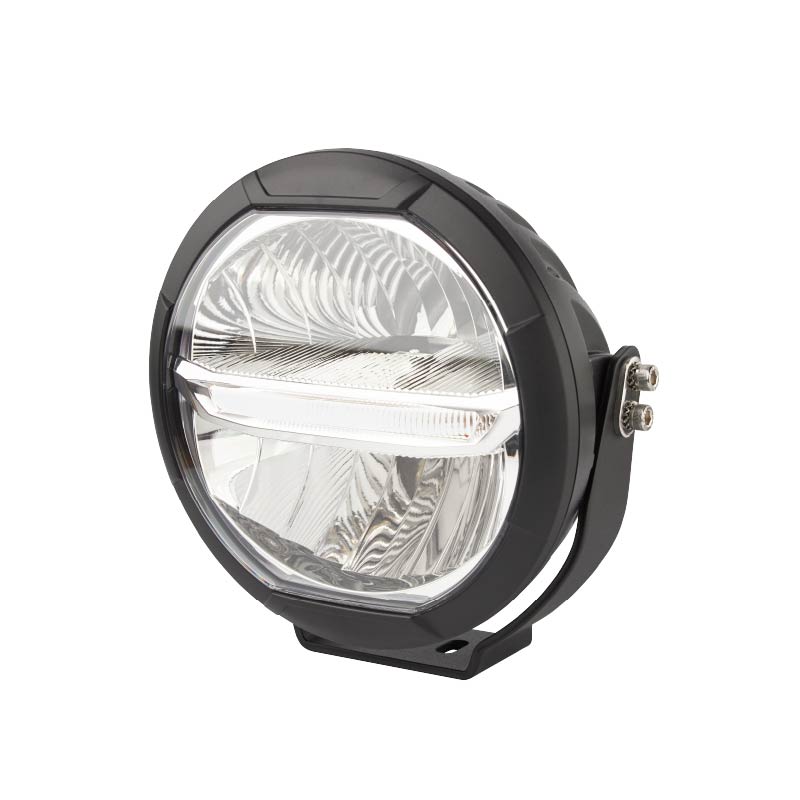

C2-7622 LED Driving Light with Position Light

The C2-7622 is a modern-styled approved driving light with a compact, circular shape, designed for harsh environments. It features a sealed aluminium housing and a polycarbonate lens. The light is equipped with high-performance automotive-grade LEDs, emitting a bright white light with a lumen output of 2,000 lumens. It operates within a wide voltage range of 9-33VDC, consuming 32W of power. With an IP68 ingress rating, it is fully protected against dust and water ingress. The light is designed to withstand vibrations up to 8G and operates in temperatures ranging from -30°C to +65°C. It is approved under ECE R10 and holds ECE R148 and ECE R149 certifications. Mounted via a twin-bolt swing bracket, it is ideal for bull bar installations on off-road and commercial vehicles, providing enhanced night time visibility and improved daytime safety with its integrated position light.

9 – 33 V

Narrow Flood Beam

Narrow Beam

2000 Lm

32 W

IP66/67/68 Rated

IP68

Download DatasheetView Related Products

Swipe to Browse

Housing Shape Round
Beam Pattern Narrow
Raw Lumen Output 2000 Lm
Effective Lumen Output 1300 Lm
Colour Temperature 5700K
Beam Distance 1 Lux @ 405m
Voltage 9-33 VDC
Power Consumption 32 W
Operating Temp Range -30°C...+65°C
Ingress Protection Rating IP68
Housing Material Aluminium
Lens Material Polycarbonate
Termination
Dimensions 198.3 x 208.5 x 112 mm
Mounting Style Double Bolt
EMC ECE R10
Approvals ECE R148 / ECE R149

Specifications subject to change without notice.
