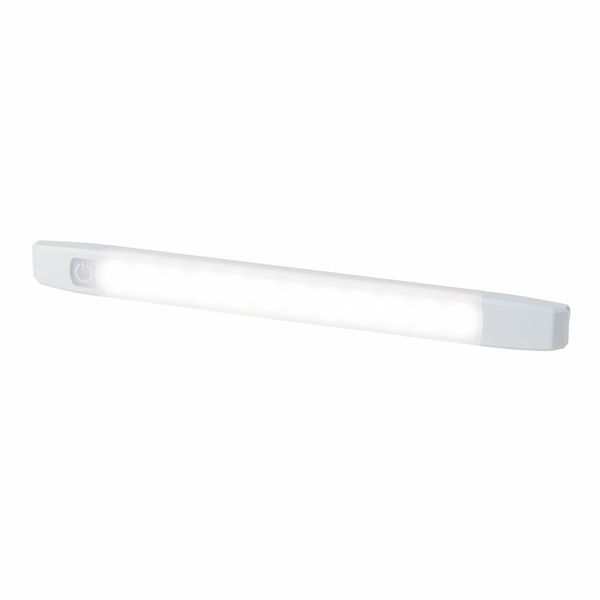

C2-635W 285mm Switched Strip Lamp
The C2-635W is a rectangular strip lamp measuring 285mm in length, 25mm in width, and 12.8mm in height. It features high-efficiency LEDs emitting a cool-white light with a colour temperature of 5700K and a lumen output of 540 lumens. Operating at 12-24VDC, it consumes 3.8W of power and is sealed to IP66, making it suitable for both internal and external use. The lamp operates in temperatures ranging from -30°C to +65°C and complies with EN60945 standards. It includes a built-in touch switch and is commonly used in mobile homes, lorry cabs, coaches and marine applications.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
| Housing Shape | Rectangular |
| Mounting Style | Surface Mount |
| Colour Temperature | 5700K |
| Effective Lumen Output | 540 Lm |
| Max Illuminance @ 50cm | 390 Lux |
| Switch Function | Touch Switch |
| Voltage | 12-24 VDC |
| Power Consumption | 3.8 W |
| Ingress Protection Rating | IP66 |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | |
| Lens Material | |
| Termination | |
| Dimensions | 285 x 25 x 12.8 mm |
| EMC | EN60945 |
| Accessories | 2 screws |
Specifications subject to change without notice.
