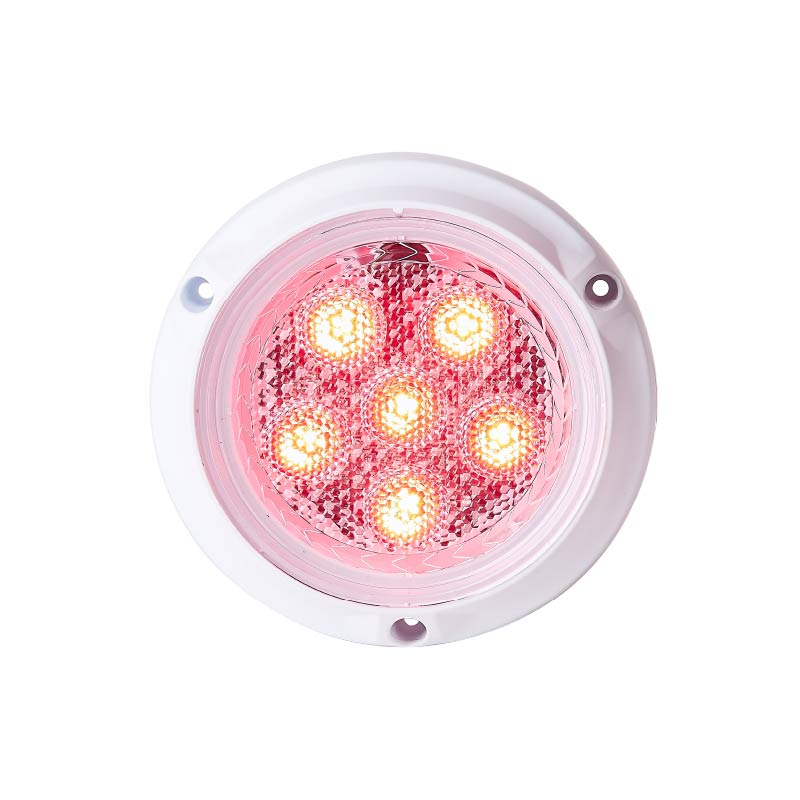

C2-528 Series 134mm Marine LED underwater Light
The C2-528 series is a 134 mm diameter underwater light designed for efficiency and reliability, offering low power consumption and a choice of red, white or blue LED illumination. Built to withstand the toughest marine environments, it is fully sealed to IP68 / IP69K and supplied with 310 mm of galvanized UL-approved cable. The housing is made from a thermally conductive polymer and approved to EN60945, meeting marine electromagnetic compatibility standards. Beyond performance, the C2-528 adds a refined aesthetic touch, enhancing underwater ambience and visibility even in poor lighting conditions. Suitable for installation above or below the waterline, it is also transom-compatible, making it a versatile choice for marine lighting applications.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
LED Colour
|
LED Colour Temperature
|
Lumen Count
|
Beam Pattern
|
Ingress Protection
|
Housing Material
|
|---|---|---|---|---|---|---|---|---|
| C2-528W | 9-33 VDC | 14W at 12V, 16W at 24V | White | 5700K | 1050 Lumen | Wide Flood | IP68 / IP69K | Thermally Conductive Plastic |
| C2-528U | 9-33 VDC | 14W at 12V, 16W at 24V | Blue | 470nm | N/A | Wide Flood | IP68 / IP69K | Thermally Conductive Plastic |
| C2-528R | 9-33 VDC | 14W at 12V, 16W at 24V | Red | 623nm | N/A | Wide Flood | IP68 / IP69K | Thermally Conductive Plastic |
| Housing Shape | Round |
| Beam Pattern | Flood |
| Raw Lumen Output | 1050 lm ~ white |
| Effective Lumen Output | 950 lm |
| Colour Temperature | 5700K |
| Voltage | 9 -33 VDC |
| Nominal Current at | |
| Power Consumption: | 14 W @ 12V / 16 W @ 24V |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Thermally conductive polymer |
| Lens Material | Polycarbonate |
| Dimensions | 134.2 x 30.6mm |
| Mounting Style | 3 screws |
| Termination | 310mm wire |
| EMC | EN60945 |
| Approvals |
Specifications subject to change without notice.
