C2-3030 Marine LED Deck Light

Home - Lighting - Search & Flood Lights - C2-3030 Marine LED Deck Light

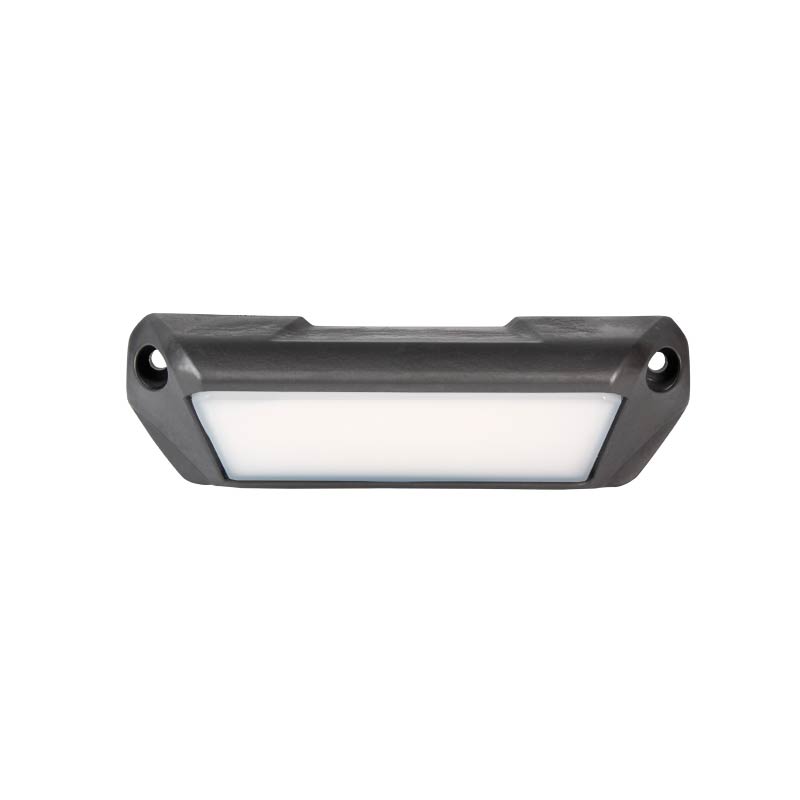

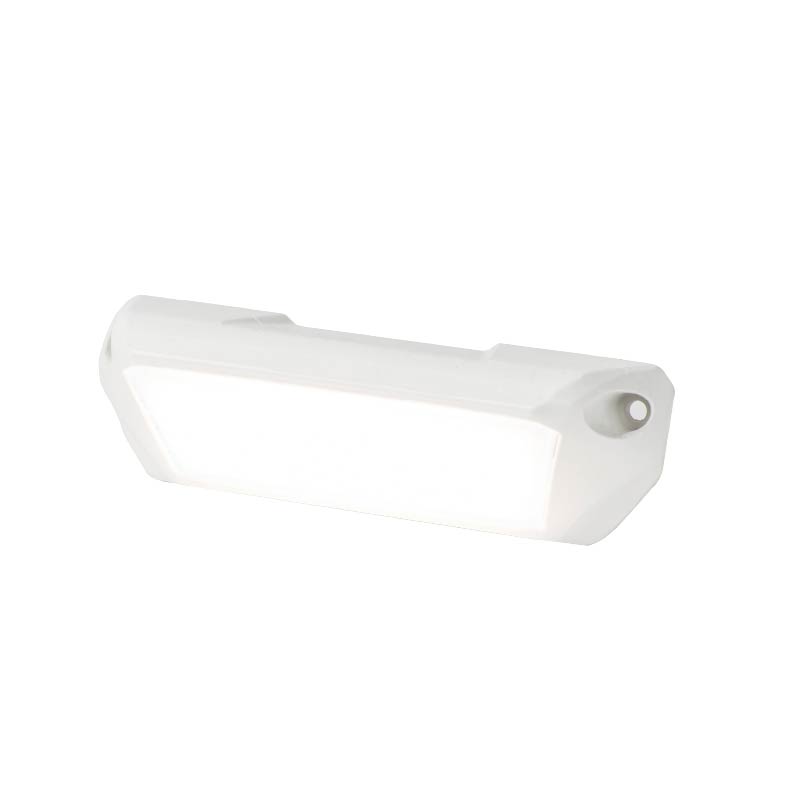

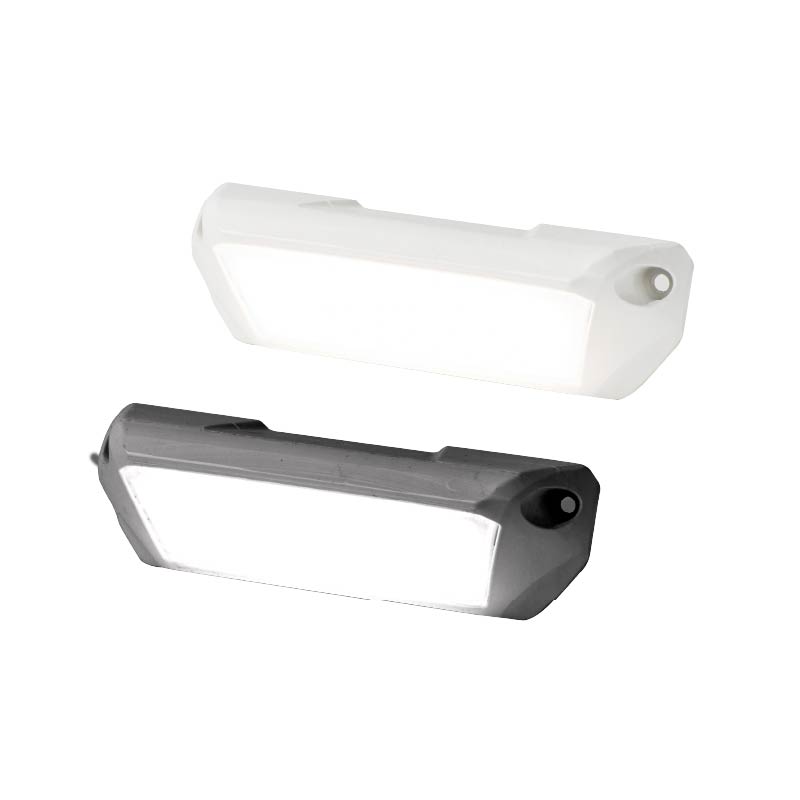

The C2-3030 is a powerful small bright light that can operate both as a scene lamp and a deck lamp. It has an IP68 / IP69K ingress protection rating and is housed in a formulated plastic housing enabling it to withstand high pressure, high temperature washdowns as well as the harshest of conditions. It is approved under EN 60945, ensuring compliance with Marine electromagnetic compatibility standards. It meets ISO13766, ECE R10 and CISPR25 CLASS 3. This can also be supplied in a black plastic housing.

9 – 33VDC

Flood Beam

Flood

900 lm

10.6W

IP66/67/68 Rated

IP68/IP69K

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
Housing Shape Rectangular
Beam Pattern Flood
Lux at 50 cm 1020 lux
Effective Lumen Output 900 lm
Colour Temperature 5700K
Voltage 9-33 VDC
Nominal Current at
Power Consumption: 10.6 W
Ingress Protection Rating IP68 / IP69K
Shock Resistance
Operating Temp Range -30°C...+65°C
Housing Material Thermally conductive plastic
Lens Material Polycarbonate
Dimensions 152.4 x 47 x 44.5 mm
Mounting Style two screws
Termination 200 mm cable
EMC EN60945
Approvals ISO13766, ECE R10, CISPR25 CLASS 3

Specifications subject to change without notice.
