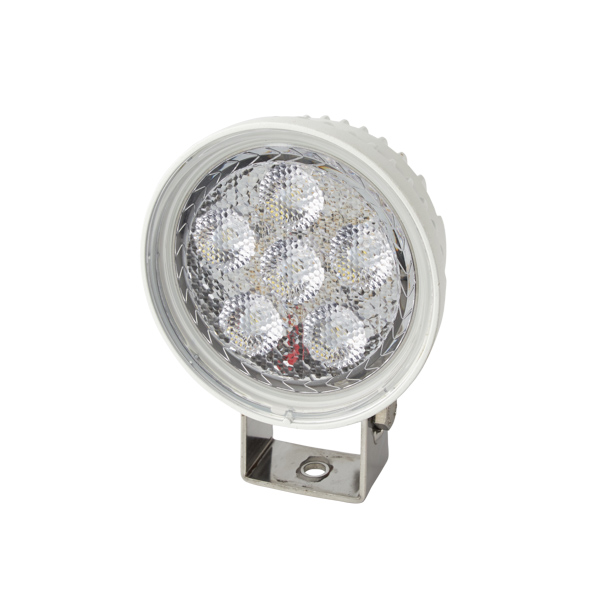

C2-300 Slimline Round LED Work Light
The C2-300 is a slimline round LED work light designed for durability and efficiency. It features an aluminium housing and a polycarbonate lens, with six 3W LEDs providing bright and uniform illumination with a Lumen output of 2700 lm. Operating within a voltage range of 9-33VDC, it consumes 14W of power, ensuring reliable lighting with low energy usage. The light is designed to withstand harsh conditions, with an IP68/IP69K rating for protection against dust and water, and it offers excellent 10G shock resistance. Approved under ECE R10, ISO 13766, and CISPR 25 Class 5, it meets international standards for electromagnetic compatibility. The LEDs emit a cool white light, improving visibility in low-light conditions. This work light is available with both Flood and Wide Flood options and are ideal for use in specialist, agricultural and construction vehicles. A Marine qualified version of this light is available.
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Voltage
|
Power Consumption
|
LED Colour Temperature
|
Raw Lumen Output
|
Effective Lumen Output
|
Beam Type
|
Ingress Protection
|
Shock Resistance
|
EMC
|
|---|---|---|---|---|---|---|---|---|---|
| C2-300A | 9-33VDC | 14W | 5700K | 2700 Lumen | 1000 Lumen | Flood Beam 70m | IP68 | 10G | ECE R10, ISO13766, CISPR25 Class5 |
| C2-300B | 9-33VDC | 14W | 5700K | 2700 Lumen | 1000 Lumen | Wide Flood Beam 55m | IP68 | 10G | ECE R10, ISO13766, CISPR25 Class5 |
| Housing Shape | Round |
| Beam Pattern | Flood |
| Raw Lumen Output | 2700 Lm |
| Effective Lumen Output | 1000 Lm |
| Colour Temperature | 5700K |
| Voltage | 9 - 33 VDC |
| Nominal Current at | 1.2A at 12V |
| Power Consumption | 14 W |
| Ingress Protection Rating | IP68 / IP69K |
| Shock Resistance | 10G |
| Operating Temp Range | -30°C...+65°C |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 110 x 50 x 141 mm |
| Mounting Style | Single Bolt |
| Termination | 150mm wire Deutsch DT04-2P |
| EMC | ISO13766, CISPR25 CLASS5 |
| Approvals | ECE R10 |
Specifications subject to change without notice.
