Blind Plugs Metal

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Blind Plugs Metal

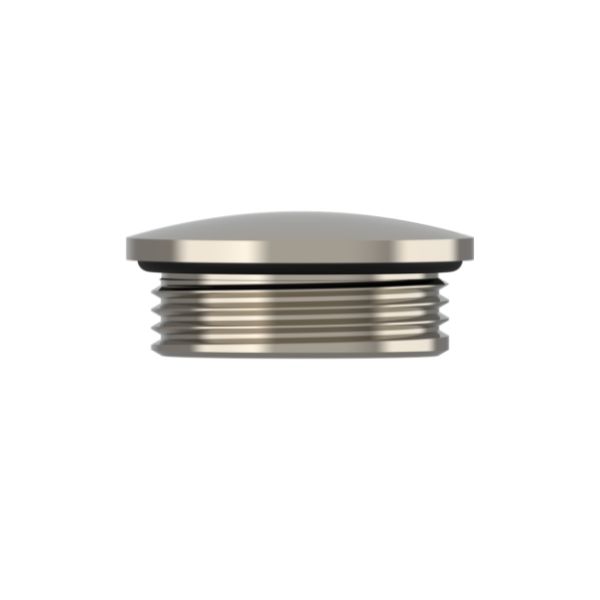

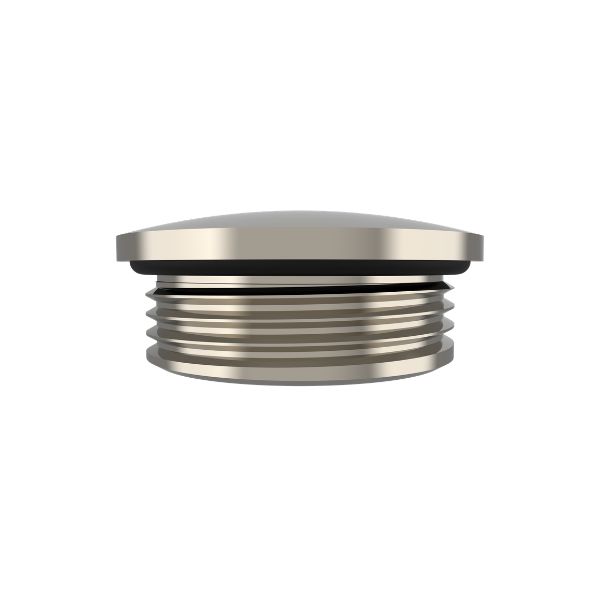

Blind plugs, also known as blanking plugs or cap plugs are used to seal cable entry and exit points in housings or enclosures where they are not in use. These Nickel plated Brass blind plugs give an IP68 sealing and can be sealed via a silicone O-ring giving a temperature rating of -60°C to +140°C and a operating temperature of -30°C to +100°C when sealed with a Nitrile Butadiene Rubber making them ideal in tough environments.
  • A nickel plated brass or Stainless steel housing material
  • Suitable for both indoor and outdoor use in rugged industrial environments

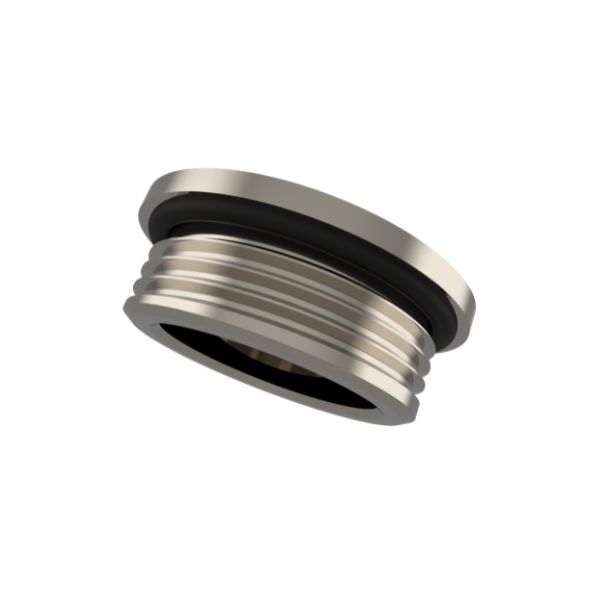

  • Silicone or NBR O-ring giving a wide operating temperature range
  • High protection against dust, moisture, and water ingress
  • Wide variety of both metric and PG thread sizes

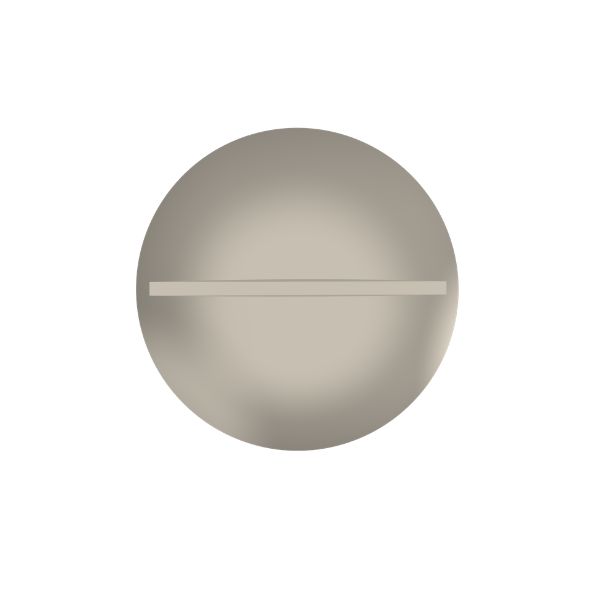

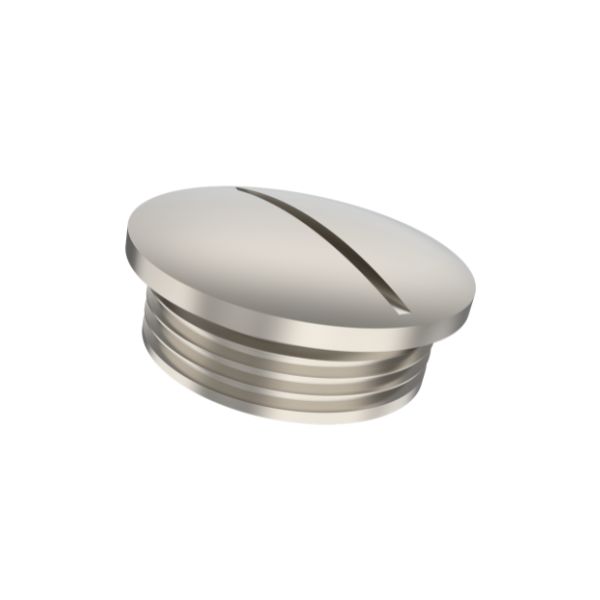

  • Durable design with quick and easy flathead / slotted head for torquing

M12-M63 / PG 7-PG 48

IP66/67/68 Rated

IP 68 – 5 Bar, 30 min

Thread Length up to 10mm

Plug diameter up to 66mm

NBR-20°C to +100°C  Silicone -60°C to +140°C

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Thread Size
Thread Length (mm)
Outer Ø (mm)
Max. Height (mm)
ITSR-0SM M12x1.5 6 15 2.5
ITSR-01M M16x1.5 7 19 3
ITSR-02M M20x1.5 8 23 3
ITSR-03M M25x1.5 8 29 4
ITSR-04M M32x1.5 9 36 4
ITSR-05M M40x1.5 9 44 4
ITSR-06M M50x1.5 9 54 5
ITSR-07M M63x1.5 10 69 6
ITSR-01P PG 7 6 16 3
ITSR-02P PG 9 6 19 3
ITSR-03P PG 11 6 22 3
ITSR-04P PG 13.5 6.5 24 3
ITSR-05P PG 16 6.5 26 3
ITSR-06P PG 21 7 33 4
ITSR-07P PG 29 8 42 4
ITSR-08P PG 36 9 52 6
ITSR-09P PG 42 10 59 6
ITSR-10P PG 48 10 66 6
IP Rating IP 68 - 5 Bar, 30 min,
Thread Options M12-M63 / PG 7-PG 48
Body Material Stainless steel or Nickel Plated Brass
O-Ring Nitrile Butadiene Rubber or Silicone
Operating Temperature NBR -30°C to +100 °C / Silicone -60 °C to +140 °C
Head Type Flathead

Specifications subject to change without notice.
