Balances internal pressure in batteries, reducing the risk of damage and explosion.








Battery Ventilation & Safety Devices

Home - Connectivity - Cable Glands, Junction Boxes & Vents - Battery Ventilation & Safety Devices

Venting and auto burst plugs

Battery ventilation components made with Glass Fiber reinforced Nylon (PA66) and a stainless steel inner. Designed to prevent a dangerous build up of gasses within the battery reducing the risk of explosion, fire and damage. Offering continuous ventilation and a burst safety function, the vents perform excellently under vibration and are able to resist the ingress of water, dust and other contaminants. They are suitable for high pressure cleaning and applications where frequent washing is necessary.

These products meet protection classes IP66, IP67, IP68 and IP69K, while optimising the lifetime of Li-ion batteries and providing safety in case of an explosion, suitable for use in applications such as electric vehicles, electric trains and stationary batteries for energy storage.

Use the Bimed VentCalculator to work out your required pressure compensation.
  • IP66, IP67, IP68, IP69K prevents the ingress of water, dust, and other contaminants into the battery
  • Balances internal pressure in batteries, reducing the risk of damage and explosion
  • Balanced pressure prevents excessive stress on battery gaskets, extending their service life
  • Includes a safety burst system that activates in cases of overpressure or thermal events
  • Ingress protection from dust, water, and other contaminants
  • Provides reliable sealing performance even under vibration
  • Suitable for high-pressure cleaning and frequent washing applications

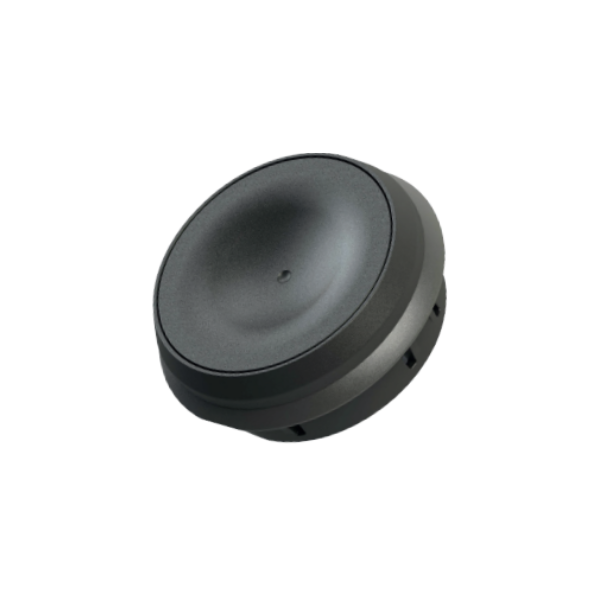

  • While the ARVSD and VSD-AR models offer both continuous ventilation and a burst safety function, the ARSD model provides only the burst function

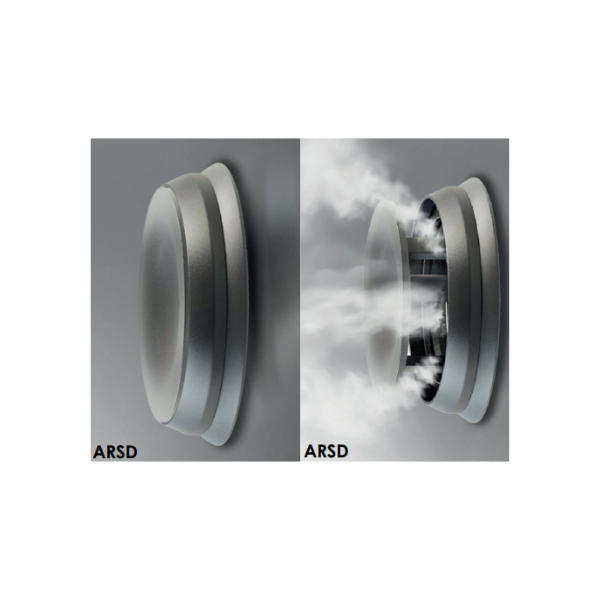

  • All versions (ARVSD, VSD-AR, and ARSD) feature an emergency burst function, opening automatically when internal pressure increases and closing when pressure drops, ensuring safe and controlled operation
  • ARVSD and VSD-AR provide a burst function along with ventilation, while ARSD provides only a burst function

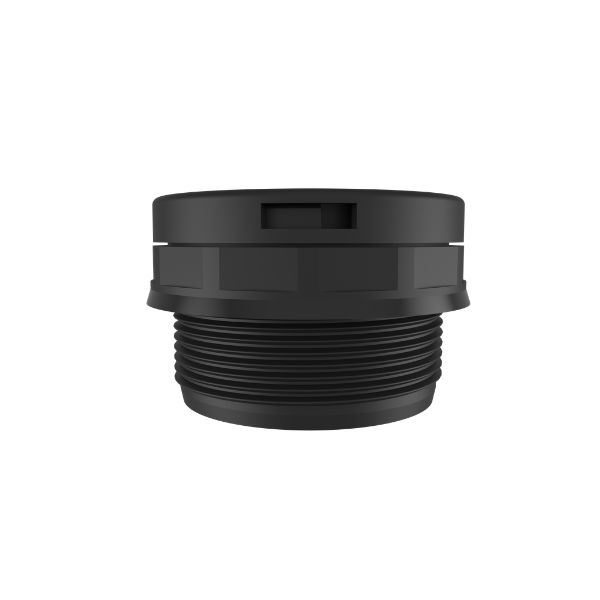

M40 / M50 / Snap-In

IP66/67/68 Rated

IP66 / IP67 / IP68 / IP69K

Burst Case (L/sec) 135/250

-40 °C to +90 °C

UL94-V0

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Thread Size
Air Flow Rate (L/hr)
Gas Flow at 500mbar (L/sec)
Water Intrusion Pressure (BAR)
Opening Pressure (BAR)
Outer Diameter (mm)
Height (mm)
Datasheet
ARSD-M50-100 M50x1.5 N/A 250 ≤5 100 ± 50 59-65 24 Battery Safety Plugs

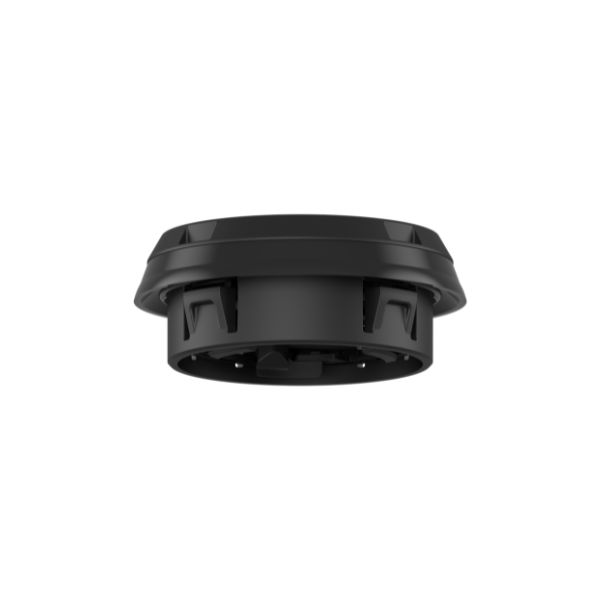

ARSD-050-100 50mm Snap In N/A 250 ≤5 100 ± 50 59-65 24 Battery Safety Plugs
ARVSD-M50-100 M50x1.5 400 250 ≤200 100 ± 50 59-65 24 Battery Safety Plugs
ARVSD-050-100 50mm Snap In 400 250 ≤200 100 ± 50 59-65 24 Battery Safety Plugs
VSD-AR-M40-100 M40x1.5 400 135 ≤200 100 ± 50 47.5-50 29.2 Battery Safety Plugs
Housing Material Glass fiber reinforced Nylon (PA66)
IP Rating IP66 / IP67 / IP68 / IP69K
Thread M40 / M50 / 50MM Snap-In
Vent membrane material PTFE
Seal Material Vinyl Methyl Silicone
Vibration tested ISO16750
Flammability V0 UL 94
Industrial Enclosure Rating NEMA 4X, 12, 13

Specifications subject to change without notice.
