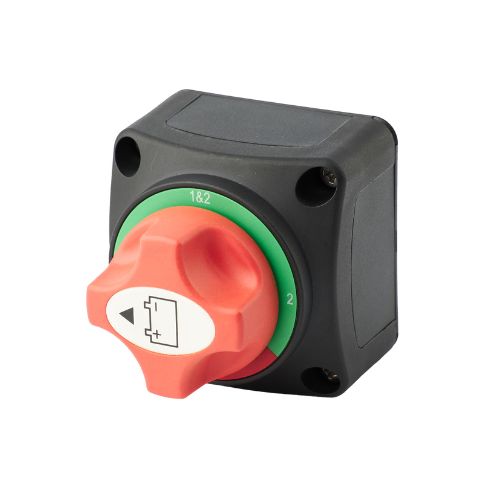

Battery Isolation A23-3

Home - Switches & Indicators - Isolation Switches - Battery Isolation A23-3

A UL94V-0 compliant IP68 above panel battery Isolation switch with a continuous rating of 100A for above panel mounting. A removable front knob acts as a safety feature to help prevent incorrect and dangerous switching. Switchable in Four positions, Off, Battery one on, Battery one and two on plus battery two on.
  • Reliable 100A battery switch suitable for panel mount with removable safety knob
  • Fully rated to IP68 for maximum protection against dust and water
  • Robust housing compliant with UL94V-0 flame-retardant standards
  • Quick and secure power disconnection for peace of mind in an emergency
  • Suitable for marine and vehicle battery systems, ON/OFF control

12-50 VDC

100A continuous

Off / 1 / 1&2 / 2

IP66/67/68 Rated

IP68

UL94V-0

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
Max. Voltage Rating 12-50 VDC
Continuous Rating 100 Amps
Intermittent Rating 300 Amps
Cranking Current (30 seconds) 1000 Amps
Operation Off / 1 / 1&2 / 2
Protection Rating IP68
Terminal Stud Size 5/16"
Pitch 18 UNC

Specifications subject to change without notice.
