USB-A and USB-C panel mount sockets for charging of mobile devices

USB power chargers designed for panel installation in automotive, specialist vehicles and marine applications for charging of portable USB enabled devices such as mobiles phones and tablets. They feature over-voltage, over-current and temperature control protection to prevent devices from overload damage.

With a variety of port configurations including USB-A 2.4A and USB-C and up to 45W PD (Power Delivery) they are suitable for rapid charging and usage of larger USB, more hungry USB devices e.g. laptops. The USB chargers are powered by 12 / 24 VDC input via 6.35mm / 0.25in faston tabs.

Sized for standard 29mm panel cutout, with an included rubber dust/splash proof cover for optional use and additional environmental protection, the mounting thread features two flats for anti-rotation when installed drilled accordingly.

  • USB-A & USB-C / USB-C / Dual USB-C
  • USB-A 2.4A / USB-C up to 45W Power Delivery
  • For rapid charging of mobile devices
  • Ideally suited for automotive, commercial/specialist and marine uses
  • Integrated protection for over-voltage, over-current and temperature
  • Standard 29mm panel size
  • Blue LED indicator / illumination
  • Included dust/splash proof cover for optional use and protection
  • Moulded in black plastic for a clean aesthetic in application

USB-A 2.4A / USB-C PD

29mm panel mount

1 – 2 Ports

Max 45W PD

In 12/24 VDC

Download DatasheetView Related Products

Swipe to Browse

  • Specifications
  • Standard Parts
Part Number
Port 1
Port 2
Temperature Rating
Datasheet

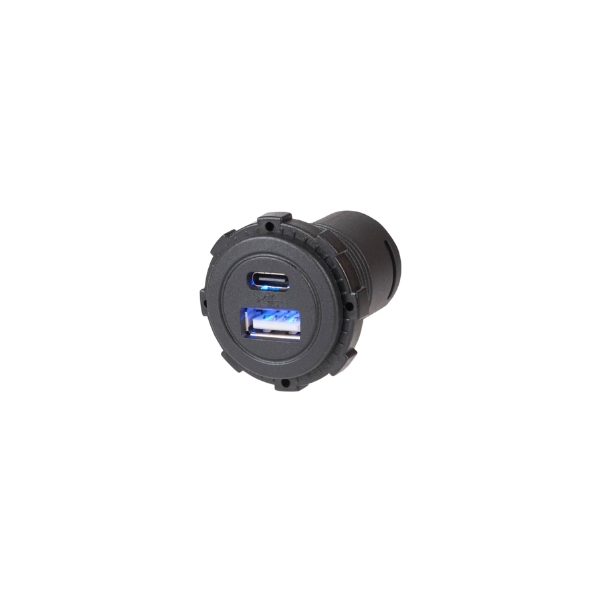

A13-253B-B3A USB-A 2.1A USB-C 2.1A -30°C to +45°C

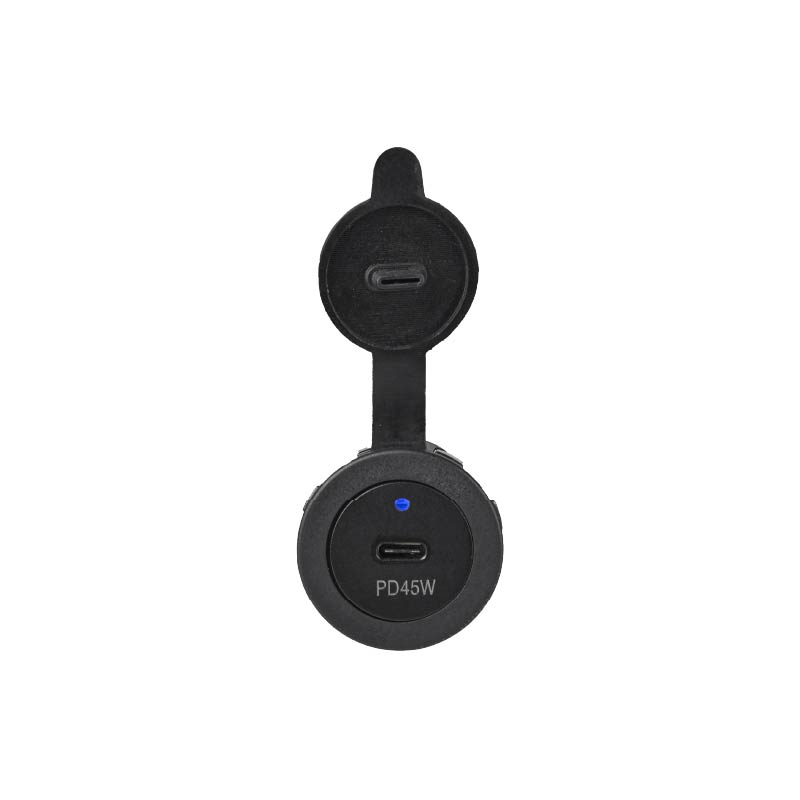

A13-266C45-CL-B3 USB-C 45W PD N/A -30°C to +65°C

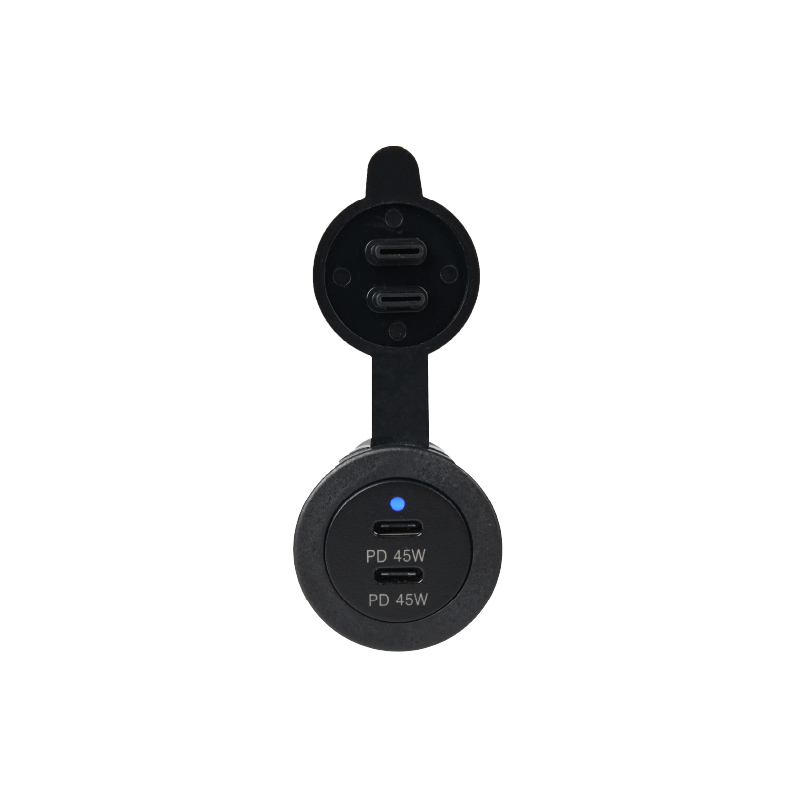

A13-266CC90-CL-B3 USB-C 45W PD USB-C 45W PD -30°C to +65°C

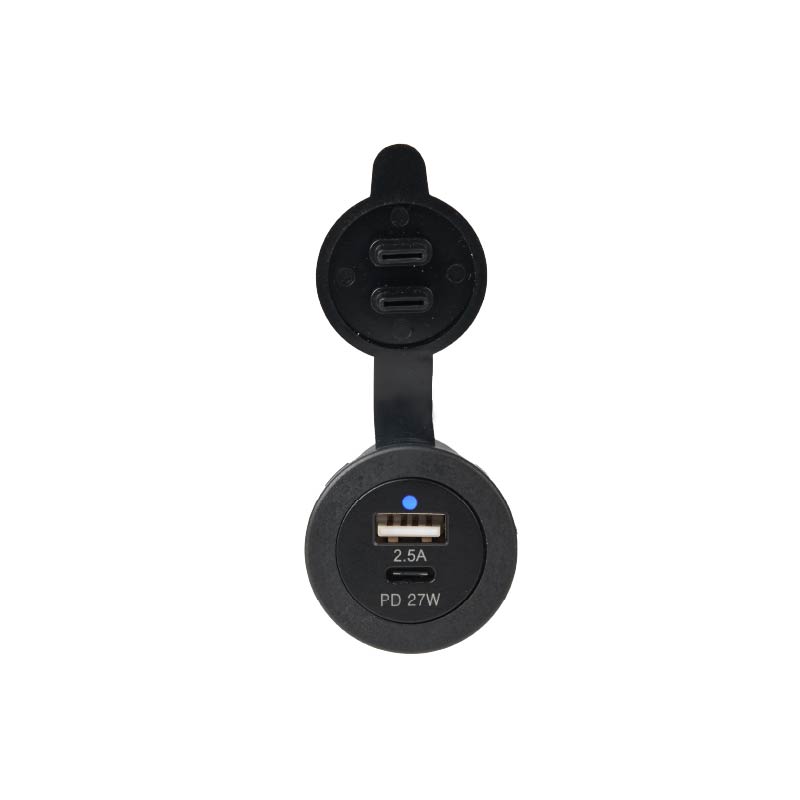

A13-266AC27-CL-B3 USB-A 2.5A USB-C 27W PD -30°C to +65°C
Connection Type USB-A 2.4A / USB-C 27W PD / USB-C 45W PD
Ports 1 (USB-C) or 2 (USB-C & USB-C / USB-A & USB-C)
Input Voltage 12VDC / 24VDC
Wiring Connection 6.35mm Faston Tabs
Protection Over-voltage, over-current and temperature
Body Colour Black
Dust / Splash Cover Rubber cover included for optional use
Panel Cutout 29mm
Fixing Rear panel with locknut

Specifications subject to change without notice.
