Waterproof seat adjustment switch

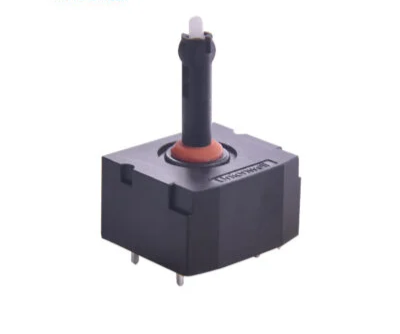

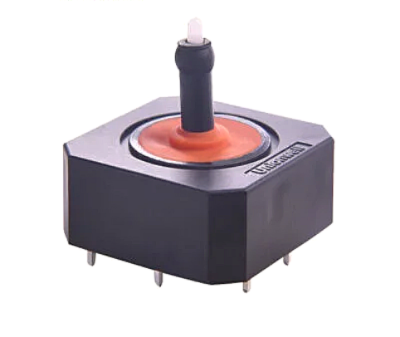

Two and four way waterproof seat adjustment switches. The Push button is mechanical in nature, Actuators can be tailored specifically for a customers requirement. The switch offers a tight operating structure with a high performance spring giving a sensitive switching feel and a long service life. Ideal for construction, agricultural, off road and commercial vehicles.
- High performance spring and sensitive switch action
- Electrical rating from 15A 14VDC
- Actuator options to suit customer needs
- Operating temperature range up to -40 to 85°C
- PCB (THT)
- Electrical service life min. 30,000 operations
- Mechanical service life min. 50,000 operations
- ENEC and UL certified for worldwide use
15A 14VDC
S.P.D.T.
-40 to 85 °C
IP67
Ideal for agricultural Applications
Download DatasheetView Related Products
Swipe to Browse
- Specifications
- Standard Parts
|
Part Number
|
Electrical Rating
|
Operating direction
|
Operating Position
|
Operating Lever Length
|
Ingress Protection
|
Mechanical life
|
Electrical life
|
Circuitry
|
Datasheet
|
|---|---|---|---|---|---|---|---|---|---|
| G19-154MRA1AAU | 15A 14VDC | 4 Way | Central | 22mm | IP67 | 50,000 cycles | 30,000 cycles | SPDT | |
| G19-152MRC1AAU | 15A 14VDC | 2 Way | Central | 25.6mm | IP67 | 50,000 cycles | 30,000 cycles | SPDT | |
| G19-152LRC1AAU | 15A 14VDC | 2 Way | Left Side | 25.6mm | IP67 | 50,000 cycles | 30,000 cycles | SPDT |
|
Characteristic
|
Seat adjustment
|
|---|---|
| Electrical Rating | 15A 14VDC |
| Circuitry | SPDT |
| Ingress Protection | IP67 |
| Termination | PCB (THT) |
| Agency Approvals | ENEC, UL |
| Operating Force | 100 +- 30gf |
| Operating Temperature | -40 to +85 °C |
| Electrical Service Life | min. 30,000 operations |
| Mechanical Service Life | min. 50,000 operations |
| Contact Resistance (initial) | max. 20m Ohm |
| Insulation Resistance (initial) | min. 100M Ohm |
| Operating frequency | 10 cycles per minute |
Specifications subject to change without notice.
